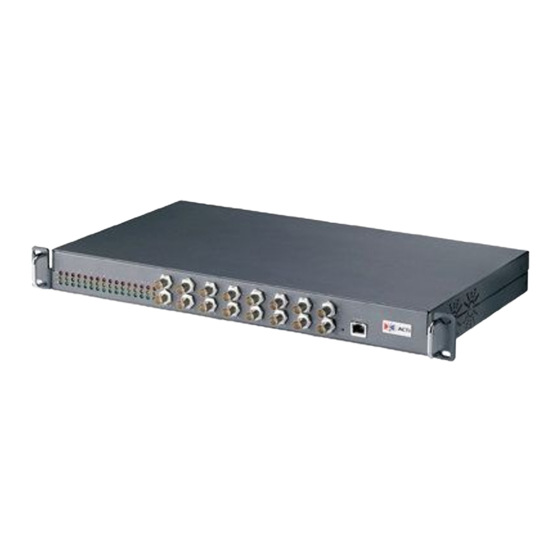

- Page 1 16-channel MPEG-4 1U Video Encoder ACD-2400 User’s Manual Ver.080331...
-
Page 3: Copyright
Copyright This manual is the intellectual property of ACTi and is protected by copyright. All rights are reserved. No part of this document maybe reproduced or transmitted for any purpose by any means including electronic or mechanical without the official written permission from ACTi. -
Page 4: Fcc/Ce Regulation
typographical or technical errors and reserve the right to make changes to the product and manuals without prior notice. FCC/CE Regulation NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. -
Page 5: Table Of Contents
Table of Contents PRECAUTIONS________________________________________________ 0-1 Copyright __________________________________________________________________ 0-1 Trademarks ________________________________________________________________ 0-1 Liability ___________________________________________________________________ 0-1 FCC/CE Regulation __________________________________________________________ 0-2 INTRODUCTION ______________________________________________ 1-4 Package Contents _______________________________________________ 1-4 Features and Benefits ____________________________________________ 1-5 Safety Instructions ______________________________________________ 1-7 Physical Description _____________________________________________ 1-9... -
Page 6: Introduction
INTRODUCTION 1.1 Package Contents ACD-2400 Warranty Card Product CD Terminal Blocks Power Cord Bracket... -
Page 7: Features And Benefits
1.2 Features and Benefits The 16-channel MPEG-4 1U Video Encoder is a cutting-edge digital video transmission device. It can compress and transmit 16 channels of real time images with outstanding images quality (D1, 720x480) at reasonable bandwidth through a standard TCP/IP network. This 16-channel MPEG-4 1U Video Encoder also provide two-way audio streams along with each video channel. - Page 8 The 16-channel MPEG-4 1U Video Encoder supports DDNS (Dynamic Domain Name Server), users can set the 16-channel MPEG-4 1U Video Encoder at a virtual domain name (such as cam1.Taipei.xxx) at dynamic IP. Everyone can use the virtual domain name to view the video anywhere that has the access to the internet. Build-in Hardware Motion Detection No more external motion sensors are required.
-
Page 9: Safety Instructions
1.3 Safety Instructions Don’t use the power supply with other voltages This device is likely to be damaged or damage other equipments / personnel, if you use a power supply with different voltage than the one included with this device. All warranty of this product will be voided in the situations above. - Page 10 If the video product does not operate normally by following the operating Instructions in this manual. Adjust only items instructed in the operation manual as they are proper adjustment. Other adjustment may result in damage and will often require extensive work by a qualified technician to restore the video product to its normal operation.
-
Page 11: Physical Description
1.4 Physical Description Channel Number Action LED Indicator The LED will light up after this video channel has successfully completed the boot process. LAN LED Indicator The LEDs indicating when this video channel is transmitting data. Serial Port LED Indicator LEDs indicating when serial port is active. - Page 12 AC Power Input 100-240V AC 50/60Hz Power Input. Power Switch 16-channel MPEG-4 1U Video Encoder power switch. 10. Terminal Blocks The 16-channel MPEG-4 1U Video Encoder supports two alarm input and two alarm output. DI: Logic Level 0: 0~0.4V; Logic Level 1: 3.3~30V DO: Logic Level 0: 0.1~0.6V;...
- Page 13 AUDIO OUT Audio Output AUDIO GND Audio Ground Pin AUDIO IN Audio Input * RS-232 mode requires user to set the jumpers inside the 16-channel MPEG-4 1U Video Encoder. Bcause opening the 16-channel MPEG-4 1U Video Encoder will void the warranty, please contact your distributor for how to switch to RS-232 mode.
