Plugs Type 1; Plugs Type 2 - Aquabot Robotic Pool Cleaner Operating Instructions Manual

Operating the pool cleaner

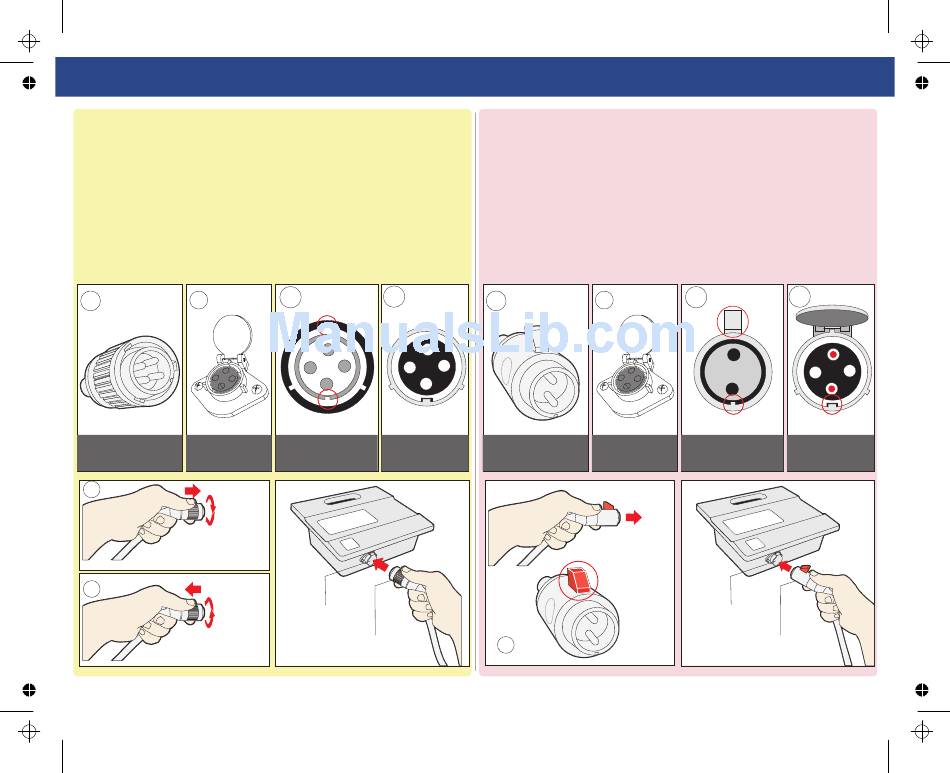

Plugs Type I
To plug the cable (Fig A) into the socket on the power supply (Fig. B), please do the
following:
1.Prepare the plug as seen in (Fig. C) with the key and 3 outside slots exactly as shown.
2.Fit exactly the key and the slots from cable plug with the corresponding key and slots
from the power supply socket. (Fig. D)
3.Push the plug into the socket of the power supply all the way in.
4.Once the plug is in, rotate the plug to the right to lock it into place (Fig. E).
5.To remove the plug, first rotate the plug to the left to unlock it, then pull it out (Fig. F).
A
B
cable
power supply
plug
socket
E
Push and rotate
right to lock
F
Rotate left and
pull to unlock
C D
slot slot
key key
cable
power supply
plug
socket
Socket (B)
Cable plug (A)
Plugs Type II
To plug the cable (Fig A) into the socket on the power supply (Fig. B), please do the
following:
1.Prepare the plug as seen in (Fig. C) with the key and the riser exactly as shown.
2.The riser should face up (Fig. E) in order to keep the socket cap open. The cap will lock
the cable in place.
3.Fit exactly the key with the corresponding key slot from the power supply socket.
Although the socket has 4 holes, only the top and the bottom one will be used (Fig. D)
4. Push the plug into the socket of the power supply all the way in. After inserting the plug
all the way, the cap should be pressed on it to secure it.
5. To remove the plug, you need to lift the cap, and then pull.
A
B
cable
power supply
plug
socket
THIS
SIDE UP
E
4
cap
C D
riser
key key
cable
power supply
plug
socket
Socket (B)
Cable plug (A)
