Summary of Contents for Aquabot Robotic Pool Cleaner

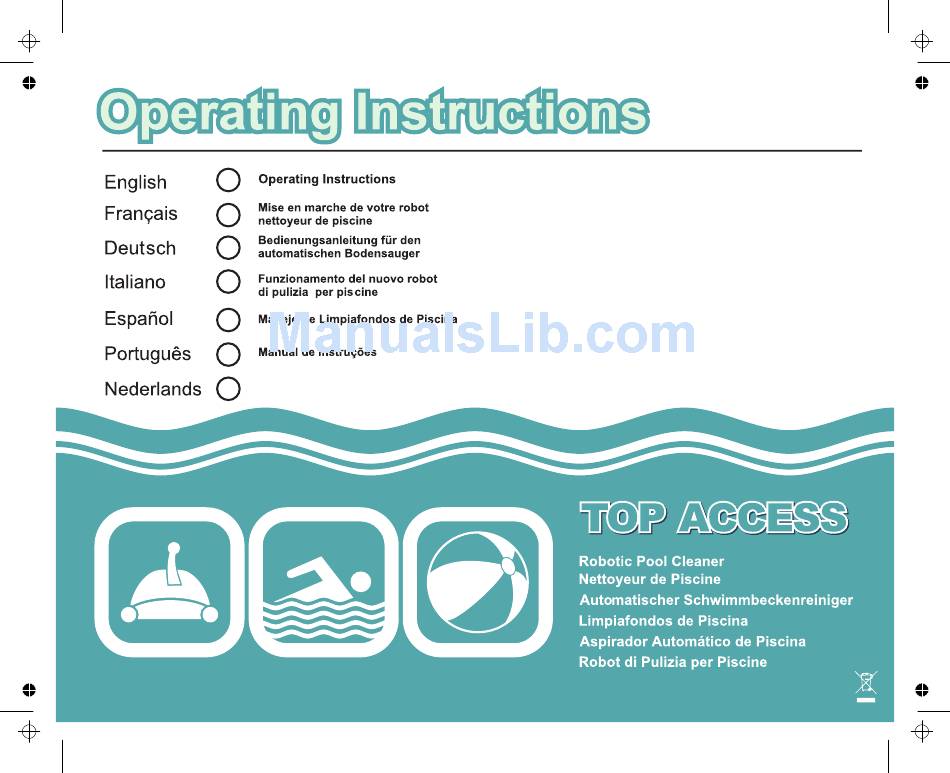

- Page 1 Bedieningsinstructies Robot Zwembadreiniger BK 0012500 / REV PC...
- Page 2 Your new automatic pool cleaner contains: WARNING: A Ground Fault Current Interrupter (GFCI-USA) or a Residual Current - The robotic pool cleaner with its floating cable. - The Power Supply (transformer). Device (RCD-EUROPE) must be installed to protect your electric outlet and prevent - Cart (optional) any possible electric shock.
- Page 3 Operating the pool cleaner 1. Place the power supply (transformer) at least 3.6 meters / 11.8 feet from the pool and at 4. Place the unit in the water. Turn the unit least 12 cm / 4 Inch above the surface (fig.1). The transformer will supply low voltage to side to side in the water to allow air to the cleaner.
- Page 4 Operating the pool cleaner Plugs Type I Plugs Type II To plug the cable (Fig A) into the socket on the power supply (Fig. B), please do the To plug the cable (Fig A) into the socket on the power supply (Fig. B), please do the following: following: 1.Prepare the plug as seen in (Fig.
- Page 5 Operating the pool cleaner a. Power LED The blue LED flashes when the power supply is in standby mode and lights continuously when the pool cleaner is operating.The power button switches between ON and STANDBY b. "POWER" button The button switches between "ON" and "STANDBY". IMPORTANT- After every cycle the pool cleaner will automatically go to "standby".
- Page 6 Maintenance and adjustment Adjusting the suction valve: IMPORTANT TIPS: In order to increase suction power, the valves located underneath your cleaner can be adjusted by pulling out the rim of the valve. Shut off and unplug the power supply every time you remove the cleaner from the Before lowering the rim of the valve, make sure there is enough clearance and the unit water.
- Page 7 Troubleshooting Guide PLEASE CHECK THE FOLLOWING BEFORE CALLING YOUR SERVICE CENTER Before troubleshooting, the pool cleaner must be disconnected from the power supply and the power supply must be unplugged from the electrical outlet to prevent damage to the unit and possible personal injury. 1.
- Page 8 Grounding The power supply must be connected to a grounded 3 conductor socket. The mains power supply must be connected via a GFCI (ground fault circuit interrupter) or RCD (residual current device) having a rated residual operating current not greater than 30mA. Fuse The fuse must be changed by an authorized service agent or trained and qualified person only.
- Page 9 External Timer Externen Timer Timer Esterno Capacidad Capacidade Capacité de Externe timer Capability Minuteur Externe Funktion Capacità Temporizador Externo Temporizador Externo Capaciteit This feature will enable the Ce robot nettoyeur de D i e s e r r o b o t i s c h e Questo robot per la pulizia Este robot limpiador de O robô...
- Page 10 Model-300 / Model-400 POWER SUPPLY with Aquacontrol System ALIMENTATION avec système Aquacontrol SUMINISTRO DE CORRIENTE con sistema Aquacontrol STROMVERSORGUNG mit Aquacontrol System TRASFORMATORE con sistema Aquacontrol FONTE DE ALIMENTAÇÃO com o sistema Aquacontrol STROOMVOORZIENING met Aquacontrol systeem BK 0011900 / PC...
- Page 11 AQUACONTROL Aquacontrol è un pannello di controllo esclusivo che comunica Aquacontrol direttamente con il robot. Consente la possibilità di programmare il Overlay tempo di funzionamento in modo che la piscina possa essere sempre pulita secondo le preferenze. Se si preferisce non selezionare questa funzione, il robot funzionerà...
- Page 12 Aquacontrol MODELS page Swivel Check filter Pivot Vérifiez le filtre PROGRAM Model - 300 Swivel Revise el filtro Drehlager Filter uberprufen page Manopola di Controllare il Aquacontrol disattorcigliamento sacchetto filtrante PROGRAM Swivel Verifique o Filtro HIGH Super Smart Cleaning program External timer page Mode nettoyage...
- Page 13 Model 300 - Aquacontrol Super Smart Premium ENGLISH Swivel Check filter Pivot Vérifiez le filtre PROGRAM Swivel Revise el filtro Drehlager Filter uberprufen Manopola di Controllare il disattorcigliamento sacchetto filtrante PROGRAM Swivel Verifique o Filtro HIGH Cleaning program External timer Mode nettoyage Minuterie externe Programa de limpieza...
- Page 14 Model 400 - Aquacontrol Super Remote ENGLISH Auto detect Pool shape Auto detection Forme de piscine PROGRAM Auto detección Forme de la piscine Automatische erkennung Beckenform Auto diagnosi Forma piscine Detecção automática Forma da piscina Swivel Cleaning program HIGH Pivot Mode nettoyage PROGRAM Swivel...
- Page 15 Physical Physikalische Daten Dimensions (W * D * H) 273mm * 242mm * 90mm Abmessungen (B * T * H) 273mm * 242mm * 90mm Weight 1.9 Kg Gewicht 1.9 Kg Electrical Elektrische Daten Input rating 100-240V~, 50/60Hz, 210W Eingangsspannung 100-240V~, 50/60Hz, 210W Output rating 29V ,6.3A.
- Page 16 Wireless Remote Control - R/C Model Les Models A Télécommande Modell mit Fernbedienung Modello Radiocomandato - R/C Modelo de control remoto Modelo com Controlo Remoto Sem Fio Nederlands Afstandbediening eenheid Instructies...
- Page 17 NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
-
Page 18: Remote Control Unit
English USING THE REMOTE CONTROL Matching the Remote Control Unit to the Power Supply: The Remote Control Model is provided with a It is important to match the remote control radio control transmitter. This feature will transmitter to the power supply. This unique enable you to directly guide the robot to any identification prevents other transmitters in the part of the pool. - Page 19 To replace the battery: REPLACING THE BATTERY 1. Unscrew the 6 screws securing the back cover of the unit using a № 1 Philips screwdriver. The battery installed in the remote control can 2. Remove the battery and dispose of safely. last several years.
