GENERIC 5SW
Installation / Configuration Manual
T150 Transmitter
R160 Receiver
Revised February 9, 2007
Version 7
DMAN - xxxx - xx
#74-1833 Coast Meridian Road, Port Coquitlam, BC, Canada • V3C 6G5
Ph# (604) 944-9247 • Fax# (604) 944-9267
Toll Free 1-800-663-8806
www.omnexcontrols.com
call toll free: 1-800-663-8806
DMAN-xxxx-xx (Rev x.x)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Generic 5SW and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Omnex Generic 5SW

  • Page 1 GENERIC 5SW Installation / Configuration Manual T150 Transmitter R160 Receiver Revised February 9, 2007 Version 7 DMAN - xxxx - xx #74-1833 Coast Meridian Road, Port Coquitlam, BC, Canada • V3C 6G5 Ph# (604) 944-9247 • Fax# (604) 944-9267 Toll Free 1-800-663-8806 www.omnexcontrols.com...
  • Page 2: Table Of Contents

    Table of Contents System Overview ............................. 3 Features ..............................3 T150 Dimensions and Controls ......................... 3 Installing the Receiver..........................4 Special Functions............................5 Installation Considerations ........................5 Power the Transmitter..........................6 Test the Transmitter / Receiver Link......................6 Download ID Code............................ 7 Calibrating Proportional Controls ......................
  • Page 3: System Overview

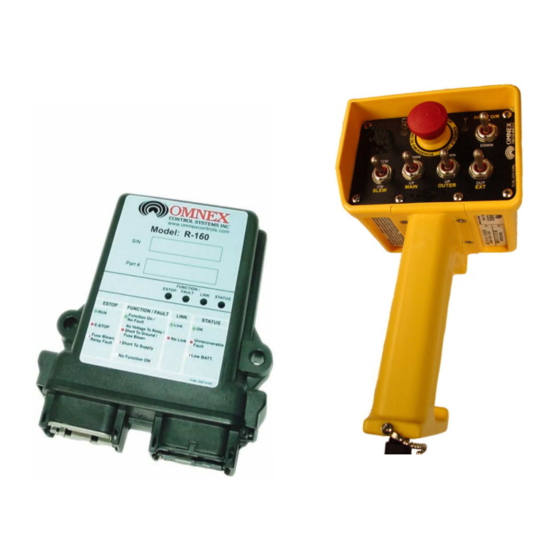

    System Overview The ORIGA T150 / R160 is a portable, long range, programmable radio remote control system. Designed as a compact and easy-to-use product, this member of the ORIGA family puts complete control of your crane where it’s needed most, with the operator.
  • Page 4: Installing The Receiver

    R160 Output Cables can be provided with every system to simplify the wiring proc- ess. The Wire Color column below only applies to the OMNEX Output Cable configuration. Tips on mounting, power connections and filtering are also provided under Installation Considerations.
  • Page 5: Special Functions

    The FCC and ISC require that the antenna be restricted to that supplied by the manufacturer and approved for use with this product. An op- tional 0dB coax wire antenna may be supplied. For other antenna options, please contact OMNEX Control Systems ULC Mounting and Installation The receiver can be mounted by fastening two ¼”...
  • Page 6: Power The Transmitter

    Power the Transmitter When the receiver has been installed, install batteries into the transmitter and turn it on as explained below. 1. Install Batteries Remove the battery cover on the back of the transmitter using a slotted screwdriver and insert 4 "AA" alkaline batteries.
  • Page 7: Download Id Code

    Download ID Code (Use in case of Link Test failure) Follow these steps to download the transmitter’s unique ID Code into the receiver. This will allow the receiver to establish a radio link with that transmitter. Refer to the Light Legend below for diagram details. Refer to Troubleshooting Chart #4 for Tips and Considerations NOTE: It is necessary to download the ID Code when replacing either the transmitter or the receiver.
  • Page 8 Download ID Code (Use in case of Link Test failure) 4. Put R160 into Setup Mode A. Press & hold [Setup] button until (Status) light goes from slow flash to fast flash Setup Setup ESTOP FAULT LINK STATUS ESTOP FAULT LINK STATUS Button Button B.
  • Page 9: Calibrating Proportional Controls

    Calibrating Proportional Controls The transmitter’s trigger controls the receiver’s proportional output. The trigger is used in conjunction with any of the transmitter’s switches. The proportional output can be activated when a switch is held UP or DOWN; it will become active at an increasingly high level as the trigger is pulled.
  • Page 10: Diagnostics-T150 Transmitter

    Diagnostics—T150 Transmitter Tether connection detected Low battery. Unit will run approximately 10 hours after Battery light starts flashing. Flashing rapidly for 10 seconds indicates a transmitter failure. Normal Operation The Active light will flash several times per second, indicating that the transmitter is sending signals to the receiver.
  • Page 11: Diagnostics-R160 Receiver

    Diagnostics - R160 Receiver Normal Operation FAULT LINK ESTOP STATUS Transmitter is OFF If the transmitter is off, the receiver is operating properly. Transmitter is ON ESTOP FAULT LINK STATUS When the transmitter is turned on, the Link light (fast flashing) and E-Stop (GREEN) indicates the receiver is operating properly Transmitter is in Operation FAULT...
  • Page 12: Troubleshooting Guide

    Troubleshooting Guide Chart #1 Test the Receiver—R160 OK state: Start Status—GREEN Initial Condition: Link—RED What is the state Turn transmitter off (all lights are off—press the Fault—OFF of the lights on E-Stop button) E-Stop—RED the receiver? Cycle power to receiver (turn off and back on) Note: If there is a short to ground on an output, it is not indicated at this stage.
  • Page 13 Troubleshooting Guide (con’t) Chart #2 Test the Transmitter—T150 Turn off the receiver Ensure there are good batteries in the transmitter Turn on the transmitter OK state: Active light—steady for Activate a about 3 seconds then What is the state of function goes to fast flash.
  • Page 14 Troubleshooting Guide (con’t) Chart #3 Testing the Transmitter / Receiver Communication Transmitter: Transmitter: Active light is flashing Active light is flashing Receiver: What is the status of Receiver: Status—GREEN the lights of both the Status—GREEN Link—RED transmitter and Link—Flashing GREEN Fault—OFF receiver? Fault—OFF...
  • Page 15 Troubleshooting Guide Chart #4 Considerations when Downloading the ID Potential downloading issues If testing of the receiver and transmitter both show the system as working (Chart 1 & 2), then the transmitter and receiver will both go into Download/Configuration mode. Possible issues could arise during Step 4, the download phase of reprogramming.
  • Page 16: Parts & Accessories
