GENERIC 6SW
User Installation / Configuration
Manual
T150 Transmitter
R170 Receiver
June 12, 2006
Version 1
DMAN - XXXX-XX
#74-1833 Coast Meridian Road, Port Coquitlam, BC, Canada • V3C 6G5
Ph# (604) 944-9247 • Fax# (604) 944-9267
Toll Free 1-800-663-8806
call toll free: 1-800-663-8806
www.omnexcontrols.com
DMAN-xxxx-xx
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the T150 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Omnex T150

  • Page 1 GENERIC 6SW User Installation / Configuration Manual T150 Transmitter R170 Receiver June 12, 2006 Version 1 DMAN - XXXX-XX #74-1833 Coast Meridian Road, Port Coquitlam, BC, Canada • V3C 6G5 Ph# (604) 944-9247 • Fax# (604) 944-9267 Toll Free 1-800-663-8806 call toll free: 1-800-663-8806 www.omnexcontrols.com...
  • Page 2: Table Of Contents

    Test the Transmitter / Receiver Link..................... 6 Download ID Code ........................6 Special Features........................... 8 Using the R170 in Wired Mode..................... 9 Diagnostic T150 Transmitter ...................... 10 Diagnostic R170 Receiver ......................11 Troubleshooting Guide ....................... 12 Parts and Accessories........................ 16 Specifications ..........................
  • Page 3: System Overview

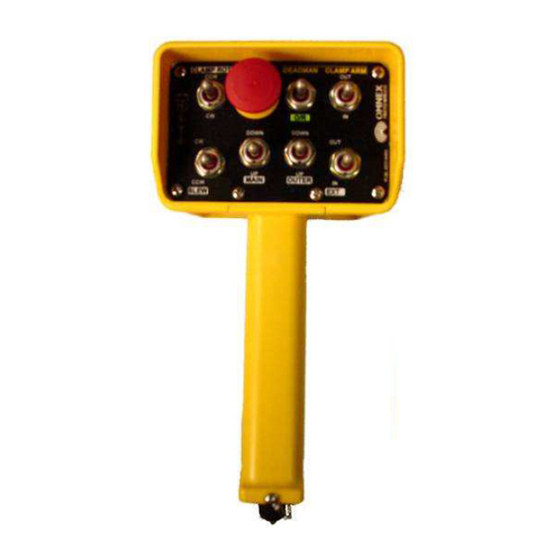

    The T150 transmitter comes with 4 to 6 switches and an optional proportional trigger control. It uses standard, long lasting AA batteries. Each T150 transmitter uses a unique ID code to ensure that no two systems will conflict at a job site.
  • Page 4: R170 Pin Assignments

    There are two connectors on the R170. Connector A is Grey, while Connector B is Black. The appropriate pre- terminated cables for connection to the R170 are available from OMNEX. For reference, the pin functions for both con- nectors are provided below:...
  • Page 5: Installation Considerations

    The FCC and ISC require that the antenna be restricted to that supplied by the manufacturer and approved for use with this product. An op- tional 0dB coax wire antenna may be supplied. For other antenna options, please contact OMNEX Control Systems ULC Mounting and Installation The receiver can be mounted by fastening two ¼”...
  • Page 6: Test The Transmitter / Receiver Link

    The R170 requires a transmitter ID from an OMNEX wireless transmitter before it can be operated. The R170 can only hold a single transmitter ID; if another ID is downloaded then the new ID will overwrite the previous ID. OMNEX transmit- ter IDs are unique, ensuring that the R170 will only respond to the correct transmitter.
  • Page 7 Downloading the Transmitter ID 3. Power T150 into Configuration Mode A. Hold [SW-5] switch UP B. Press [E-Stop] C. Twist Clockwise & release [E-Stop] D. Release [SW-5] Switch 4. Setting R170 into Configuration Mode A. Press and hold [SW 1] on the front of the...
  • Page 8: Special Features

    Special Features call toll free: 1-800-663-8806 www.omnexcontrols.com DMAN-xxxx-xx...
  • Page 9: Using The R170 In Wired Mode

    Using the R170 in Wired Mode Under normal operation the R170 will act as a radio receiver, receiving commands from an OMNEX transmitter via a ra- dio link. However, the R170 is also capable of operating in a Wired mode in which a cable is directly connected from the OMNEX transmitter to the R170.
  • Page 10: Diagnostic T150 Transmitter

    Diagnostics—T150 Transmitter Tether connection detected Low battery. Unit will run approximately 10 hours after Battery light starts flashing. Flashing rapidly for 10 seconds indicates a transmitter failure. Normal Operation The Active light will flash several times per second, indicating that the transmitter is sending signals to the receiver.
  • Page 11: Diagnostic R170 Receiver

    Diagnostics - R170 Receiver Normal Operation Indicator Description Lights STATUS LINK Transmitter is OFF If the transmitter is off, the receiver is operating properly. This will be the status of the receiver after the Download ESTOP ID procedure as the transmitter automatically shuts off after ID download. CAN 1 CAN 2 STATUS...
  • Page 12: Troubleshooting Guide

    Troubleshooting Guide Chart #1 Test the Receiver—R170 Start OK state: Initial Condition: Status—GREEN Turn transmitter off (all lights are off—press the What is the state Link—RED E-Stop button) of the lights on E-Stop—RED Cycle power to receiver (turn off and back on) the receiver? CAN 1—GREEN Go to Chart 2...
  • Page 13 Troubleshooting Guide (con’t) Chart #2 Test the Transmitter—T150 Turn off the receiver Ensure there are good batteries in the transmitter Turn on the transmitter OK state: Active light—steady for Activate a about 3 seconds then What is the state of function goes to fast flash.
  • Page 14 Troubleshooting Guide (con’t) Chart #3 Testing the Transmitter / Receiver Communication Transmitter: Transmitter: Active light is flashing Active light is flashing Receiver: What is the status of Receiver: Status—GREEN the lights of both the Status—GREEN Link—RED transmitter and Link—Flashing GREEN E-Stop—RED receiver? E-Stop—GREEN...
  • Page 15 Troubleshooting Guide (con’t) Chart #4 Considerations when Downloading the ID Potential downloading issues If testing of the receiver and transmitter both show the system as working (Chart 1 & 2), then the transmitter and receiver will both go into Download/Configuration mode. Possible issues could arise during Step 4, the download phase of reprogramming.
  • Page 16: Parts And Accessories

    OMNEX's entire liability and your exclusive remedy shall be, at OM- interference received, including NEX's option, either the (a) repair or (b) replacement of the OMNEX product interference that may cause unde- which is returned within the warranty period to OMNEX freight collect by the Tel: 604-944-9247 sired operation.
