Wfly ET07 Summary Manual

ET07
SUMMARY MANUAL
Beginners should pay particular attention to the following safety precautions! Please
read carefully!
It is forbidden to fly when in poor condition such as fatigue and drunkenness.
It is forbidden to fly in bad weather such as rain and gale.
It is forbidden to fly near high voltage lines, communication base stations and places where people gather or activate.
It is forbidden to fly in airports and other places where fly is forbidden.
Before flying, test the equipment, check whether the transceiver system and the aircraft are normal;
When flying, make the interface of transmitter in the initial interface for preventing the change of parameters by mistake;
After flying, turn off the receiver primarily and then turn off the transmitter for protecting people from the fail-safe function.
使用安全注意事项
The sequence of power on and off of transmitter and receiver!
Power on:
First Turn on the transmitter (ensuring the minimum throttle position)
Second Turn on the receiver
Power off:
First Turn off the receiver
Second Turn off the transmitter
Use guaranteed and special charger to charge the battery
Preserve the battery with special case for safety
The electronic product should be dry, use alcohol and special cleaner to clean.
Do not force the vulnerable antenna, or it may destroy.
The screen is vulnerable, do not press firmly or shave with sharp things.
Please take care of the product! It can not be placed under sun or in high temperature, wet or dusty place.
Charge and attentions
ET07 charge with 1S lithium battery. Charge with other kinds of batteries may damage remote control.
Please charge with standard micro USB interface 5V/1.5A power adapter.

After-sales service

Please log in official website: http://en.wflysz.com for detailed information.
Or email us at service@wflysz.com
PRODUCT PARAMETER
Transmitter
Model: Et07
Channel: 10 channels
Working voltage: 3.7V (1S Lithium battery)
Working current: ≤260mA
Applications: Helicopter, Airplane, Multi-Rotors, Vehicle,
Ship
Resolution: Full Channel 4096 Resolution
Band: 2.4GHz (Bidirectional)
Frequency Hopping: New FHSS Frequency Hopping (64
points, 3.6ms)
Storage: 20 models
Programming: 5 Groups Mixed Control
Language: Chinese, English
Upgrade: USB online upgrade
Display: 3.5inch touch, 480*320, TFT color display
Receiver
Model: RF207S
Frequency: 2.4 GHz
Working Voltage: 3.7 V-8.4 V
Working Current: 75 mA
Applications: Helicopter, Airplane, Multi-Rotors, Vehicle,
Ship
Resolution: Full Channel 4096 Resolution
PWM: 7 Channel (Mode A)
PPM: Support
W.BUS: Compatible with S.BUS
W.BUS2: Telemetry Sensor Input
Bidirectional Transmission: Support
Fail Save: Support
Online upgrade: Support
External voltage detection: DC 0-96V
Size: 27×14×51mm
Weight: 14.6g

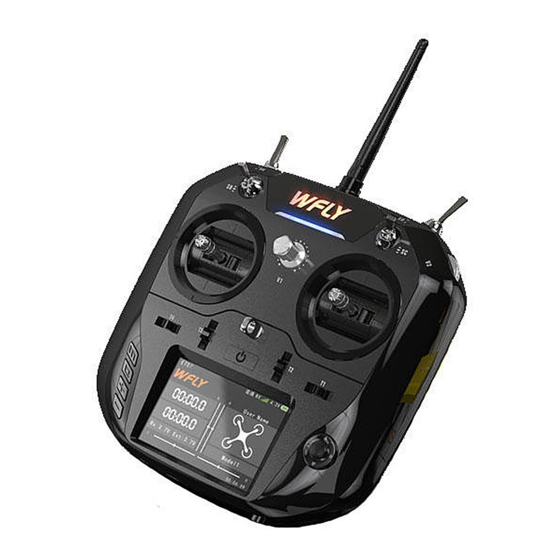

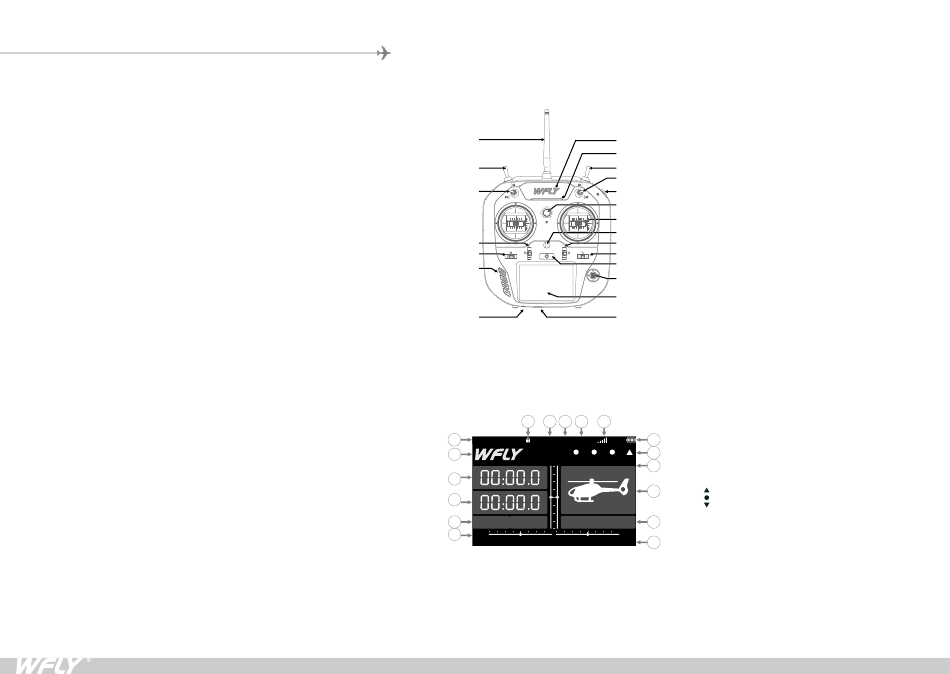

ET07 INTERFACE
Antenna
SA
SB
Trim T3
Trim T4
Function buttons
Trainer interface
17 16 15 14
1 E T07
S I M M IX N O RM RX
T 4 T 3
2
U s er N a m e
0 0
3
4
5 Rx: 5. 0V Ext:12 V M ode l1
6
0
Switch
Power switch: press for about 2 seconds to turn on or turn off.
T1 ~ T4: digital trim (user-defined)
Power light
RF light SA: long lever, 2 positions, alternate (user-defined)
SB: short lever, 3 positions, alternate (user-defined)
SD
SC: short lever, 3 positions, alternate (user-defined)
SD: long lever, 2 positions, momentary (user-defined)
SC
V1: rotary knob (user-defined)
V2
V2: thumb wheel (user-defined)
V1
HOME: functional key. Press to return to standby interface;
Stick
press for 2 seconds, open monitor interface.
Hook
EXIT: return key. Press to return to the previous interface;
Trim T2
press for 2 seconds, lock/unlock the touch screen
Trim T1
Power switch
＋: increase, toggle state
－: decrease, toggle state
Navigation button
Navigation button:
Touch screen
The middle key: press to confirm, press and hold to reset
parameters (value)
USB interface
Home Screen
1. Transmitter Model
2. WFLY: Click to Enter Main Menu
3. Ordinary Timer: Press and hold to Reset, Click to
Start/Stop
4. Mode Timer: Press and hold to Reset, set in [Timer] menu
5. Voltage: Receiver Voltage, External Battery Voltage
13
6. Trimming Monitor: Display real-time Trimming State
7. Time: accumulation of time after booting. Reset after
power off.
12
4.2V
8. Model name: click into the model selection interface
T 1
T 2
11 9. Model: click into the current model type interface
10. User name: click into custom naming
10
11. Trimming state: display T1 ~ T4 state (when T1-T4 use as
switch), for details, refer to the instruction in [Aux Channel] and
[Trim Step] of general function.
9 Means up
Means neutral
Means down
12. Power: Transmitter battery level
13. Receiver signal strength
8
14. Fly Mode (throttle hold, ordinary, idle 1, idle 2)
0 15. Mixed control: display as mixed control function is on
7
0 0 : 0 6 : 5 9
16. Working mode: current mode (trainer, simulator, student)
17. Screen locking state (press EXIT key for 2 seconds to
toggle)
EN V01
