  • Page 1 Owner’s Manual MIGHTY Class A Single Ended Power Amplifier www.lab12.gr...
  • Page 2 LAB12 MIGHTY Class A Single Ended Power Amplifier Table of Contents It is yours Features Installation & Placement Front Panel Rear Panel Main connections For the safety of your equipment Specifications...
  • Page 3 NOS Russian driver tubes and EL34 Russian on power stage. MIGHTY can cooperate gratefully with any preamplifier on the market and it is the perfect match for TRUE or HPA. Mighty has the ability to nail you down on your couch and make you listen all your music collection again. All the power you need for a normal range pair of speakers is here but the most remarkable point is that you will receive a fluid, wide and addictive consonant sound with any choice of music style.
  • Page 4 Due to high power tubes design, MIGHTY chassis could be hot so you should never place another hot component directly near this device. Make sure the device has enough space to ventilate.

  • Page 5: Front Panel

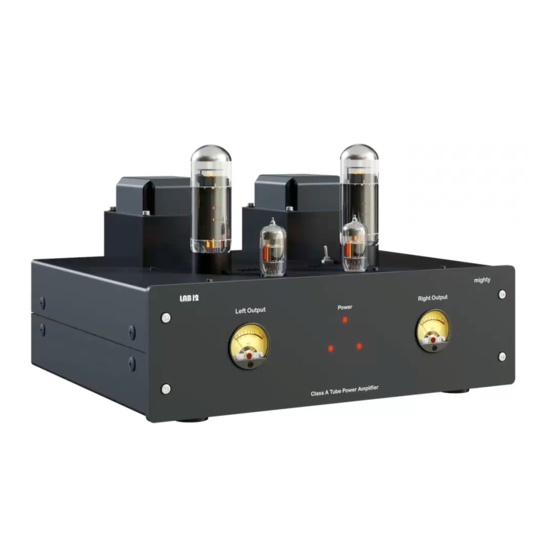

    LAB12 MIGHTY Class A Single Ended Power Amplifier Front Panel MIGHTY Front panel At front panel you will see three indication LEDs and two VU meters. The three LEDs (C) indicates that the device is powered on. To the left of 3 LEDs you see a retro analog VU meter (A). You can accurately monitor the output level of left channel on dB scale.

  • Page 6: Rear Panel

    LAB12 MIGHTY Class A Single Ended Power Amplifier Rear Panel MIGHTY Rear panel In rear panel you will find the connection inputs and outputs. To the right side you will find an IEC AC input. Below IEC input is located the main fuse holder (A) and the Power switch (B).

  • Page 7: Main Connections

    You can change the operation even amplifier is turned on with just lowering the volume. MIGHTY is fully compatible with the best octal tubes (EL34, 6550, KT88). You can use any of these three types of tubes with no problem.

  • Page 8: Specifications

    LAB12 MIGHTY Class A Single Ended Power Amplifier Specifications  Power: 230/240 Volt AC 50Hz  Power consumption: 120 VA max (2.5 A fused)  Rated output power: 10 watt per channel  Frequency response: 20Hz-20KHz (-0.9dB)  Input impedance: 100K ohms ...
