- Page 1 Owner’s Manual Integre4 Audiophile integrated amplifier www.lab12.gr v1.3...
-
Page 2: Table Of Contents
LAB12 integre4 Audiophile integrated amplifier Table of Contents It is yours Features Unpacking and Warnings Installation & Placement Front Panel Rear Panel Connections Remote Control Interface menu structure Connections For the safety of your equipment Tubes compatibility / Bias values... -
Page 3: It Is Yours
LAB12 integre4 Audiophile integrated amplifier IT IS YOURS! Thank you for selecting the Lab12 integre4, a new age audiophile amplifier designed to be the core of a modern high end audio system. Do not forget that your amplifier is totally handcrafted with perfectly matched parts of the finest selections. - Page 4 Unpacking Lab12 integre4 should be removed from its box with care. Remove all the polystyrene protective pieces of the box before you unpack integre4. Safely store the tubes boxed until you secure integre4 at its final place. Unpack integre4 with your hands on two sides of amplifier.
-
Page 5: Installation& Placement
LAB12 integre4 Audiophile integrated amplifier Installation& Placement Lab12 integre4 should be placed on a solid flat surface. You should avoid placing it near a heat source as this could compromise the amplifier’s performance and reliability. You should never place another component directly on top of this amplifier. -
Page 6: Front Panel

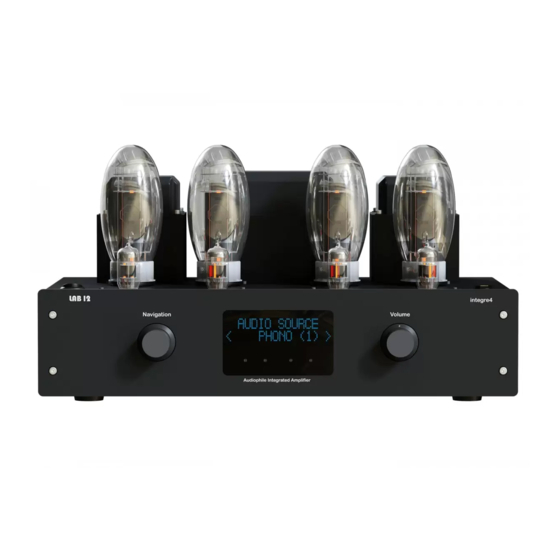

LAB12 integre4 Audiophile integrated amplifier Front Panel Integre4 Front panel On the front panel you will see the OLED display with bias setting trimmers, the navigation rotary knob and the volume control. The left rotary/push knob (A) is there for navigation into menu structure. -
Page 7: Remote Control
LAB12 integre4 Audiophile integrated amplifier Remote Control Integre4 Remote Control You can fully control your amplifier from IR remote control RC1. At the top section of the remote control the two buttons for output volume adjustment (A).are located. Bellow volume buttons you will find two buttons for input selection and menu navigation (B). -
Page 8: Interface Menu Structure
LAB12 integre4 Audiophile integrated amplifier Interface menu structure Integre4 is a new era tube integrated amplifier; a powerful processor is responsible for the full and safe control of device. All details can be monitoring through the OLED display. When you turn on your amplifier the soft start circuit provides about a minute to warm up tubes. -
Page 9: Connections
Connect a High Grade Power cable to the IEC input and to your wall socket. Make sure that your wall socket provides a good ground before connecting the power cable. You can supply 230 to 240 Volts AC (50Hz). (Every integre4 is tuned and calibrated using the LAB12 Knack Power Cable) Connect an analog source Connect any line level analog source to any of the five input pairs. -
Page 10: Tubes Compatibility / Bias Values
LAB12 integre4 Audiophile integrated amplifier Tubes compatibility / Bias values Bellow you will find a bias chart for the most common compatible tubes for integre4. ! After changing tubes always turn all the bias trimmers’ counterclockwise (cold bias) with bias screwdriver, before turning on the amplifier. -
Page 11: Specifications
LAB12 integre4 Audiophile integrated amplifier Specifications • Power: 230/240 V AC 50Hz • Power consumption: 350 VA max • Output power: 45 watt per channel (6550) • Frequency response: 15Hz - 60KHz (-1dB) • Input impedance: 50K ohms • Tube complement: 4x 6n1p dual triodes, 4x 6550 power pentodes (EL34, KT88, KT120, KT150 compatible) •...
