- Page 1 Owner’s Manual mighty Class A Single Ended Power Amplifier www.lab12.gr manual v1.4 Page 1 of 8...
- Page 2 Lab12 mighty- Class A Single Ended Power Amplifier Table of Contents It is yours……………………………………………………………………….3 Unpacking and Warnings…………………………………………..…..3 Features………………………………………………………………………….4 Installation & Placement……………………………………………..…4 Front Panel………………………………………………………………………5 Rear Panel……………………………………………………………………….6 Main connections……………………………………………………….……7 For the safety of your equipment………………………………..….8 Specifications………………………………………………………………..…8 Page 2 of 8...
- Page 3 Russian driver tubes and EL34 Russian on power stage. Mighty can cooperate gratefully with any preamplifier on the market and it is the perfect match for Lab12 true or hpa. Mighty has the ability to nail you down on your couch and make you listen all your music collection again. All the power you need for a normal range pair of speakers is here, but the most remarkable point is that you will receive a fluid, wide and addictive consonant sound with any choice of music style.
- Page 4 • Five Years Guarantee Installation & Placement Mighty should be placed on a solid flat surface. You should avoid placing it near a heat source as this could compromise the mighty performance and reliability. Insert the tubes carefully in each position. All tubes are marked with position number was placed during calibration and burn in of mighty.

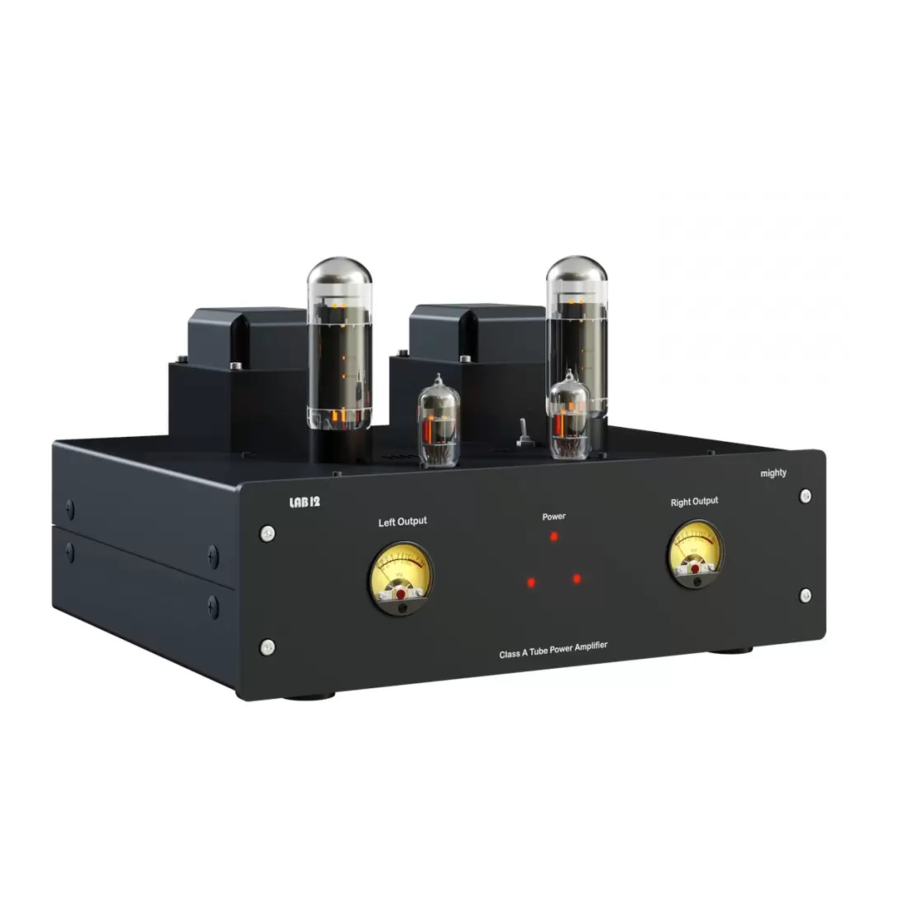

- Page 5 Lab12 mighty- Class A Single Ended Power Amplifier Front Panel MIGHTY Front panel In the front panel you will see three indication LEDs and two VU meters. The three LEDs (C) indicate that the device is powered on. To the left of the 3 LEDs, you see a retro analog VU meter (A). You can accurately monitor the output level of left channel on dB scale.
- Page 6 Lab12 mighty- Class A Single Ended Power Amplifier Rear Panel MIGHTY Rear panel In the rear panel you will find the connection inputs and outputs. To the right side you will find an IEC AC input. Below IEC input, the main fuse holder (A) and the Power switch (B) are located.
- Page 7 You can change the operation even when amplifier is turned on with just lowering the volume. Mighty is fully compatible with the best octal tubes (EL34, 6550, KT88). You can use any of these three types of tubes with no problem.
- Page 8 For the safety of your equipment Make sure that all your equipment is turned off before any connection. ! To avoid damaging your speakers you have to turn on mighty some seconds after turning on your preamplifier and turn it off some seconds before turning off your preamplifier.
