8.2 Adjusting the space between cyan color and other colors (Horizontal Space).

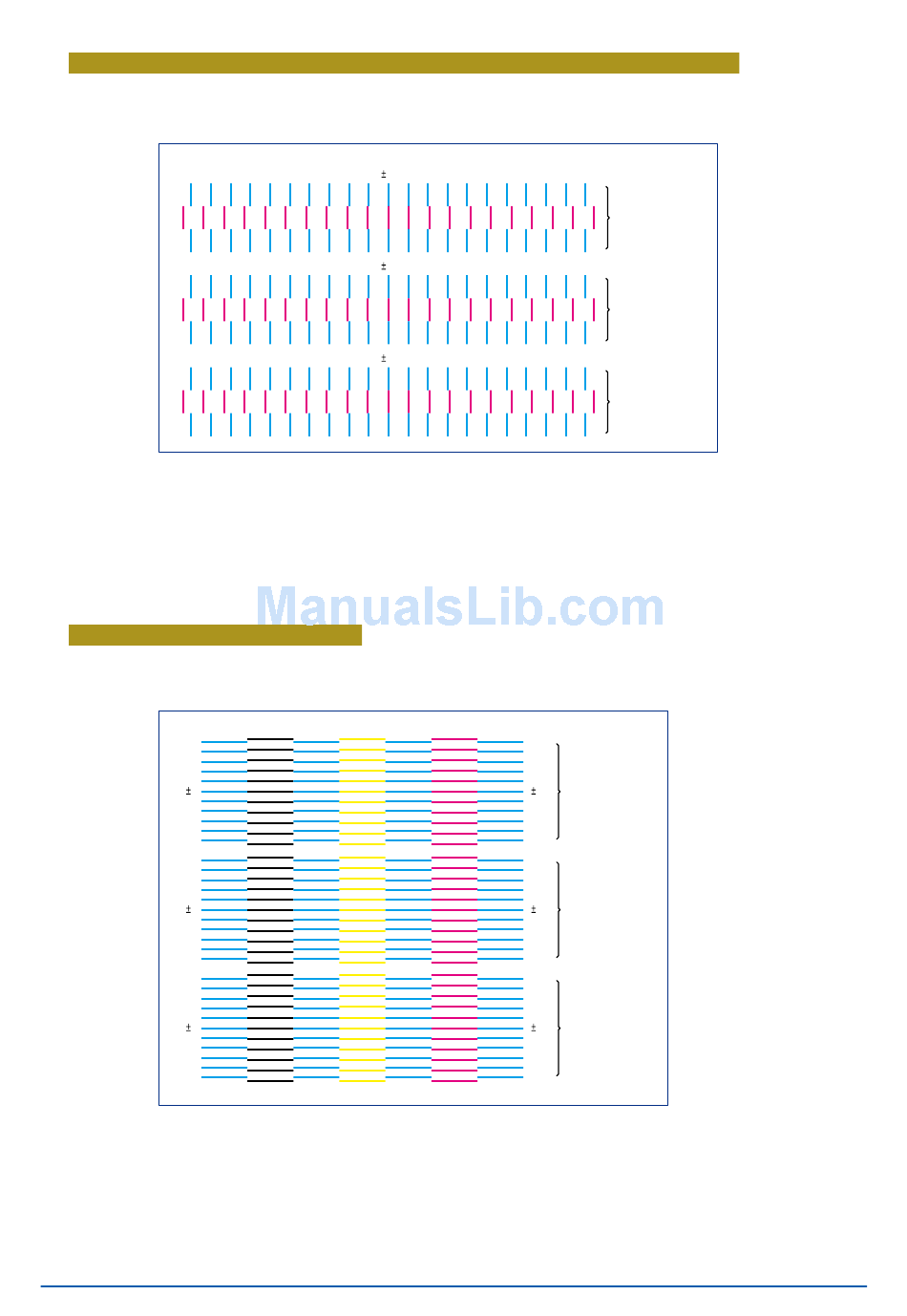

1. Open the file "3_H_Space_Color_12HEAD.group" and start printing.
* For 8-head model printers, open "2_H_Space_Color_8HEAD.group".
-20 -18 -16 -14 -12 -10 -8 -6 -4 -2
-20 -18 -16 -14 -12 -10 -8 -6 -4 -2
-20 -18 -16 -14 -12 -10 -8 -6 -4 -2
2. Check the results of printing, select where the printed lines are aligned most closely as one line, and input
the compensation value indicated with the line.
* If an adjusted value has already been inputted, add the above value to the existing value.
3. Perform printing again to confirm that the printing of lines of each color is aligned most closely as one line
where ±0 is indicated.
If the adjusted condition is not what is intended, repeat steps from  to 3.
8.3 Adjusting the Vertical Space.
1. Open the file "4_V_Space_12HEAD.group" and start printing.
* For 8-head model printers, open "3_V_Space_8HEAD.group".
-5
-4
-3
-2
-1
0
+1
+2
+3
+4
+5
-5
-4
-3
-2
-1
0
+1
+2
+3
+4
+5
-5
-4
-3
-2
-1
0
+1
+2
+3
+4
+5
2. Check the result of printing, and input the compensation value indicated with the line.
3. Perform printing again to confirm that the printing of lines of each color is aligned most closely as one line
where ±0 is indicated.
If the adjusted condition is not what is intended, repeat steps from  to 3.
0 +2 +4 +6 +8 +10 +12 +14 +16 +18 +20
0 +2 +4 +6 +8 +10 +12 +14 +16 +18 +20
0 +2 +4 +6 +8 +10 +12 +14 +16 +18 +20
-5
-4
-3
-2
-1
0
+1
+2
+3
+4
+5
-5
-4
-3
-2
-1
0
+1
+2
+3
+4
+5
-5
-4
-3
-2
-1
0
+1
+2
+3
+4
+5
8
Printing with Head-3
Printing with Head-2
Printing with Head-1
Printing with Head-3
Printing with Head-2
Printing with Head-1
