Summary of Contents for Wisco Industries 575 EC

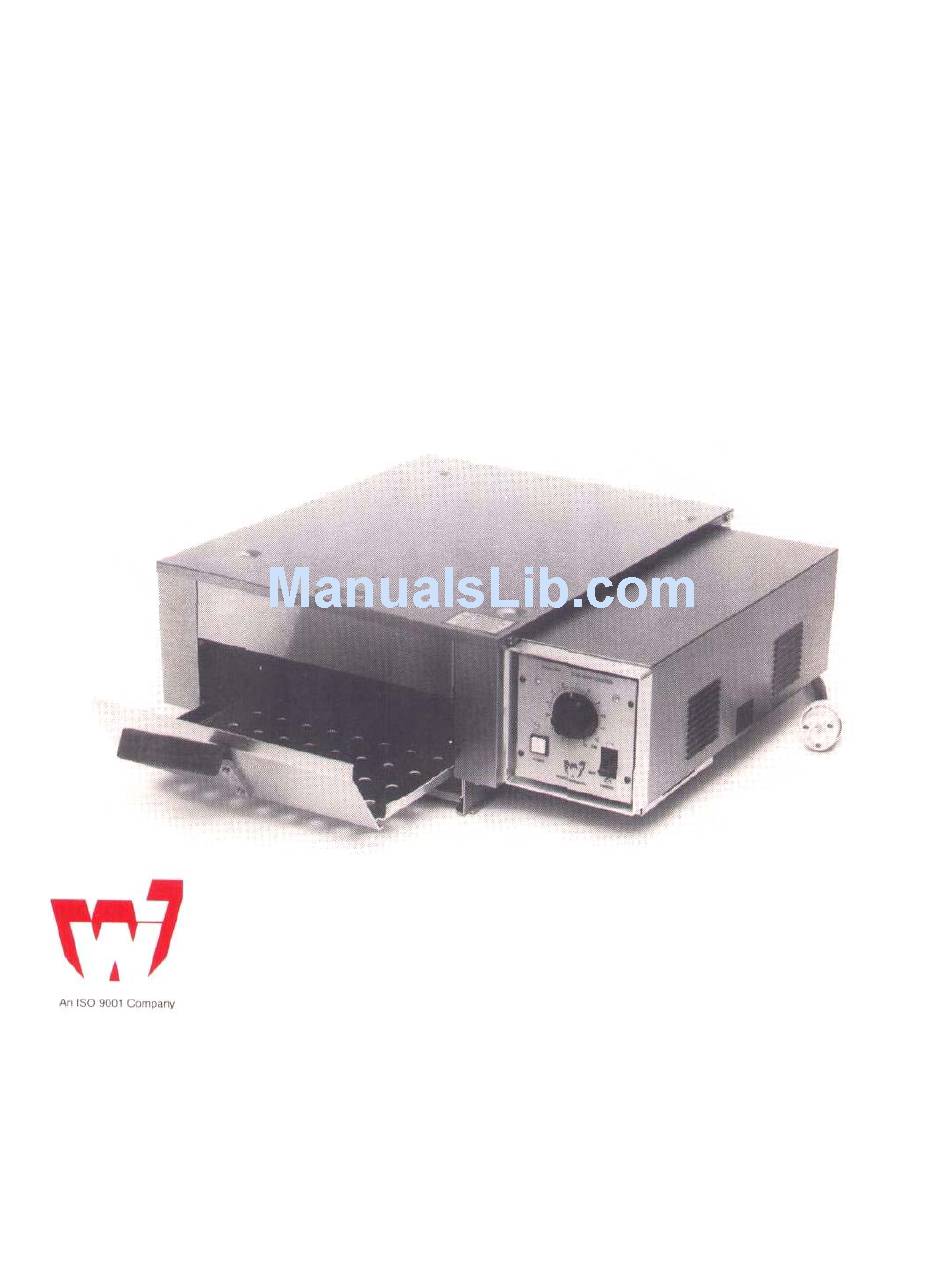

- Page 1 575 EC TOASTER OVEN 575 EC TOASTER OVEN 575 EC TOASTER OVEN 575 EC TOASTER OVEN WISCO INDUSTRIES, INC. OREGON, WISCONSIN 53575-0010 • TELEPHONE 608-835-3106 • FAX 608-835-7399...
-
Page 2: Limited Warranty
Infrared Quartz Lamps which are guaranteed for thirty days. Date of purchase shall be the day of shipment. Wisco agrees to replace or repair any part which proves defective, without charge for that part, during this one-year period. -
Page 3: Table Of Contents
Lamp Installation Power Cord Installation GENERAL MAINTENANCE LOCATION AND FUNCTION OF CONTROLS OPERATION TROUBLESHOOTING GUIDE REPLACEMENT PARTS (QUICK REFERENCE) REPLACEMENT INSTRUCTION Lamps Contr ol Assemb Relay Fan Motor COMPLETE PARTS LIST 10-11 575 EC EXPANDED VIEW DRAWING 575 EC WIRING DIAGRAM... -
Page 4: Introduction
With capacity for toasting 400 buns per hour, the 575 EC will handle your most demanding needs. With its unique ENERGY SMART circuitry design, energy consumption is minimized until services are required which saves 50-80% more energy than conveyor-type toasters. -
Page 5: Model Description
MODEL DESCRIPTION CONSTRUCTION Wisco's Toaster Oven is constructed with a 22 gauge brushed stainless steel exterior and an aluminum interior. Specular aluminum reflectors focus the infrared waves to maximize efficiency when toasting or melting cheese. SPECIFICATIONS DIMENSIONS Figure 1. Model 575 EC Toaster Oven Height: 9 1/4"... -
Page 6: Operating Instructions
OPERATING INSTRUCTIONS CAUTION: To prevent electrical shock, DO NOT apply power or try to operate toaster until after proper preparation of this unit. PREPARATION Prior to operation, you must install the infrared lamps, grill tray handle, cleanout tray knob, and install a power cord (if requested without). -
Page 7: Lamp Installation
LAMP INSTALLATION CAUTION: DO NOT touch the glass surface when handling the quartz lamps. The oil from your hands creates hot spots that will diminish the life of the lamps. When handling, grip the metal end caps. 1. Remove the top of the unit to access the lamps. Two lamps are required for operation, 2. -
Page 8: General Maintenance
GENERAL MAINTENANCE Proper maintenance includes regular cleaning. The exterior should be cleaned with glass cleaner or substitute cleaner that is not abrasive. DO NOT allow grease or dust particles to accumulate in the louvers. Adequate airflow is essential for proper cooling of the solid state components. -
Page 9: Operation
OPERATION To determine the appropriate calibration for your product, begin by setting the timer at 6, which is approximately a 60 second cycle—initiate cycle by pressing toast switch. If a darker finish is desired, advance the control to a higher setting. -
Page 10: Replacement Parts (Quick Reference)
Lamp, control assembly, unit over heating—check fan motor REPLACEMENT PARTS LIST (QUICK REFERENCE) The following is a quick reference parts list designed for quick access and identification of common components 575 EC DESCRIPTION PART NO 0017806 Control Panel Assembly 00122... -
Page 11: Replacement Instruction
REPLACEMENT INSTRUCTIONS LAMPS 1. Disconnect unit from power. 2. Unscrew top panel and remove. 3. Unscrew reflector panel, and remove carefully, so as not to damage the sensor located on top of the reflector panel. 4. Remove lamp and replace with new lamp. 5. -
Page 12: Fan Motor
FAN MOTOR 1. Disconnect unit from power. 2. Remove access panel by removing (3) screws located on the bottom of the unit. 3. Disconnect (2) wires leading to the fan motor. 4. Remove fan blade by lifting up on the hub of the fan carefully, so as not to break the blades of the fan. 5. -
Page 13: Complete Parts List
COMPLETE PARTS LIST 575 EC DESCRIPTION PART O 009121 #10 Screw 009205 Top Panel 0017806 Control Assembly 001789 9 Thermistor A ssem 009014 Access Panel 009181 Handle an Mounting Bracket 009220 Bun Tray 00146 Speed N ut 905063 1 9 3/8"... - Page 14 COMPLETE PARTS LIST (continued) 575 EC DESCRIPTION PART NO 009752 Right Bulkhead 009612 Roller Ramp 009016 Reflector 009135 Air Deflector 009763 Cover 009107 Thermostat Temp Limit 009108 Thermostat Fan Control 009141 Lamp Socket 009555 Universal Lamp Panel 009113 8-32 x 5/8" Screw...
-
Page 15: 575 Ec Expanded View Drawing
575 EXPANDED DRAWING Figure 4. Expanded View Drawing... -
Page 16: 575 Ec Wiring Diagram
Figure 5. 575 EC Wiring Diagram...
