DESCRIPTION:
This document illustrates how to replace the Control Panel Assembly in your Model 621.

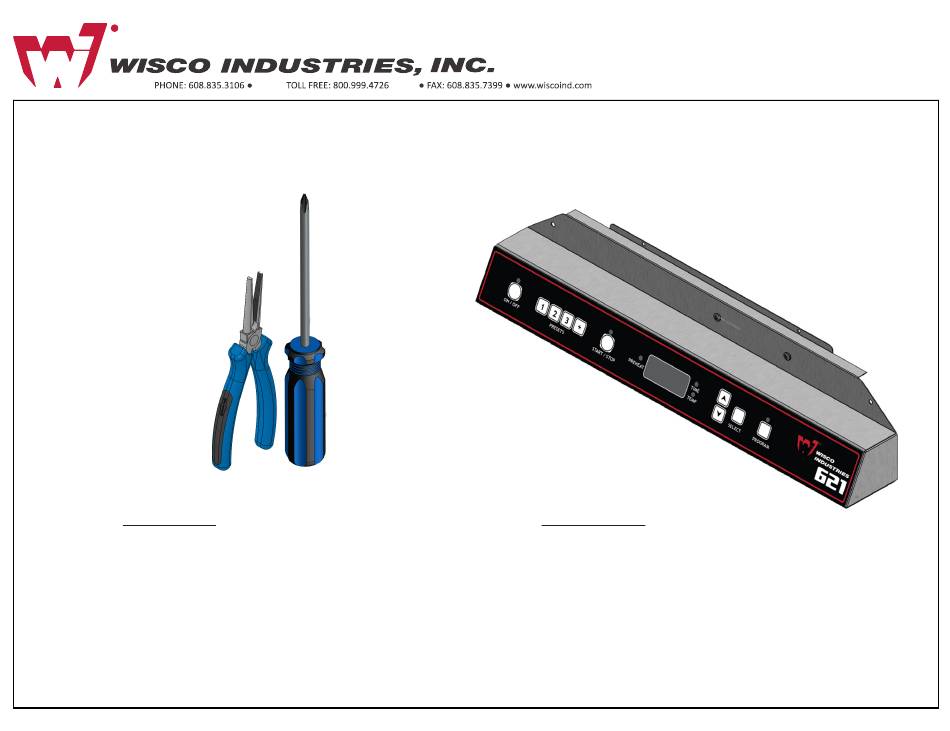

TOOLS NEEDED
• Pliers (Needle Nose Recommended)
• #2 Phillips Head Screwdriver
Please review this document thoroughly before beginning repairs. Wisco recommends using qualified local service agents. Wisco does not have authorized service agents.
FS14130 - REV: ORIG
#1
#2
MODEL 621 - CONTROL PANEL ASSEMBLY
PARTS INCLUDED
• (1) 0027439SK - CONTROL PANEL ASSEMBLY KIT
0027439SK
Page 1 of 4
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Wisco Industries 621
Summary of Contents for Wisco Industries 621
- Page 1 MODEL 621 - CONTROL PANEL ASSEMBLY 0027439SK DESCRIPTION: This document illustrates how to replace the Control Panel Assembly in your Model 621. TOOLS NEEDED PARTS INCLUDED • Pliers (Needle Nose Recommended) • (1) 0027439SK - CONTROL PANEL ASSEMBLY KIT • #2 Phillips Head Screwdriver Please review this document thoroughly before beginning repairs.
- Page 2 MODEL 621 - CONTROL PANEL ASSEMBLY 0027439SK UNPLUG UNIT FROM OUTLET AND ALLOW TO COOL 1.) Remove the Door. (See door removal instructions) 3.) Remove the five screws along the bottom of the Con- trol Panel holding it to the Bottom Panel.
- Page 3 MODEL 621 - CONTROL PANEL ASSEMBLY 0027439SK #3 #4 #5 4.)Remove the front eight screws of the Control Panel. 5.) Use a pliers to carefully disconnect the five wire Note the smaller sized screws that are located within the connections from the Power Board. (Note Position of gasket channel.
