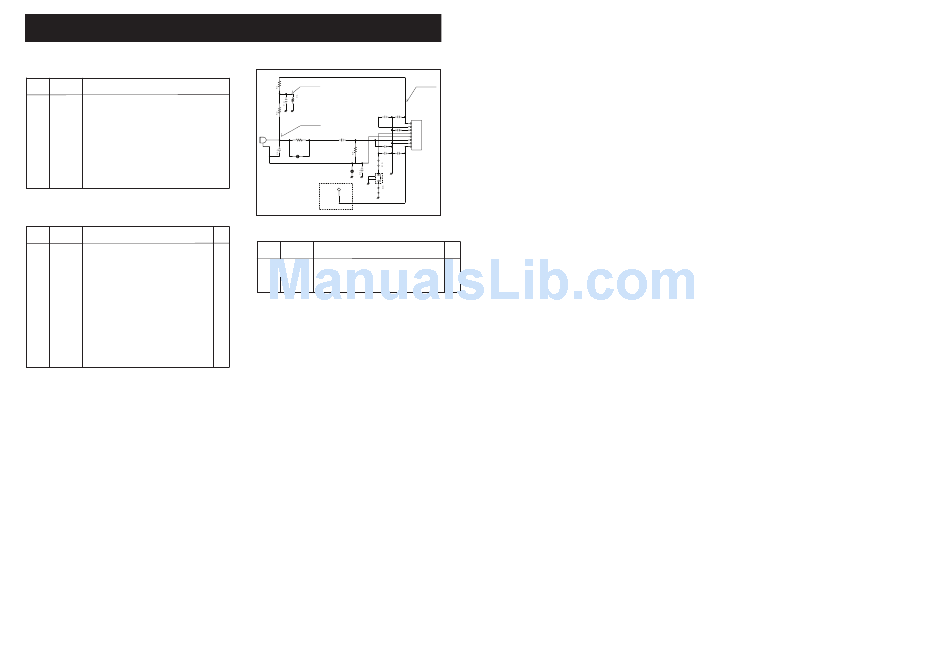

Icom IC-F7000 Service Manual Addendum page 71

SECTION 13
• ELECTRIC PARTS
[MAIN UNIT]
REF ORDER
DESCRIPTION
NO. NO.
R1 7030011410 S.RES ERJ3GE YJ 222
R2 7030011410 S.RES ERJ3GE YJ 222
R3 7030011420 S.RES ERJ3GE YJ 562
R4 7030011410 S.RES ERJ3GE YJ 222
C1 4510009230 S.ELE EEE1HA010SR
C2 4030018990 S.CER C1608 JB 1H 102K
C3 4030019000 S.CER C1608 JF 1H 104Z
C4 4030019010 S.CER C1608 JB 1H 103K
C5 4030018990 S.CER C1608 JB 1H 102K
C6 4030018990 S.CER C1608 JB 1H 102K
C7 4030018990 S.CER C1608 JB 1H 102K
C8 4030018990 S.CER C1608 JB 1H 102K
C9 4030018990 S.CER C1608 JB 1H 102K
C10 4030019000 S.CER C1608 JF 1H 104Z
C11 4030018990 S.CER C1608 JB 1H 102K
• MECHANICAL PARTS
[CHASSIS PARTS]
REF ORDER
DESCRIPTION
NO. NO.
W1 8900014230 OPC-1471
W2 9028540010 AWG24 L=70 GRAY
MP2 8210022100 2854 S-FRONT PANEL
MP5 8210022120 2854 TOP PANEL
MP6 8930067080 2854 PTT BUTTON
MP7 8610012570 2854 SW BUTTON
MP8 8210022110 2854 SIDE PANEL
MP9 8930067120 2854 PTT RUBBER
MP10 8930067140 2854 MIC SEAL
MP11 8930067180 2854 16-KEY
MP12 8610012580 2854 HANGER KNOB
MP14 8930067100 2854 WEIGHT
MP15 8930067150 2854 PTT SPRING
MP17 8310066000 2854 NAME PLATE (G)
MP18 8810010520 Screw B0 3X16SUS
MP19 8810010530 Screw BiH M4X14 SUS
MP20 8810010240 Screw BT B0 2X6NI
MP23 8850002000 SPRING WASHER M4 SUS
MP24 8860001380 earth lug B3 (M4) BS AG
• EXPLODED VIEW
HM-155
• VOLTAGE DIAGRAM
7.57V
C6
7.14V
C7
MC1
R3 C3
C4
C8
S1
PTT
HANGER
HM-152
QTY. [MAIN UNIT]
REF ORDER
1
DESCRIPTION
NO. NO.
1
J1 6510025100 CON IL-S-8P-S2L2-EF
1
1
MC1 7700002720 MIC F9745AP382-101
1
1
S1 2260002890 SW SKQJLBA010
1
1
1
1
2
1
1
3
1
3
1
1
13 - 1
8.00V
HM-152
J1
C5
8V
1
CLONE
2
AFO
3
PTT
4
MICE
5
MIC
6
GND
7
HANGER
8
C9
QTY.
1
1
1
