Icom IC-F7000 Service Manual Addendum page 61

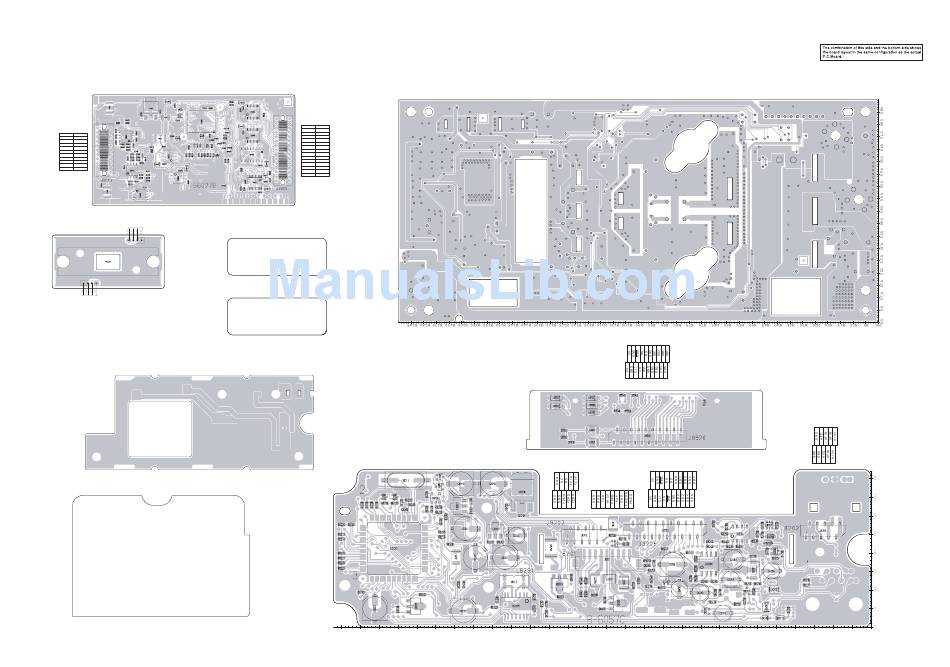

• DSP UNIT (BOTTOM VIEW)
21
J9901
5 4 40
1 DSPI1 GND 2
GND GND
GND DSPI2 8 1
GND GND
8V 8V
GND GND
8 7
AGC2 AGC1
GND GND
DSPO1 GND 14 1
8 5
GND GND
21 GND DSPO2 22
to MAIN unit J1102
1 14
1 4
7 8
1 8
4 5
• DRIVER BOARD
(BOTTOM VIEW)
to PA unit J6301
to PA unit J6302
<RC-26>
• REAR UNIT
(BOTTOM VIEW)
<HM-155>
• MAIN UNIT
(BOTTOM VIEW)
(No pattern)
20 11
20
1 10
J9902
30 DRES GND1 29
20 11
DSKY UNLK
1
GND1 GND1
NC OUT8
VSQL OUT6
1 10 ALE2 TRFO
8 1 CWST ALE1
GND1 GND1
OBSY STBO
RQO DO
GND1 GND1
9 16
CK DI
RQI IBSY
GND1 GND1
10 1 2 CK_IN 192K 1
to MAIN unit J1101
11 20
• VARISTER-1 UNIT
(BOTTOM VIEW)
(No pattern)
• VARISTER-2 UNIT
(BOTTOM VIEW)
(No pattern)
<RC-26>
• DISPLAY UNIT
(BOTTOM VIEW)
20
21
40
41
H140 H135 H130 H130 H125
• PA UNIT
(BOTTOM VIEW)
<RC-26>
• CONNECT UNIT
(BOTTOM VIEW)
2 10
J8202
1 9
1
80
61
60
7 1
8 14
H120 H115 H110 H105 H100 H95 H90 H85 H80
19 1
J8920
20 2
to DISPLAY board J8205
to CONNECT board J8920
2 20
J8205
to IC-F7000 MAIN unit J2051
9 1
J8201
1 19
8 5
1
4
8 5
1 4
H75 H70 H65 H60 H55 H50 H45 H40 H35 H30
9 - 4
2 10
J8702
to REAR
board J8802
1 9
S-14012HH-P3-q
