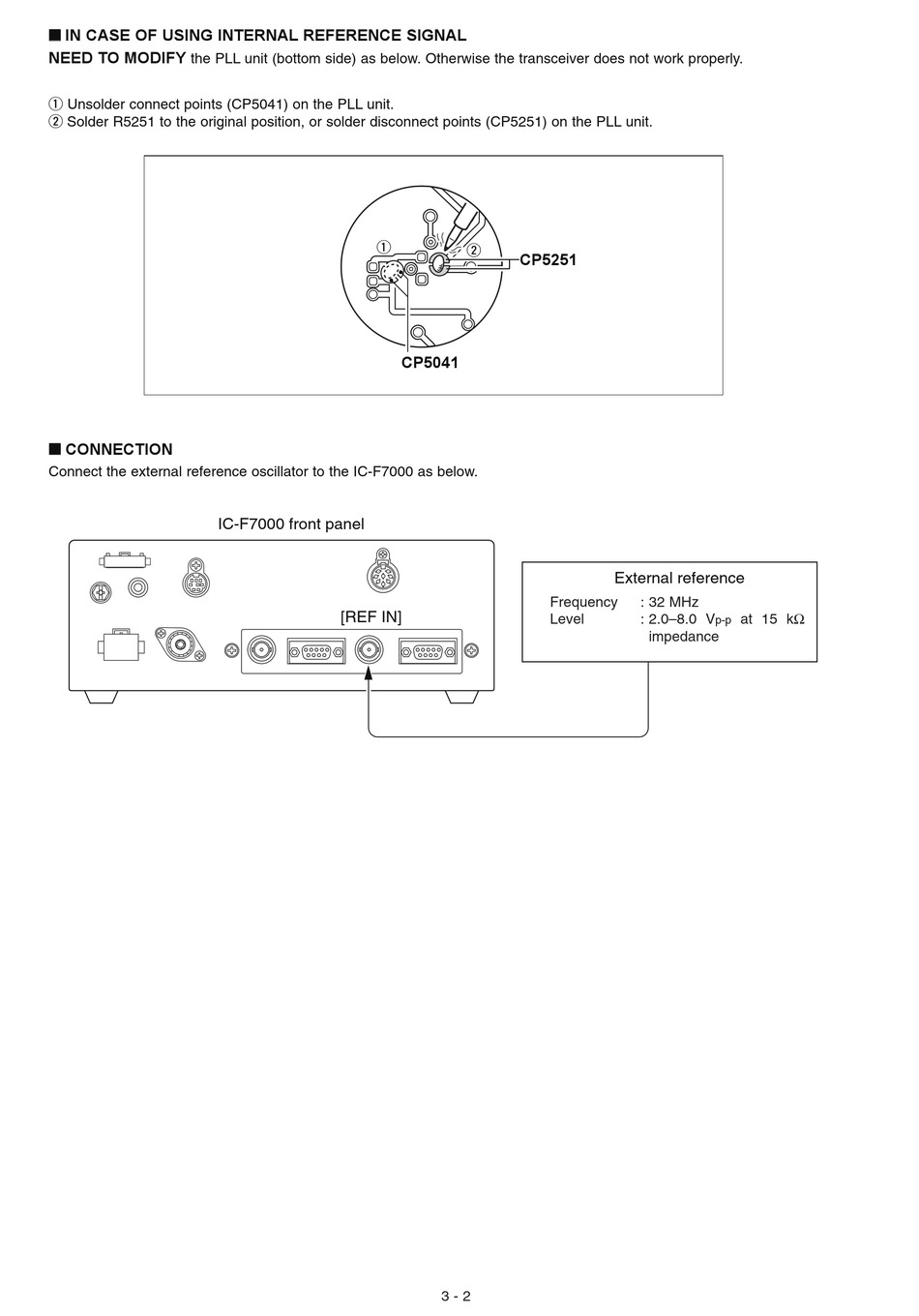

IN CASE OF USING INTERNAL REFERENCE SIGNAL
NEED TO MODIFY
the PLL unit (bottom side) as below. Otherwise the transceiver does not work properly.
q Unsolder connect points (CP5041) on the PLL unit.
w Solder R5251 to the original position, or solder disconnect points (CP5251) on the PLL unit.
'
'
CONNECTION
Connect the external reference oscillator to the IC-F7000 as below.
IC-F7000 front panel
q
w
CP5041
[REF IN]
3 - 2
CP5251
External reference
Frequency
: 32 MHz
Level
: 2.0–8.0 V
impedance
at 15 kΩ
p-p
