Icom IC-F7000 Service Manual Addendum page 18

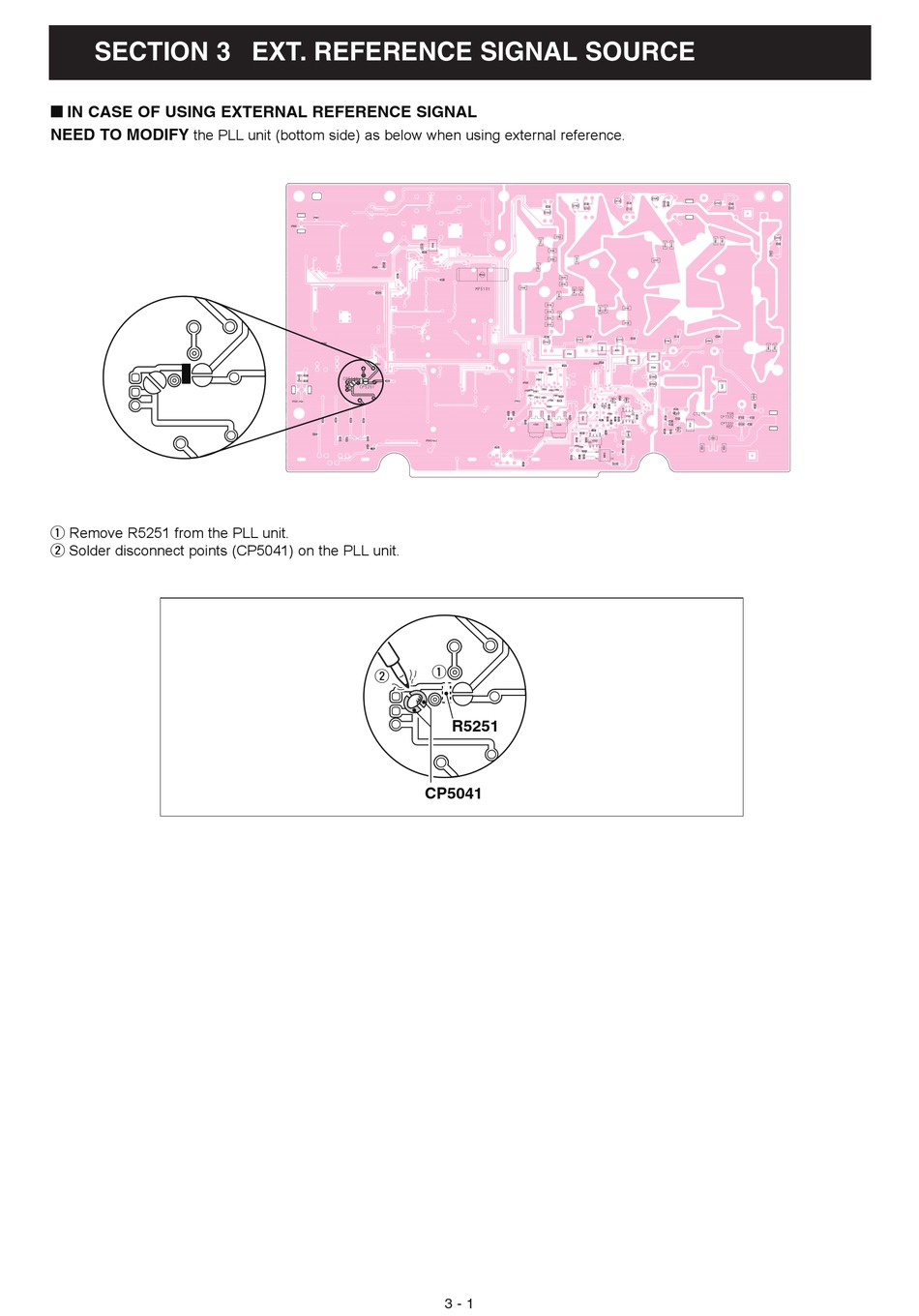

SECTION 3 EXT. REFERENCE SIGNAL SOURCE
' '
IN CASE OF USING EXTERNAL REFERENCE SIGNAL
the PLL unit (bottom side) as below when using external reference.
NEED TO MODIFY
q Remove R5251 from the PLL unit.
w Solder disconnect points (CP5041) on the PLL unit.
q
w
R5251
CP5041
3 - 1
4 1
5 8
8 5
1 4
