Smart temp Microstat Operating Instructions

Smart Temp
Thermostats
Congratulations on the purchase of your new
Electronic Thermostat!
Your new Smart Temp Microstat thermostat has been built
using the best components and design philosophy. As a
consequence of this, if properly installed your new electronic
programmable thermostat will provide you with many years
of trouble free and reliable service.
The Smart Temp Microstat has been designed to be
attractive, highly reliable and simple to use. Please take the
time to read these instruction to familiarise yourself with the
function and features offered in this product.
Installation
Note: To be installed by qualified personnel only
Choosing a location for the Microstat.
Choose a mounting location about 1.5 metre above the floor in
an area with good air circulation and away from:
1. Drafts and dead air spots.
2. Radiant heat from the sun or appliances.
3. Concealed pipes and chimneys.
Mounting the thermostat unit onto the wall:
1. Remove the slide door of the thermostat completely.
2. Mark the holes position.
3. Drill two holes and insert the plastic anchors carefully into the
holes.
4. Fasten the thermostat to the wall with the two (2) screws-
included
5. Install two "AA" size Alkaline batteries into the battery
compartment.
Power-up.
Your Microstat uses two "AA" size Alkaline batteries to operate.
When the display shows "BATT", you should replace the two
batteries.
When power is first applied, the display will show the time and
day (MO 12:00) as well as the ambient temperature.
Note: For trouble free performance use Alkaline batteries only with the Microstat

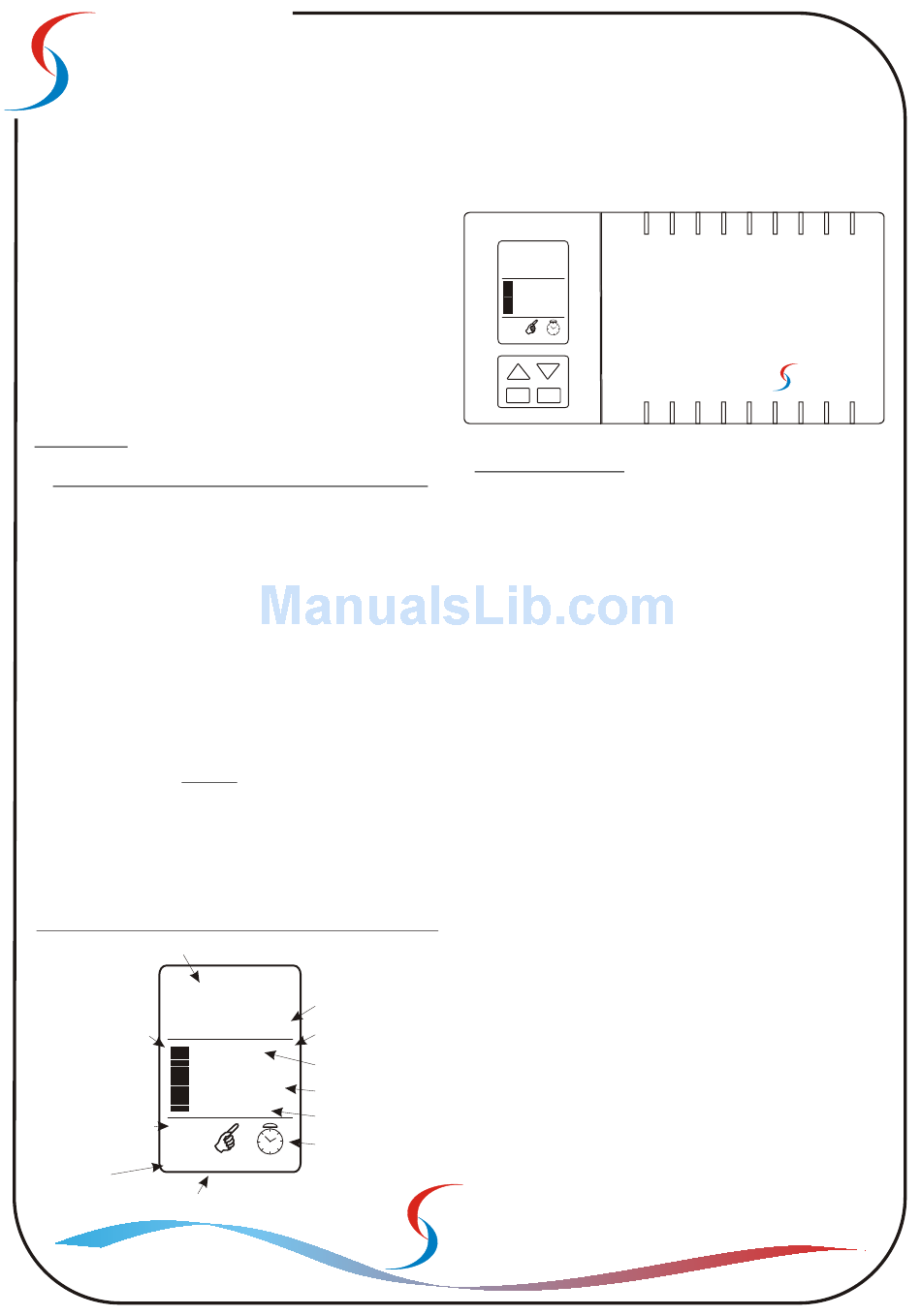

Current Time Indicator
2:35
P
M
MO TU WE TH FR SA SU
Heating On Indicator
Auto Mode Indicator
PROG
1 2
3 4
Program Number
Manual Mode Indicator
TM
Current Day Indicator
Low Battery Indicator
22
BATT
SETPOINT
c
Set Temperature Indicator
.5
Temperature Display
FILTER
Clean Filter Indicator
Econo Mode Indicator
MANUAL ECONO
Microstat

Operating Instructions

2:35
P
M
Tu
22
c
.5
PROG
1 2
3 4
MANUAL ECONO
AUTO MAN
Operating Modes
The thermostat has three separate operating modes being :
AUTOmatic, MANual and TIMER ECONO.
NOTE: Only one mode can be active at a time.
AUTO
The Automatic mode maintains the room temperature
according to the user programs.
Press the AUTO button. The "PROG" icon and the running
program will be displayed.
Momentarily pressing the up or down button displays the
temperature set point of the running program.
MAN
The Manual mode allows the user to bypass the
programming and operate the thermostat as a simple non
programmable thermostat.
Pressing the MAN button displays a hand symbol indicating
Manual mode is active.
The set temperature can be adjusted by pressing the
Temperature Up or Temperature Down button in 0.5 C
increments.
TIMER ECONO
When going on vacation or leaving the home for extended
periods (up to 7 days) the Microstat provides a useful
TIMER ECONO function.
This function provides a means to hold the homes
temperature to a temporary fixed temperature for up to 7
days. At the end of the TIMER ECONO mode the Microstat
will automatically return to Auto mode as described above.
This operating mode allows the user to temporarily override
the program to maintain a lower heating temperature
(during vacations etc) thereby providing savings in energy
costs.
To activate the Timer Econo mode :
1 Press and hold MAN button for three (3) seconds.
2 The clock symbol, the return time and the ECONO
temperature set point will be displayed.
3 Press DAY, HOUR and MIN keys to specify the return time.
