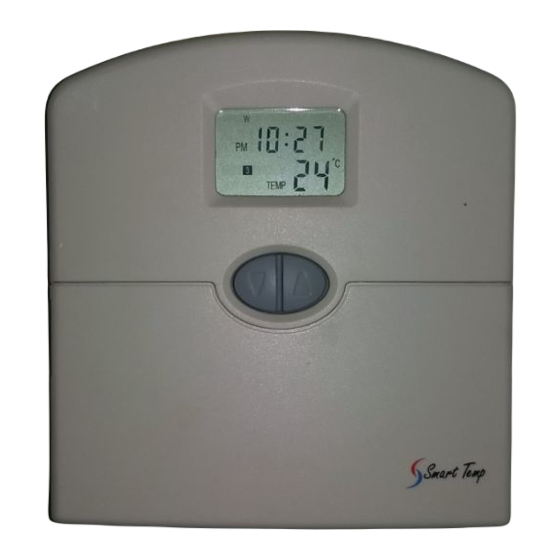

Smart temp 42 157 Owner's Manual

Smart Temp
Operation
Great effort has gone into making the Smart Temp electronic
thermostat an extremely simple thermostat to program and use.
By reading and understanding these simple instruction, you will
realise and use many of the features this thermostat has to offer.
Programming and set up of this product has been designed as a
very methodical procedure. The same buttons (and sequence of
buttons) are used to program and set up this product.

Setting The Clock

As the 42-157 thermostat is a programable thermostat, when you first
place the batteries into the thermostat, (or after you have pressed the
reset button) you must set the real time clock. This is essential as the 42-
157 thermostat uses this clock to turn on the heating and cooling at the
times that you request.
Setting the clock is a simple procedure that only requires a few key
presses. When the batteries are first installed, the LCD will indicate the
current room temperature and 12AM on the Clock as
shown in Fig1.
In this example, lets set the clock for 2:16PM on
Saturday.
Step 1
Press the button, the display will illuminate, the
DAY/TIME
temperature indication will go blank and the hours digits
will flash as in fig 2.
Step 2
By pressing the buttons adjust the hours to read
or
2PM.
Step 3
Press the button again. Now the minutes flash.
DAY/TIME
Pressing the will permit you to adjust the minutes
or
to "16".(Fig 3)
Step 4
Press the button again. Now the day will flash as in fig 4.
DAY/TIME
Press the to adjust the day to read "SA".
or
Step 5
Press the button again to return to normal mode. Alternatively by
DAY/TIME
NOT pressing a button for 20 to 30 seconds the thermostat will
automatically go back into normal mode. The clock is now set.
In this example, Pressing the
DAY/TIME
and Day. (Indicated by the flashing digit). By pressing the
permits you to make adjustments to the flashing digit. This same
principal is used through out the programming of this thermostat.
Thermostats
Your new Smart Temp thermostat has been built using the best components and
design philosophy. As a result, if properly installed your new electronic programmable
The Smart Temp 42-157 has been designed to be attractive, highly reliable and
simple to use. Please take the time to read these simple instruction to familiarise
M
AM
1
TEMP
Fig 1
AM
Fig 2
M
PM
Fig 3
M
PM
Fig 4
button cycles through Hours, Minutes
or
Model 42 157
Owners Manual
Congratulations on the purchase of your new Electronic Thermostat!
thermostat will provide you with years of trouble free and reliable service.
yourself with the function and features offered in this product.

Programming the Thermostat.

The 42-157 is a "5+2" day programmable thermostat; 1 program group is
for the 5 weekdays, 1 program group is for the weekend, hence the 5+2.
Further to this, the 42-157 has 4 programs per day. What this means is
that up to 4 times each day the thermostat will change the temperature of
the home.
As an example, in heating mode - just before you get out of bed in the
morning you may want the home to heat to 20 Deg
you are at work you may not want the house to get any colder than 15
Deg . Just before you arrive home at the end of the day you
(Program 2)
may wish the home to be at 21 deg
night you may want the home to be kept at a cosy 17 Deg
Programming this thermostat is no more difficult than setting the clock. In
programming mode however the thermostat will cycle between Hours,
Minutes and Temperature for Program 1. By continuing to press the
program button it will continue to cycle through Hours, Minutes and
Temperature for Program 2. Then Hours Minutes and Temperature for
Program 3 etc.
Again, after 20 to 30 seconds of NOT pressing a button the thermostat
will return to normal mode.
Step 1
Use the
HEAT OFF COOL
(Please note: This thermostat is capable of controlling both a Heating & Cooling system, The use of this
thermostat does not indicate that your home or office has a Heating AND Cooling system installed)
Step 2
Press the
PROGRAM
will be displayed. The "HOURS" and AM or PM on
the LCD will flash. (See fig 5) Press the
button to adjust the hour to the time you wish the
first program to start.
Step 3
Press the
PROGRAM
Press the
or
program to start.
Step 4
Press the
PROGRAM
flash. Again, by pressing the
temperature for program "1"
Pressing the program button again simply repeats the above procedure
for Programs 2, 3 & 4 for the weekdays, then the 4 weekend programs
(indicated by "SA SU" in the LCD).
Tip.
If you only require 2 or 3 programs per day, simply set the unrequired programs to
the same value as a used program. For example, should you only require 2
programs for the weekend (wake at 7:00am at 20 deg and Sleep at 11:00pm at
17Deg. Simply set program 1, 2 & 3 for 7:00 am at 20Deg and program 4 for
11:00pm at 17Deg. This way, at 7:00 the thermostat will move straight to program 3,
and stay in program 3 until 11:00 pm (program 4 start time)
button
To adjust the Cooling program. Repeat the above procedure with the
switch in the "Cool" position.
HEAT OFF COOL
, and while you sleep at
(Program 3)
switch to select either heating mode or cooling mode.
button. Program "1" indicator as well as the Weekdays
or
button again. Now the minutes will flash for program "1".
button to adjust the minutes to the time you wish the first
button again. Now the Temperature for program "1" will
buttons you can adjust the desired
or
. While
(Program 1)
.
(Program 4)
M T W TH F
AM
1
HEAT
FIG 5
