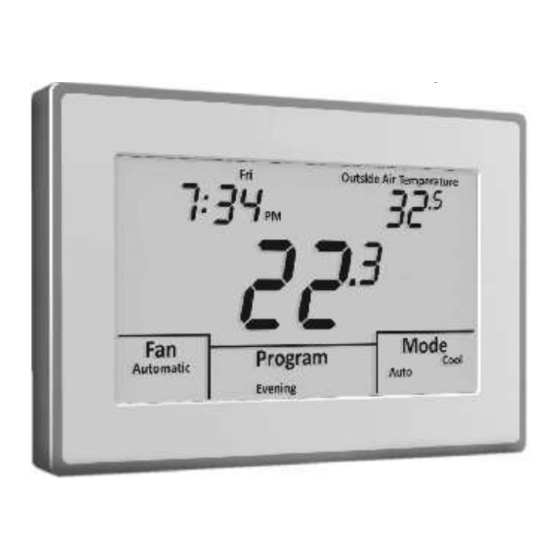

- Page 1 Smart Temp Apollo P/n 44-800 User Manual Version 1.0...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Introduction ......................3 Basic Functions ....................4, 5 Residential 5-2 Day Programming Mode ............6-3 Setting the clock ....................6 Mode selection .....................7 Fan selection ......................8 Programming 4 daily events ................9-12 Factory default schedule ..................13 Residential 7-Day Programming Mode .............14-22 Setting the clock ....................14 Mode selection ....................15 Fan selection ......................16 Programming 2 daily events ................17-22... - Page 3 TABLE OF CONTENTS Commercial Programming Mode ............23-27 Setting the clock ....................23 Mode selection ....................24 Fan selection .....................25 Programming 2 events (7-Day or 5-2) ............26, 27 Commercial default schedule ................27 Manual Mode .....................28 Basic Troubleshooting ..................29...
-
Page 4: Introduction
By taking time to read and understand this User Manual, you can take advantage of the many features offered in this premium product. Great care has been taken in the preparation of this manual. Smart Temp Australia P/L takes no responsibility for errors or omissions contained in this document. It is the responsibility of the user to ensure that this thermostat, or equipment connected to it is operating to their respective specifications and in a safe manner. -
Page 5: Basic Functions
BASIC FUNCTIONS To simplify use, the 44-800 only displays information relevant to the current mode of operation. When adjustments are required, the thermostat will display additional functions. Time and Day Set temperature (only shown in (displayed or hidden based on Heat Set programmable mode) thermostat configuration) -
Page 6: Basic Functions
BASIC FUNCTIONS Some symbols and display functions are normally hidden from view until needed or may not appear based on the thermostat configuration. Make sure your contractor configures the 44-800 to suit your specific needs. Lock Heat Set Padlock symbol Flt (Filter) indicates that the selected Optional filter reminder... -
Page 7: Residential 5-2 Day Programming Mode
RESIDENTIAL 5-2 DAY PROGRAMMING MODE Setting the clock Touch the clock on the display. The day of the week will flash. Use the UP and DOWN arrows to adjust the day. Touch the clock again. The hour will flash. Use the UP and DOWN arrows to adjust the hour. -
Page 8: Mode Selection
RESIDENTIAL 5-2 DAY PROGRAMMING MODE Mode selection The 44-800 can control both heating and cooling. Touch the Mode box to cycle through and select available modes. Based on equipment and thermostat configuration, mode selection can be as follows: Off - Thermostat will not call for heating Heat Set or cooling. -
Page 9: Fan Selection
RESIDENTIAL 5-2 DAY PROGRAMMING MODE Fan selection Touch the Fan box to select Automatic or Always On fan mode. In Automatic mode, the fan operates with a heating or cooling call. If set to Always On, the fan will run continuously. If the thermostat is turned Off while the fan is set to Always On, the fan will switch to Automatic mode but can be set back to Always On for constant ventilation when the thermostat is Off. -
Page 10: Programming 4 Daily Events
RESIDENTIAL 5-2 DAYPROGRAMMING MODE Programming 4 daily events (5-2 schedule) Touch and hold the Program box until the UP and DOWN arrows along with the flashing days of the week appear. The program format starts with Monday through Friday. You will now be able to program four schedules per day with individual heating and cooling setpoints for all five days of the week. - Page 11 RESIDENTIAL 5-2 DAY PROGRAMMING MODE Touch the Program box again and the start time for the Morning program will appear and the hour will flash. Use the UP and DOWN arrows to adjust the Morning start time hour. Touch the Program box again and the minutes will flash. Use the UP and Down arrows to adjust the minutes in 10 minute increments.
- Page 12 RESIDENTIAL 5-2 DAY PROGRAMMING MODE Touch the Program box again and the Morning Heat Set temperature will appear and flash. Use the UP and DOWN arrows to change the heating setpoint. Mon Tue Wed Thu Fri Heat Set Morning...
- Page 13 RESIDENTIAL 5-2 DAY PROGRAMMING MODE Touch the Program box again and the Morning Cool Set temperature will appear and flash. Use the UP and DOWN arrows to change the cooling setpoint. Repeat the same steps for the Day, Evening and Night programs. After the Night Cool Set temperature is confirmed, touch the Program box again and Saturday and Sunday (Sat Sun) will flash.
-
Page 14: Factory Default Schedule
RESIDENTIAL 5-2 PROGRAMMING MODE After the Saturday and Sunday Night Cool Set temperature is confirmed or Programmable Fan (if used), the thermostat will resume normal operation in approximately 20 seconds. All scheduled events will be saved in non-volitile memory. Residential 5-2 Day Factory Default Schedule Start Time Set Temperature Schedule... -
Page 15: Residential 7-Day Programming Mode
RESIDENTIAL 7-DAY PROGRAMMING MODE Setting the clock Touch the clock on the display. The day of the week will flash. Use the UP and DOWN arrows to adjust the day. Touch the clock again. The hour will flash. Use the UP and DOWN arrows to adjust the hour. -
Page 16: Mode Selection
RESIDENTIAL 7-DAY PROGRAMMING MODE Mode selection The 44-800 can control both heating and cooling. Touch the Mode box to cycle through and select available modes. Based on equipment and thermostat configuration, mode selection can be as follows: Heat Set Off - Thermostat will not call for heating or cooling. -
Page 17: Fan Selection
RESIDENTIAL 7-DAY PROGRAMMING MODE Fan selection Touch the Fan box to select Automatic or Always On fan mode. In Automatic mode, the fan operates with a heating or cooling call. If set to Always On, the fan will run continuously. If the thermostat is turned Off while the fan is set to Always On, the fan will switch to Automatic mode but can be set back to Always On for constant ventilation when the thermostat is Off. -
Page 18: Programming 2 Daily Events
RESIDENTIAL 7-DAY PROGRAMMING MODE Programming 4 daily events (7 individual days) Touch and hold the Program box until the UP and DOWN arrows along with the flashing days of the week appear. The program format starts with Monday. You will now be able to program four schedules per day with individual heating and cooling setpoints for each day of the week. - Page 19 RESIDENTIAL 7-DAY PROGRAMMING MODE Touch the Program box again and the start time for the Monday Morning program will appear and the hour will flash. Use the UP and DOWN arrows to adjust the Morning start time hour. Touch the Program box again and the minutes will flash. Use the UP and Down arrows to adjust the minutes in 10 minute increments.
- Page 20 RESIDENTIAL 7-DAY PROGRAMMING MODE Touch the Program box again and the Morning Heat Set temperature will appear and flash. Use the UP and DOWN arrows to change the heating setpoint. Heat Set Morning...
- Page 21 RESIDENTIAL 7-DAY PROGRAMMING MODE Touch the Program box again and the Morning Cool Set temperature will appear and flash. Use the UP and DOWN arrows to change the cooling setpoint. Repeat the same steps for the Day, Evening and Night programs. After the Night Cool Set temperature is confirmed, touch the Program box again and the copy symbol will appear.
- Page 22 RESIDENTIAL 7-DAY PROGRAMMING MODE each additional day. For example, you might want to copy the Monday schedule to Tuesday and Wednesday. Once you have selected the days, touch the Program key and the copy symbol will flash confirming that the Monday schedule has been copied to the additional days selected.
-
Page 23: Residential 7-Day Programming Mode
RESIDENTIAL 7-DAY PROGRAMMING MODE To skip the copy feature and advance to the next day, simply press the Program key after the copy symbol appears. You can program a different schedule for each day of the week. The factory default schedule is the same as the 5-2 programming mode. -
Page 24: Commercial Programming Mode
COMMERCIAL PROGRAMMING MODE Setting the clock Touch the clock on the display. The day of the week will flash. Use the UP and DOWN arrows to adjust the day. Touch the clock again. The hour will flash. Use the UP and DOWN arrows to adjust the hour. -
Page 25: Mode Selection
COMMERCIAL PROGRAMMING MODE Mode selection The 44-800 can control both heating and cooling. Touch the Mode box to cycle through and select available modes. Based on equipment and thermostat configuration, mode selection can be as follows: Heat Set Off - Thermostat will not call for heating or cooling. -
Page 26: Fan Selection
COMMERCIAL PROGRAMMING MODE Fan selection Touch the Fan box to select Automatic or Always On fan mode. In Automatic mode, the fan operates with a heating or cooling call. If set to Always On, the fan will run continuously. If the thermostat is turned Off while the fan is set to Always On, the fan will switch to Automatic mode but can be set back to Always On for constant ventilation when the thermostat is Off. -
Page 27: Programming 2 Events (7-Day Or 5-2)
COMMERCIAL PROGRAMMING MODE Programming 2 daily events (7 Day or 5-2 Schedule) Touch and hold the Program box until the UP and DOWN arrows along with the flashing days of the week appear. The program format starts with Monday for 7-Day programming and Monday through Friday for 5-2 programming. -
Page 28: Commercial Default Schedule
COMMERCIAL PROGRAMMING MODE Refer to the programming steps as outlined in the Residential 5-2 or 7-Day programming section. The only difference is that two schedules per day (Day and Night) will be programmed. Commercial Default Schedule Start Time Set Temperature Schedule 7 Days Per Week Heating... -
Page 29: Manual Mode
MANUAL MODE When the 44-800 is configured for manual mode, it provides set point adjustment, Mode and Fan selection only. The thermostat clock is hidden and no programming is necessary. Typical Manual Mode Display Heat Set Heat... -
Page 30: Basic Troubleshooting
TROUBLESHOOTING Display is blank - Check HVAC circuit breaker and reset if necessary. - Make sure power switch at HVAC system is on. - If thermostat is battery powered only, replace batteries. Heating or cooling - Touch MODE to set system to Heat or Cool. Set the heating does not respond temperature a few degrees above the space temperature or the cooling temperature a few degrees below the space... - Page 31 Smart Temp 20/1488 Ferntree Gully Rd Knoxfield Victoria 3180 www.thermostat.com.au...
