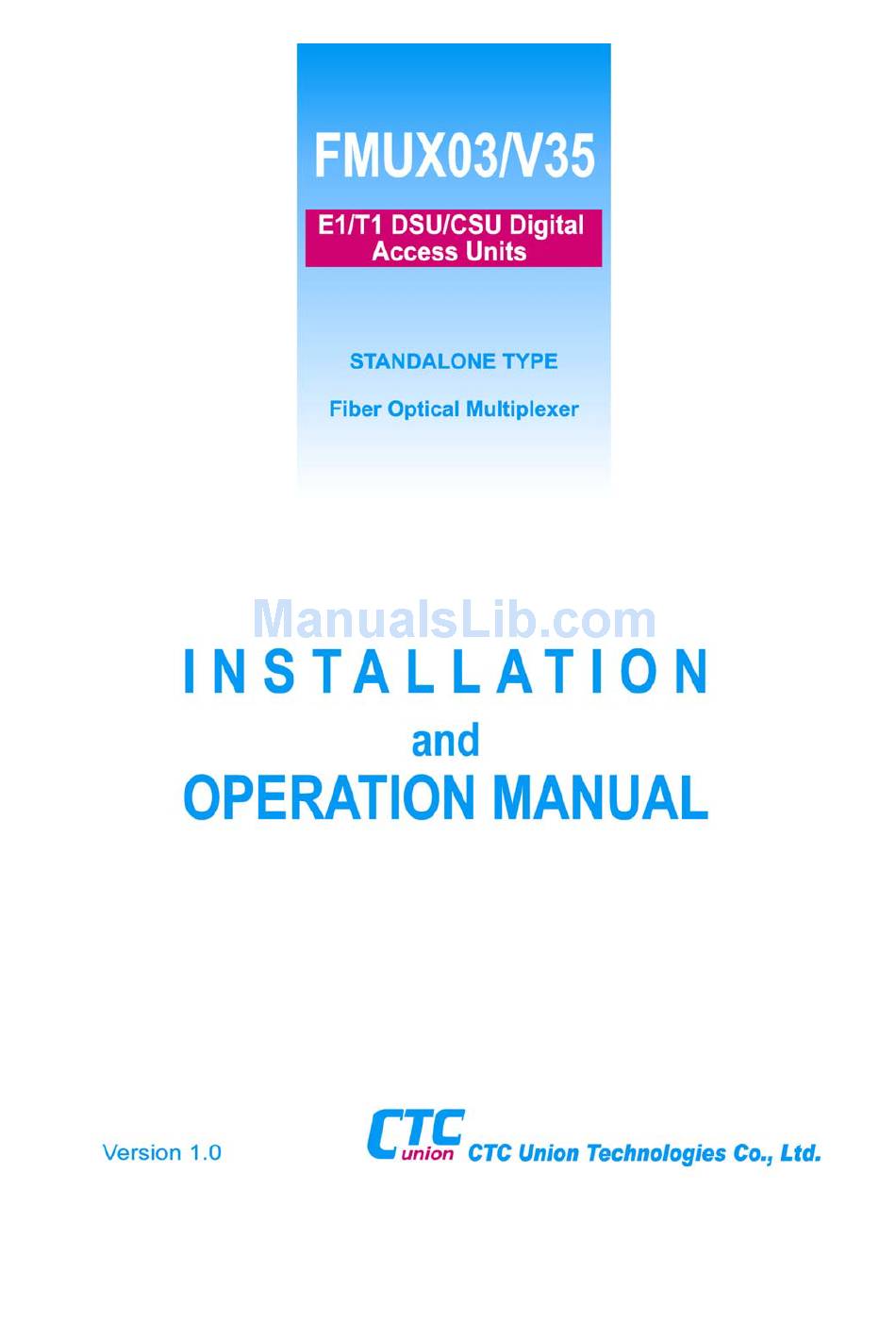

CTC Union FMUX03/V35 Installation And Operation Manual
  1. Manuals
  2. Brands
  3. CTC Union Manuals
  4. Multiplexer
  5. FMUX03/V35
  6. Installation and operation manual
CTC Union FMUX03/V35 Installation And Operation Manual

CTC Union FMUX03/V35 Installation And Operation Manual

Fiber optical
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FMUX03/V35 and is the answer not in the manual?

Questions and answers

Related Manuals for CTC Union FMUX03/V35

Summary of Contents for CTC Union FMUX03/V35

  • Page 2: Table Of Contents

    FMUX03/V35 Table of Content Chapter 1 Introduction………………………………….…………………… 1-1 Functional Description………………..……………………… 1-2 Application of FMUX03/V35………………………………… 1-3 Technical Specification …………………..….……………… 1-4 FMUX03/V35 Ordering information ..……………………….. Chapter 2 Installation ………………………………………………………… 2-1 Description…………………………………………….……… 2-2 Unpacking………………………………………….………… 2-3 Site Requirements………………………..…………………… 2-4 Site Selection……………….…………………………………. 2-5 AAC or DC Electrical Outlet Connection……………………..

  • Page 3: Chapter 1 Introduction

    FMUX03/V35 provides user-friendly functions for monitoring, maintaining, and configuring the unit using LCD panel and VT-100 remote terminal access. Its DC / AC selectable power source insures a quality and reliable power supply. CTC Union FMUX03/V35 provides the telecommunication industry a multipurpose and easy to use high quality fiber optics modem.

  • Page 4: Application Of Fmux03/V35

    FMUX03/V35 1-2 Application of FMUX03/V35 FMUX03/V35 is mainly used to extend the transmission distance of optical signal by multiplexing individual channels into a single optical stream using V.35 interface. In addition, FMUX03/V35 can connect a client equipment to a Central Office using V.35 interface.

  • Page 5: Technical Specification

    FMUX03/V35 1-3 Technical Specification V.35/V.36/EIA530A/RS232(V.28)/V.10/V.11/X.21/RS449 Interface Bit Rate: N*64K (N=1 to 32) up to 2M Number of Input Ports: V.35 ports Clock Source: Internal, DTE (selectable), Line Optical Interface Optical Source: 1310/1550 nm MLM Laser Number of Optical Links: 2 (1+1 auto protection switch) Output Power: >...
  • Page 6 Parity: None Data Bits: 8 bits Stop Bit: 1 Power DC: -36V ~ -72VAC: 90V ~ 288V(57Hz ~ 63Hz) Physical Specifications FMUX03/V35 Dimensions: Depth: 220 mm Width: 285 mm Height: 44.5 mm Optical Link: FC/PC or ST, Electrical Link: DB-25 female connector...

  • Page 7: Fmux03/V35 Ordering Information

    FMUX03/V35 1-4 FMUX03/V35 Ordering Information Options for Ordering information Optical Module 1310S 1310 nm single-mode, loop reach up to 45km (Single OE Module) > -12dBm 1550S 1550 nm single-mode, loop reach up to 75km (Single OE Module) > -12dBm 1310D 1310 nm single-mode, loop reach up to 45km (Dual OE Module) > -12dBm 1550D 1550 nm single-mode, loop reach up to 75km (Dual OE Module) >...

  • Page 8: Chapter 2 Installation

    2-2 Unpacking If there is a possibility for future relocation of the FMUX03/V35 unit, please save the cartons and protection packaging material. The following items are shipped with your FMUX03/V35: One FMUX03/V35 User’s Manual...

  • Page 9: Site Selection

    36 inches (90 cm) clearance in front and at least 4 inches (10.2 cm) at the rear. To avoid overheating, leave at least 1 inch (2.5 cm) on either side of FMUX03/V35. Also, do not stack another equipment on top of FMUX03/V35.

  • Page 10: Chapter 3 Operating Instructions

    Chapter 3 – Operating Instructions 3-1 Front Panel There are four parts to the front panel of FMUX03/V35: (1) Fiber Optics Connectors and Indicators: Notifies user of a problem such as LOS (Loss of Signal) and Laser LED (LSR). Includes a pair of...

  • Page 11: Rear Panel Control And Led Indicator Function

    If any newer alarm is reported after the ACO button has been pressed, the external alarm will activate again. Restart the system These three buttons serve as the control and configure ▼ buttons of FMUX03/V35 ▲...

  • Page 12: Rear Panel

    FMUX03/V35 Rear panel V.35 Connector AC & DC Power Power Alarm port Switch Craft V.35 Connector: Connects to V.35 interface. Craft: Craft terminal port. III. Power Switch: Controls On/Off of the equipment IV. There are 5 different power supply combinations with the SC/AC dual module power supply: AC only, DC only, dual AC, dual DC, AC/DC redundancy.

  • Page 13: Menu Tree

    FMUX03/V35 Menu Tree CTC Union FMUX03/V35 Profile 1.Download Default 2.Download Userdefined 3.Save Userdefined 4.Password Modify 5.Logout Configuration 1.Data port interface: V.35 2.OE1: Standby 3.OE2: Working 4.Switching: Disable 5.Data port Flow Control:OFF 6.Clock Source Internal, Line, DTE 7.Data Port Clock Invert:...

  • Page 14: Chapter 4 Operating And Setup Instructions

    The system will reset itself before downloading the user-defined settings. Modify Password: To prevent unauthorized login, user must enter a set of password to login to the system. The password for FMUX03/V35 is a combination of the buttons below, for left to right:...

  • Page 15: System Configuration

    Operator can view the status of alarm using this function. 4-4 Craft Port Operation Craft port allows user to monitor and configure FMUX03/V35 through a remote terminal emulator, such as VT-100. 4-5 How to connect and setup the craft port Connect the craft port to a remote terminal using DB-9 cable.

  • Page 16: Operating From The Craft Port

    FMUX03/V35 4-6 Operating from the Craft Port After properly connecting the craft port to a terminal, the system will prompt the user for password. The universal password is “1234.” User can access a function by typing its corresponding number into the remote terminal.
  • Page 17 FMUX03/V35 Main Menu Profile...
  • Page 18 FMUX03/V35 Configuration Alarm Status Report...
  • Page 19 FMUX03/V35 Status Report Data port clock source...
  • Page 20 FMUX03/V35 Data port clock invert Loopback...
  • Page 21 FMUX03/V35 Data rate N*64K N=1~32 N=01~08 64K~512K...
  • Page 22 FMUX03/V35 N=09~16 576K~1024K N=17~24 1088K~1536K...
  • Page 23 FMUX03/V35 N=25~32 1600K~2048K...

  • Page 24: Chapter 5 Loopback Test

    FMUX03/V35 Chapter 5 – Loopback Test 5-1 General Information This chapter contains detailed information on the loopback tests of the FMUX03/V35 equipment. User can activate the loopback function to diagnose the full service. Optical V.35 V.35 Local side Remote side...

  • Page 25: Loopback Test (For V.35 Tributary)

    FMUX03/V35 5-2 Loopback Test (For V.35 Tributary) There are four types of lookback functions for the optical module: optical local loopback and remote loopback & V.35 data port local loopback and remote loopback. Under the “Loopback” selection menu, user can select the channels to perform the loopback test.

  • Page 26: Appendix-A Db25 Male Connector To M34 Female Connector

    FMUX03/V35 Appendix A DB25 male connector To M34 female connector Pin number Signal Source M34 Female DB25 Male Cable Shield Transmit Data Receive Data Request To Send Clear To Send Data Set Ready Signal Ground Data Carrier Detect Receive Clock Return...
  • Page 27 FMUX03/V35 CTC Union Technologies Co., Ltd. Far Eastern Vienna Technology Center (Neihu Technology Park) 8F, No.60, Zhouzi Street Neihu, Taipei, Taiwan Phone:(886) 2.2659.1021 Fax:(886) 2.2799.1355 E-mail: info@ctcu.com http://www.ctcu.com...
