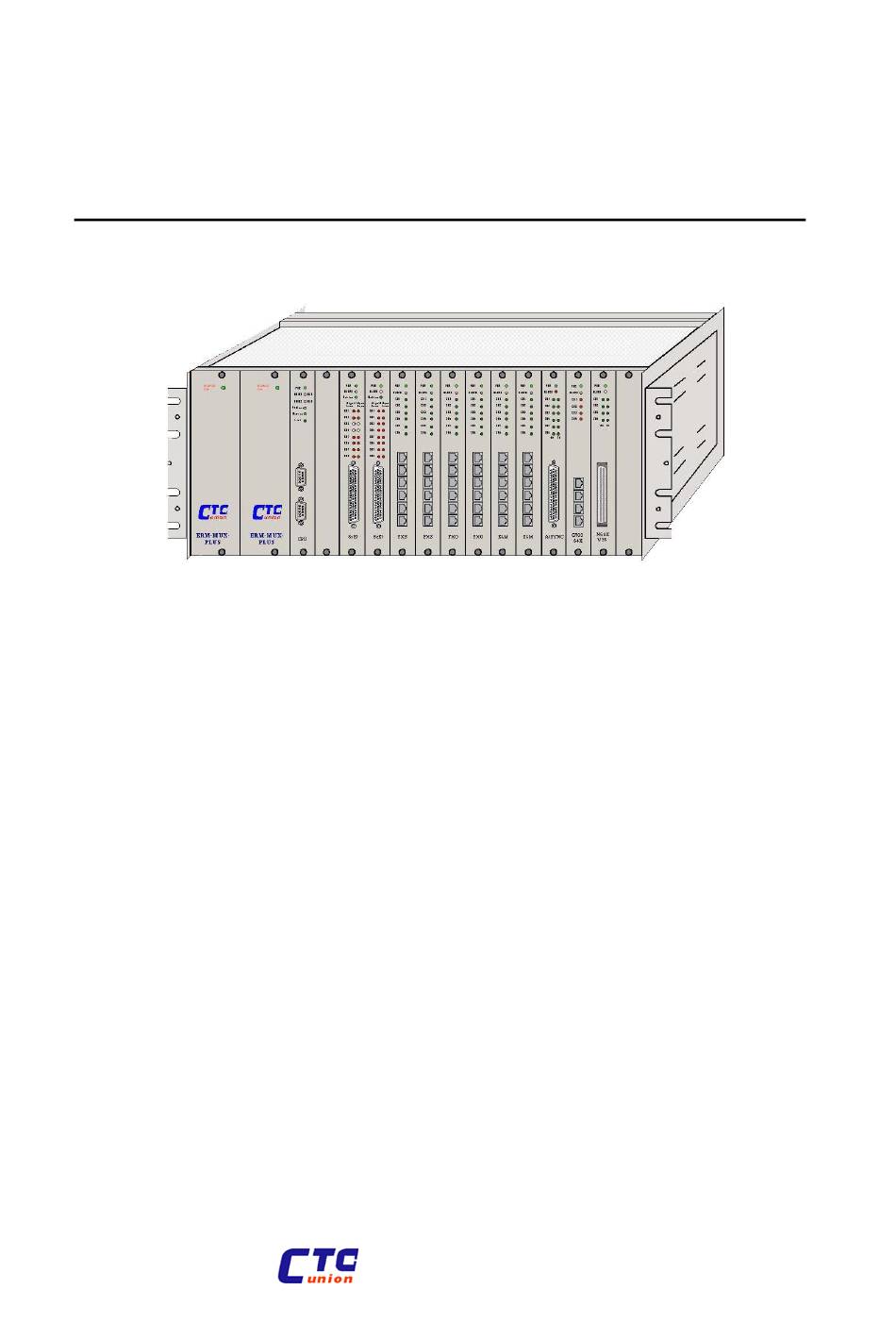

- Page 1 ERM-MUX/PLUS Multiplexer GUI Network Management Operation Manual CTC Union Technologies CO., LTD.
- Page 2 ERM-MUX/PLUS Multiplexer User Manual This page is intentionally left blank. Version Description Date Modify page 4 & page 5 (Login info.) 20150109 Page 5 screen shot change (SNMP 20150106 Manager) Review all document and revise all errors.
-
Page 3: Table Of Contents
ERM-MUX/PLUS Multiplexer User Manual SOFTWARE INSTALLATION ......................4 SOFTWARE OPERATION ......................4 ................4 UNNING ETWORK ANAGEMENT OFTWARE ................... 4 OGIN ETWORK ANAGEMENT OFTWARE ........................... 5 EGISTRATION ......................8 ETWORK OPOLOGY ......................11 EVICE ONFIGURATION 2.5.1 Overall Device Configuration ..................11 2.5.1.1... -
Page 4: Software Installation
ERM-MUX/PLUS Multiplexer User Manual ERM-MUX/PLUS Network Management Operation Manual 1. Software Installation Put the CD into the CD-ROM drive, open the disc content selection "eGUISetup.exe", double-click to run the installation. Follow the prompts to click "Next" until the last step, click "Finish". When the network management software installation is completed, the desktop will appear an icon shown "GUI... -
Page 5: Registration
ERM-MUX/PLUS Multiplexer User Manual Note: 1. In-band Net-Manager: CPU card NM Control interface (DB9) needs to connect with PC Serial Port. 2. SNMP Manager: SNMP interface (RJ45) at the rear panel of ERM-MUX-PLUS needs to connect with PC Ethernet port. - Page 6 ERM-MUX/PLUS Multiplexer User Manual Please contact your sales for software registration. The network management software registration binds with computer hardware and can be supported by e-mail. In "System" menu, select "Register, the software Register window will Pop-up. The PC hardware Serial number is shown.
- Page 7 ERM-MUX/PLUS Multiplexer User Manual The Software has a built-in e-mail function, once user completes the registration form, simply, click on "registration", the e-mail will be sent out. Once you receive the register key, type in the register key in software register...
-
Page 8: Edit Network Topology
ERM-MUX/PLUS Multiplexer User Manual The below Register Succeed window will be shown when you register successfully. Note: The unregistered version of the software will have the limitation on the usage of the time, but the function will not be limited. - Page 9 ERM-MUX/PLUS Multiplexer User Manual 2. After selecting the device, move cursor to network topology area, click the mouse left button, the properties of new device configuration window will be shown as below:...
- Page 10 ERM-MUX/PLUS Multiplexer User Manual 3. Configure the parameters for the properties of new device. When finishing, click “OK”. Then, click on “Net-Structure” from Main menu and select “Save Net-Structure”. Once the parameters are saved successfully, the screen appears as follows:...
-
Page 11: Device Configuration
ERM-MUX/PLUS Multiplexer User Manual 2.5 Device Configuration 2.5.1 Overall Device Configuration 2.5.1.1 Host Configuration Double-click the device graphic for further configuration. The GUI graphic shows the same physical device and display real-time LED for Data transmission conditions. Move cursor to display: LED name, line card name. Double-click the left mouse button on the line card for configuration, the GUI graphic shown as follows: 2.5.1.2... - Page 12 ERM-MUX/PLUS Multiplexer User Manual Name Description Select test channel，options for 2E1，4E1，8E1 Channel selection Test methods Disable, On-line test, off-line test 2＾9-1，2＾11-1，2＾15-1， Test Patterns None，Single，1E-3，1E-4，1E-5 Error Setup test time period，continue，15min，30min，one Test Period hour，24 hours Test Result Bit Error Bit Error Count...
-
Page 13: Clock Mode
ERM-MUX/PLUS Multiplexer User Manual Note: Off-line tests are used by remote loopback. Therefore, if you use loopback test in E1 time slot for network management, the device will lose remote CPE management access. 2.5.1.3 Clock mode The Device Clock modes have Internal Clock, IO Clock, G703, E1A1～E1A8 Recovery Clock. -
Page 14: Device Time
Parameter Backup Users can backup the configured parameters. By default, parameters are backup to the directory of ERM-MUX/PLUS file (or user-assigned directory) and saved. Users can click on the device in the network topology for back up. In the right button function of the mouse “Recovery device parameter setup”, users can restore the... - Page 15 ERM-MUX/PLUS Multiplexer User Manual (a) Status information display (DisplayeE1 Channel Related information) Status Remark Sync Local Sync Async Clock problem Sync Rem Sync Async Clock problem Interface or 2M line Loss Signal disconnect Channel Status Interface or 2M line Signal Normal...
- Page 16 ERM-MUX/PLUS Multiplexer User Manual Timeslot). When accessing Timeslot cross connection, move cursor to Timeslot in Timeslot table for Timeslot cross correction. Click on mouse right button and select “Timeslot Connect” in the table. Click on “Timeslot Connect” the Group Timeslot Connect configuration window shown as follows: “Source E1”...
-
Page 17: Fxo Card Configuration
ERM-MUX/PLUS Multiplexer User Manual 2.5.2.2 FXO Card Configuration Double click FXO line card graphic and enter FXO card configuration. The FXO graphic shown as follows: Note: Yellow means the current time slot reuse. Red means Timeslot used. When channel connection links up, the Interface status will change from Normal to... -
Page 18: Fxs Card Configuration
ERM-MUX/PLUS Multiplexer User Manual 2.5.2.3 FXS Card Configuration Double click FXS line card graphic and enter FXS card configuration. The FXS graphic shown as follows: Note: Yellow means the current time slot reuse. Red means Timeslot used. When channel connection links up, the Interface status will change from Normal to... -
Page 19: E&M Card Configuration
ERM-MUX/PLUS Multiplexer User Manual 2.5.2.4 E&M Card Configuration Double click E&M line card graphic and enter E&M card configuration. The E&MO graphic shown as follows: Channel TD and RD dB level Range from -20dB to 8dB in 0.5dB step. The available... -
Page 20: Async-128K Card Configuration
ERM-MUX/PLUS Multiplexer User Manual 2.5.2.5 RS232-ASYNC-128K and RS232-ASYNC-C Card Configuration Double click RS232-ASYNC-128K/RS232-ASYNC-C line card graphic, enter RS232-ASYNC-128K/RS232-ASYNC-C card configuration. RS232-ASYNC-128K/RS232-ASYNC-C graphic shown as follows Clock mode selection: Internal Clock and External Clock. The available Loop mode configuration includes No Loop, local loop, Remote loop,... -
Page 21: G703-64K Card Configuration
ERM-MUX/PLUS Multiplexer User Manual 2.5.2.6 G703-64K Card Configuration Double click G703-64K line card graphic and enter G703-64K card configuration. The G703-64K graphic shown as follows: The display shows the status of each channel, including clock mode, loop mode, work mode. -
Page 22: N×64K Card Configuration
ERM-MUX/PLUS Multiplexer User Manual 2.5.2.7 N×64K Card Configuration Double click Nx64K line card graphic and enter Nx64K card configuration. The Nx64K graphic shown as follows: Clock mode: Internal Clock and External Clock Loop mode: No Loop, local Loop, Remote Loop, Dual Loop... -
Page 23: Rs485 Card Configuration
ERM-MUX/PLUS Multiplexer User Manual 2.5.2.8 RS485 Card Configuration Double click RS485 line card graphic and enter RS485 card configuration. The RS485 graphic shown as follows: Loop Mode: No Loop, Local Loop, Remote Loop, Dual Loop... -
Page 24: Et100-V4 Card Configuration
ERM-MUX/PLUS Multiplexer User Manual 2.5.2.9 ET100-V4 Card Configuration Double click ET100-V4 line card graphic and enter ET100-V4 card configuration. The ET100-V4 graphic shown as follows: Auto Negotiation: DISABLE, ENABLE Communication mode: Full Duplex, Half Duplex Speed: 10Mbps or 100Mbps Flow Control: DISABLE, ENABLE... -
Page 25: System Function
ERM-MUX/PLUS Multiplexer User Manual 2.5.3 System function 2.5.3.1 Lock System Click “File” from menu bar and select “Lock System”. The configuration will be hidden and only administrator has the right to unlock. Click on “Exit System” to unlock the system. The System window shown as follows: 2.5.3.2... -
Page 26: Poll Time Configuration
ERM-MUX/PLUS Multiplexer User Manual 2.5.3.3 Poll Time Configuration Polling time is to set up the time period for accessing the device from the network management. The default value is 3000ms. The Setting Poll Time Window shown as follows: Configure Polling time 2.5.3.4... -
Page 27: Event Log
ERM-MUX/PLUS Multiplexer User Manual 2.5.3.5 Event Log “Event Log” function table provides “Event Manager” and “Export to Excel file” function. The window shown as follows: The major purpose of Event log is to record device Alarms and setting status. -
Page 28: Incident Count
ERM-MUX/PLUS Multiplexer User Manual 2.5.3.5.1 Incident Count Select “Log” from the window for Incident search shown as follows: Click on “incident Count” to access incident search. Setup “Begin” and “End”, then you can view all incidents in the defined range. You also can search incidents by date, by conditions or by device name and event types. -
Page 29: Filter Log
ERM-MUX/PLUS Multiplexer User Manual 2.5.3.5.2 Filter Log Under the “View” table, select “Filter Log”. “Filter Log” is to help users quickly search the desired event log shown as below: 2.5.3.5.3 Alarm Level “Option” table allows users to setup device interface card's Alarm level and Alarm indication. -
Page 30: Operator
ERM-MUX/PLUS Multiplexer User Manual 2.5.3.5.4 Operator “Operator” can set up different types of user account for management: Administrator: Maintenance network management software, Add, Configure, Delete network devices Device Manager: Add, Configure, Delete Network devices Operator: Configure network devices Standard User: View only... - Page 31 ERM-MUX/PLUS Multiplexer User Manual...
