63-100
Dust Extractor
Dry Use Vacuum System
with 12 Gallon Capacity
4001824
Operator's Manual
Record the serial number and date of purchase in your manual for future reference.
Serial Number: _________________________
Date of purchase: _________________________
For technical support or parts questions, email techsupport@rikontools.com or call toll free at (877)884-5167
www.rikontools.com
63-100M2
Advertisement
Table of Contents
Related Manuals for Rikon Power Tools 63-100
Summary of Contents for Rikon Power Tools 63-100

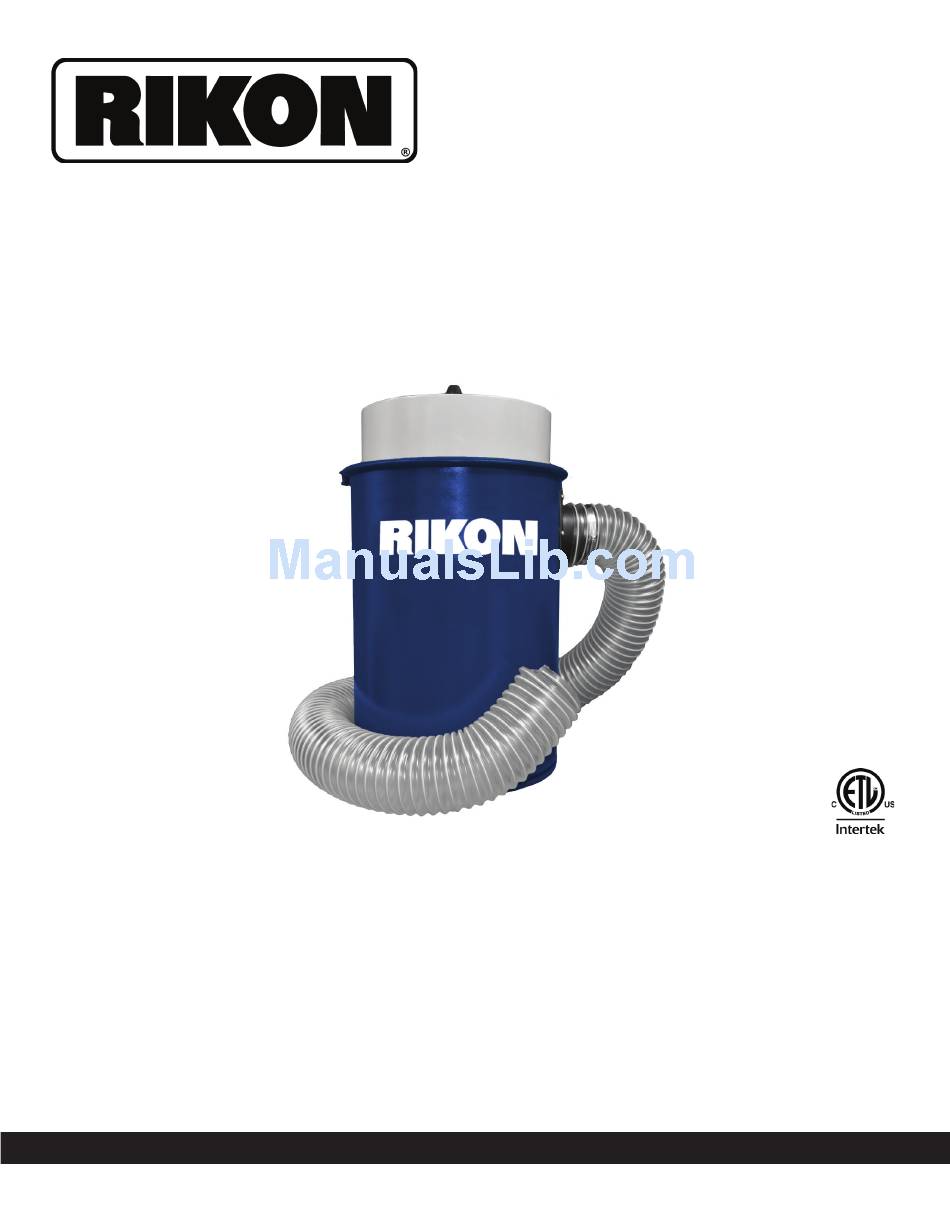

- Page 1 63-100 Dust Extractor Dry Use Vacuum System with 12 Gallon Capacity 4001824 Operator’s Manual Record the serial number and date of purchase in your manual for future reference. Serial Number: _________________________ Date of purchase: _________________________ For technical support or parts questions, email techsupport@rikontools.com or call toll free at (877)884-5167 www.rikontools.com...
-
Page 2: Table Of Contents
Changes and improvements may be made at any time, with no obligation on the part of Rikon Power Tools, Inc. to modify previously delivered units. Reasonable care has been taken to ensure that the information in this manual is correct, to provide you with the guidelines for the proper safety,... -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS IMPORTANT! Safety is the single most important consideration in the operation of this equipment. The following instructions must be followed at all times. Failure to follow all instructions listed below may result in electric shock, fi re, and/or serious personal injury. There are certain applications for which this tool was designed. - Page 4 SAFETY INSTRUCTIONS 12. KEEP PROTECTIVE GUARDS IN PLACE AND IN 25. ALWAYS WEAR A DUST MASK TO PREVENT WORKING ORDER. INHALING DANGEROUS DUST OR AIRBORNE PARTICLES, including wood dust, crystalline silica dust 13. AVOID ACCIDENTAL STARTING. Make sure that and asbestos dust. Direct particles away from face and the power switch is in the “OFF”...
-
Page 5: Electricals & Wiring Diagram
SAFETY INSTRUCTIONS EXTENSION CORDS ELECTRICAL SAFETY THE USE OF AN EXTENSION CORD THIS TOOL MUST BE GROUNDED WITH THIS MACHINE IS NOT RECOMMENDED. For WHILE IN USE TO PROTECT THE OPERATOR FROM best power and safety, plug the machine directly into a ELECTRIC SHOCK. - Page 6 SAFETY INSTRUCTIONS SPECIFIC SAFETY INSTRUCTIONS FOR DUST COLLECTORS 1. Do not operate this machine until you have read all of the following instructions. 2. Do not attempt to operate this machine until it is completely assembled. 3. Do not turn ON this machine if any pieces are missing. 4.
-
Page 7: Getting To Know Your Machine
Dust Hose Inlet Hose Clamp CONTENTS OF PACKAGE Model 63-100 Dust Extractor is shipped complete in one box. Unpacking and Clean-up 1. Carefully remove all contents from the shipping carton. Compare the contents with the list of contents to make sure that all of the items are accounted for, before discarding any packing material. -
Page 8: Assembly
Slotted Screwdriver - 5mm Hex Wrench The 63-100 Dust Extractor is a DRY USE ONLY vacuum system. It is NOT to be used for water clean-up. Any use beyond its intended purpose could cause failure or injury, and will void any written or implied warranty. - Page 9 ASSEMBLY 2. Fold the top edges of the paper filter bag 3. Push the filter assembly down onto the motor down inside of the cartridge filter. FIG. 2. body, making sure that it is fully seated and secure. FIG. 3. FIG.
-
Page 10: Maintenance
MAINTENANCE THE MACHINE MUST NOT BE PLUGGED IN AND THE POWER SWITCH MUST BE IN THE 'OFF' POSITION UNTIL ASSEMBLY IS COMPLETE. Inspecting the Filters The filters should be inspected every time the dust collector canister is emptied, and particularly if any reduction in performance is noted. - Page 11 MAINTENANCE THE MACHINE MUST NOT BE PLUGGED IN AND THE POWER SWITCH MUST BE IN THE 'OFF' POSITION UNTIL ASSEMBLY IS COMPLETE. 3 MOUNTING Tools Required for Service SCREWS #2 Phillips Screwdriver Replacing Motor Brushes The motor’s carbon brushes should not need replacing for at least 2,000 hours.
-
Page 12: Parts Diagram
PARTS DIAGRAM NOTE: Please reference the Manufacturer’s Part Number when calling for Replacement Parts. For Parts under Warranty, the Serial Number of your machine is required. -
Page 13: Parts List
PARTS LIST KEY NO. DESCRIPTION MFG. PART NO. P63-100-1 Switch Pan Head Screw M4X10 P63-100-2 Switch Mounting Plate P63-100-3 Lid Cover P63-100-4 M16 Strain Release P63-100-5 Power Cord P63-100-6 Hex Nut P63-100-7 P63-100-8 Packing Washer P63-100-9 Motor Packing Washer P63-100-10 Motor Assembly P63-100-11 Motor Brush Assembly... -
Page 14: Notes
WIRING DIAGRAM This machine must be grounded. Replacement of the power supply cable should only be done by a qualifi ed electrician. See page 5 for additional electrical information. NOTES Use this section to record maintenance, service and any calls to Technical Support: ACCESSORIES 63-920 Paper Filter Bags (5 63-900 Mobility Wheel Kit... -
Page 15: Warranty
WARRANTY... - Page 16 63-100 For more information: 16 Progress Rd Billerica, MA 01821 877-884-5167 / 978-528-5380 techsupport@rikontools.com www.rikontools.com 63-100M2...
