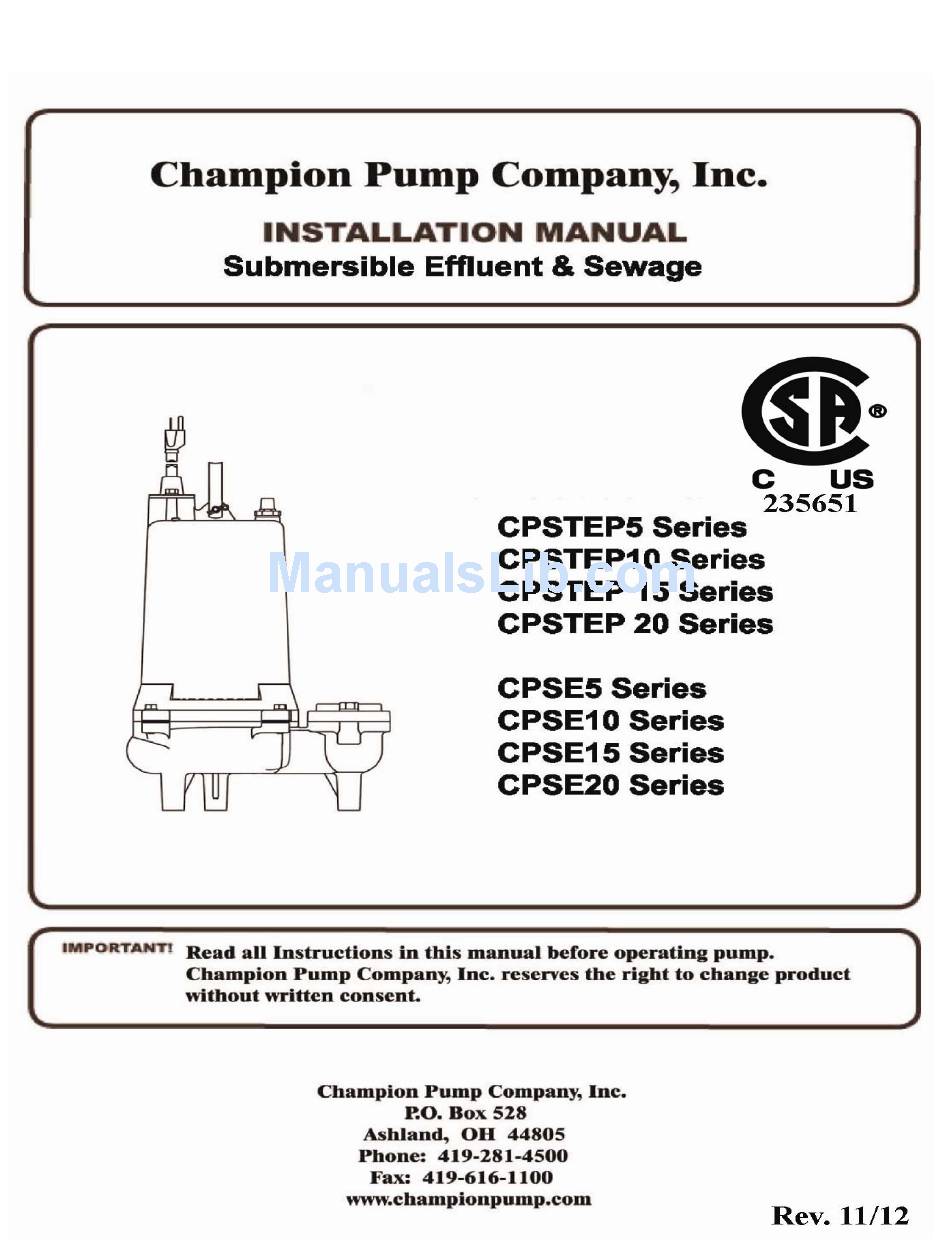

- Page 3 USER GUIDE Congratulations on your purchase of a Champion Pump. With proper care and by following a few simple guidelines, your pump will give you many years of dependable service. USE & CARE The Champion Effluent & Sewage pumps are designed to handle routine, domestic effluent & sewage.
-
Page 4: Electrical Connections
USER GUIDE INSTALLATION Assemble discharge piping or hose assembly to the pump. Discharge piping should be as short as possible. Both a check valve and a shut off valve are required for each pump being used. The check valve is used to prevent backflow into the sump. - Page 5 USER GUIDE SERVICE Lubrication: Anytime the pump is removed from operation, the cooling oil in the motor housing should be checked visually for oil level and contamination. Checking Oil: To check oil in the motor housing, set pump upright. Remove plug from motor housing. With a flashlight, visually inspect the oil in the motor housing to make sure it is clean and clear, light amber in color and free from suspended particles.
-
Page 6: Troubleshooting
TROUBLE SHOOTING CAUTION! Always disconnect the pump from the electrical power source before handling. If the system fails to operate properly, carefully read instructions and perform maintenance recommendations. If operating problems persist, the following chart may be of assistance in identifying and correcting them: MATCH "CAUSE"... - Page 7 Page 7...
- Page 8 Page 8...
-
Page 9: Specifications
Specifications DISCHARGE……………CPSTEP 2”; CPSE..2”or3” NPT. SHAFT SEAL -(SINGLE SEAL) SOLIDS HANDLING…………...…Effluent ¾” Sewage 2” Carbon - Ceramic LIQUID TEMP……..……140 DEG. F. INTERMITTENT Buna-N-Elastomer MOTOR HOUSING…………………………….Cast Iron 300 Series Stainless Steel - Hardware VOLUTE…………………………………………Cast Iron SHAFT SEAL -(DOUBLE SEAL) SEAL PLATE……………………………………Cast Iron Tandem Double Mechanical IMPELLER………………………………………... - Page 11 Start-Up Report / Warranty Registration Please fill out the following questions as completely and accurate as possible. Please mail to Champion Pump Company, Inc. – P. O. Box 528 – Ashland, OH 44805. REPORTS THAT ARE NOT RETURNED CAN DELAY OR VOID WARRANTY.
