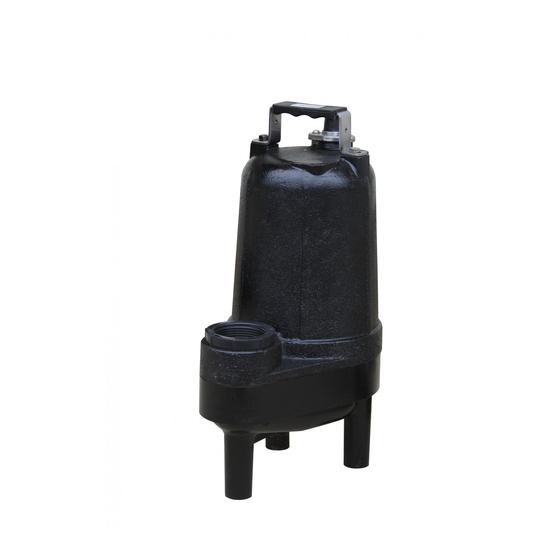

Champion Pump CPES Series Installation And Operation Manual

Thank you for purchasing this
series pumps are lighter weight with heavy duty performance submersible pumps.
We back these Champion products with Champion service and a Champion
attitude. Please read, save, and follow these instructions to ensure Champion
performance.
BEFORE OPERATION – Important Product and
Safety Information – WARNINGS –
and/or property damage could result if not adhered to.

Risk of Electric Shock – Fatal electric shock could occur. Always
disconnect the power source before attempting to install, service,
relocate or check the pump. Never touch pump, pump motor, water, or
discharge piping when pump is connected to electrical power. Never
enter a wet or flooded area, basement, basin, etc. that is in contact with
the pump or electrical circuit before power supply has been
disconnected.

Pump has not been investigated for use in swimming pool areas or any
area that might reasonably expect aquatic, animal, or human entrance.
Precautions should be taken to prevent such entrance during use.

Connect only to a properly grounded, grounding type receptacle. Use of
a ground fault circuit interrupter (GFCI) is required for maximum safety.

All wiring must be performed by qualified electrician in accordance with
all local and national electric code.

When power source or supply is turned off (in open position) a lock and
tag out should be used to prevent accidental power application or
activation.

Do not use extension cord or cut off grounding pin. Should be installed
on separate 15 AMP circuit breaker.
 Use only with a properly sized (input AMPS, volts, HP) motor controller.
 Do not use to pump flammable/explosive liquids such as gasoline, fuel
oil, kerosene, and /or chemicals, salt water, etc.

Do not use pump in an explosive atmosphere or classified as hazardous
per NEC, ANSI/NFPA 70.
 Make sure pump is on hard level bottom in sump, do not set directly on
earth, gravel, or other debris. This could cause excessive wear or
possible jamming and flooding.

Make sure pump is secure in basin and piping is firmly supported so that
pump cannot move, not allowing liquid level switch to interfere with
basin all or other obstacle preventing proper operation. Flooding or
overheating could occur if not prevented.
CHAMPION PUMP COMPANY
1102 Myers Pkwy. Ashland, Oh 44805
Installation and Operation Manual
Models: CPES3, CPES5, CPEW5
Submersible: Sump/Effluent, Sewage
CHAMPION PUMP!
1
The CPES and CPEW
Personal Injury
Phone: 419-281-4500
Fax: 419-616-1100
