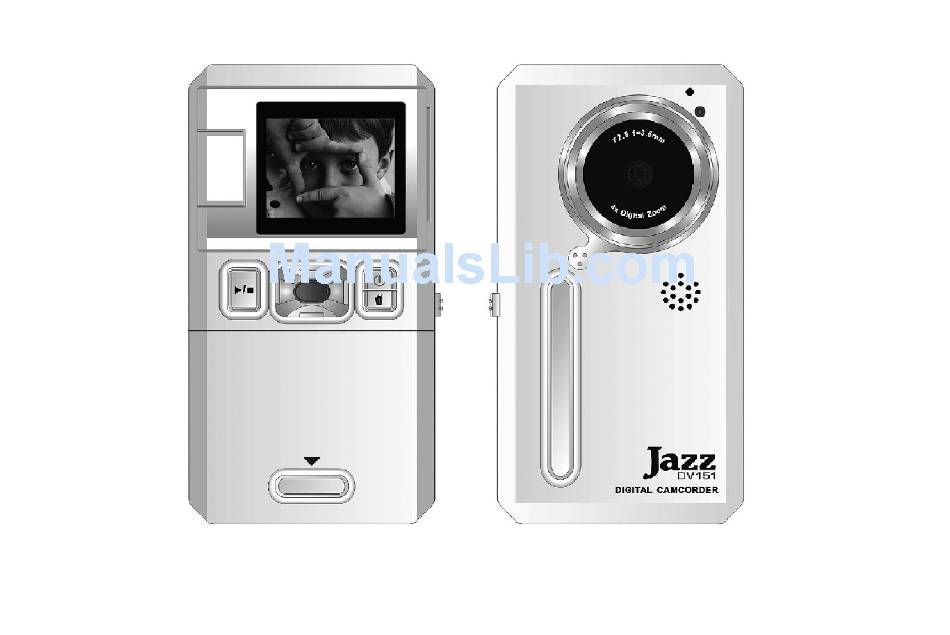

J
a
z
z
D
J
a
z
z
D
I
n
s
t
r
u
c
t
i
o
n
I
n
s
t
r
u
c
t
i
o
n
V
1
5
1
V
1
5
1
M
a
n
u
a
l
M
a
n
u
a
l

Advertisement

loading
Need help?

Need help?

Do you have a question about the DV151 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Jazz DV151

Summary of Contents for Jazz DV151

  • Page 2 Please read this Instruction Manual fully in order to become familiar with your camera; enjoy maximum performance and preserve its service life. Camera must first have 2 AA batteries and SD card (or MMC card) installed in order to operate. These are NOT supplied included. Video clips can be recorded only when card is inserted.

  • Page 3: Fcc Statement

    FCC statement FCC part 15.21 Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC part 15.105 Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.

  • Page 4: System Requirements

    Please note that your computer must comply with minimal system requirements as stated below in order to operate properly with your camera: System Requirements Operating Microsoft Windows Me, 2000, XP, Vista System Central Intel Pentium 166MHz or above Processing unit Available Above 128 MB Memory...
  • Page 5 Camera’s package contains Camera Applied CD user manual USB cable TV cable...
  • Page 6 Key definition: 1 LCD screen 2 Direction buttons 3 Playback/Stop button 4 Power on/off switch Shutter button 6 Delete button 7 Battery cover 8 Battery cover release 9 USB Slider Switch 10 Lens 11 Front cover trim patch 12 Busy light 13 Speaker 14 LCD (Fold out LCD panel) 15 SD/MMC Card slot...
  • Page 7 To open depress the Battery Cover release (8) and simultaneously slide down the Battery Cover (7). Insert two, fresh AA Alkaline batteries carefully matching battery polarity with the plus and minus terminal markings. Installing SD/MMC d (not supplied) Camera works with SD / MMC memory card up to 2GB capacity Insert card carefully into the SD / MCC Card Slot according to the Direction Mark.
  • Page 8 Ready to Rec…1.0x Time Left 00:33:17 Videos Saved 0000 When Battery level indicates low the camera will not record video; replace batteries as soon as possible. When Battery level is very low the camera will turn OFF after several seconds. You must replace the batteries.
  • Page 9 Press the Shutter Button to start recording a video clip. Digits on the screen display the elapsed time (in seconds, minutes) of recorded video clip. Press the Shutter Button again to stop recording. 00:00:01 Note: When “Memory Full” message appears on the screen, camera will not record any further video clips.
  • Page 10 Press the Playback / Stop button to switch to the Playback mode and observe messages on the LCD screen. Use Direction Buttons (Left / Right) to select desired video clip. Press Playback / Stop Button to play back or review the video clip, press the same button when you wish to stop video play back.
  • Page 11 Playback Mode Delete Video? Please Select File Delete ◄► 0016/0016 Time Length: 00:00:16 Time Length: 00:00:16 Videos Num: 16 Videos Num: 16 Fig.1 Fig.2 Fig.3 Note: Camera will “beep” (when Delete Button is pressed) to indicate that no video clips are stored in memory.

  • Page 12: Formatting The Memory Card

    Click and open My Computer, then select “Removable Disc” which represents your camera. Click and open Removable Disc to see file containing recorded video clips. Double click on selected video to play back the video on computer monitor. You may copy, move, save video clips file to any desired location in your computer – the same as you would do with any other file.
  • Page 13 Please note that formatting card will erase all previous data; download any valuable data, file or video BEFORE formatting the SD card. You may connect camera to your TV and watch / playback recorded video clips. Turn ON power of the camera. Use supplied AV cable and connect TV Output (on your camera) to Video Input (yellow connector) and Audio Input (red / white connector) on your TV.
  • Page 14 • Installing application software ◎ Insert supplied CD into your computer CD-ROM drive. Click button and follow the installation steps to install the Video Impression program. For Windows Vista, the following windows will pop up when installing the software. Please click to continue.
  • Page 16 Please restart your computer after installation.
  • Page 17 • Using VideoImpression 2 program icon on the desktop, or open VideoImpression 2 from Start → Programs. Double-click the...
  • Page 18 Import the photos in camera to Videoimpression: Connect the camera to computer to operate in removable disk mode Run the VideoImpression 2 software Refer to following chart to import the photos in camera using Videoimpression Detailed operation method of VideoImpression2 can be found in “Help” section of the program (as shown in the following figure).
  • Page 20 Batteries are depleted. Please reinstall new batteries. Camera can NOT be turned Batteries are installed incorrectly. Make sure that batteries are inserted carefully matching battery polarity with plus / minus terminal markings. Camera does The memory of the SD/MMC storage card is already record any further video full.
  • Page 21 • • Image sensor Sensor 300K pixels Function mode Video recording, playback, removable disc LCD screen 1.5” TFT LCD Video resolution 320x240 pixels, up to 30fps White balance Auto Exposure Auto File format Storage media External SD/MMC card, not supplied USB interface USB1.1 interface Power source...
