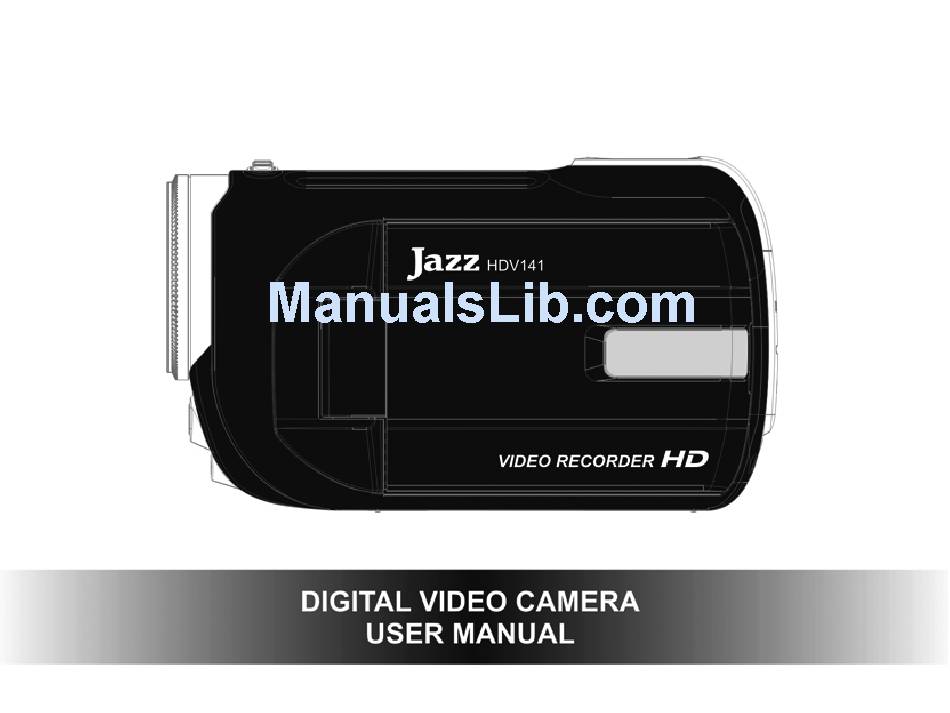

Jazz jdc77 HDV141 User Manual

Hide thumbs

Advertisement

0

Advertisement

loading

  Related Manuals for Jazz jdc77 HDV141

  Summary of Contents for Jazz jdc77 HDV141

  • Page 2: Table Of Contents

    Table of Contents: … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … …...
  • Page 3: Fcc Part 15.21

    HDV141 FCC part 15.21 Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC part 15.105 Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
  • Page 4: K N O W Y O U R C A M E R A

    Connect the equipment into an outlet on a circuit different from that to which the receiver is connected Consult the dealer or an experienced radio TV technician for help. Pertinent testing documentation is available for verification. Lens Lens selector Shutter key Busy light Power key OK button...
  • Page 5 Speaker Wrist strap loop Wrist strap hole Zoom in key Zoom out key USB/TV out port LED light Self timer indicator Tripod socket SD card slot LCD Screen...
  • Page 6: S T A R T T O U S E

    Please insert three fresh AAA batteries and SD/SDHC memory card to NOTE: operate the camera 1. Installing Batteries 1. Press the top and slide down the Battery Cover. 2. Insert three fresh AAA alkaline batteries; align polarity of terminals correctly. Keep the black ribbon placed under installed batteries;...
  • Page 7: Selecting Lens Mode

    option. The memory card will be formatted automatically. Please note that all DATA stored on SD card will be deleted during formatting. 3. Selecting Lens Mode Slide the Lens Selector to Normal or Macro position depending on the distance between the main subject and the camera. 1.
  • Page 8: Turning The Camera On And Off

    4. Turning the camera ON and OFF 1. Power ON: press the Power key for a second or two to turn the camera ON. 2. Power OFF: when the camera is active press the Power key to turn the power OFF. Auto Power OFF: the camera will turn OFF automatically when has been unused for 1 minute.
  • Page 9: Indicators / Led Lights

    will be added to “Properties” of each image and you can retrieve it using computer when camera is connected, or after images are downloaded into computer. Setting: Press the OK button then press Right Direction key to enter Setup Menu. Press Up and Down Direction key to select ‘Date &...
  • Page 10: Video Recording Mode

    photo, processing data, or being connected to computer. LED light – this supporting light may be used when recording video/ pictures in dark environment. Please note that this lamp is effective for short distances only. Self Timer light – indicates that the camera Self Timer has been activated. 8.
  • Page 11 3. Press the Shutter key to start recording video 4. To stop recording, press the Shutter key again. Note that camera will auto-stop recording when the SD memory card is full. 5. You may press Zoom IN / OUT buttons during recording to select desired zoom range.
  • Page 12: Camera Mode

    9. Camera mode: Preview mode Image resolution mode Exposure Value Self timer mode icon Image counter Camera Mode icon Zoom ratio range SD card icon; card inserted Self timer counter; photo Will be taken after 10 sec Battery icon LED light icon Shooting Photos 1.
  • Page 13 Setting the resolution for taken photo Press OK button to open the menu. Press Up or Down Direction key to select ‘Resolution’ option. Press Right Direction key. Press Up or Down Direction key to select the required resolution from available options shown: 5 Megapixel, 3 Megapixel or 1.3 Megapixel.
  • Page 14: Playback Mode

    Taking photo with special effect Press OK button to open the menu. Press Up or Down Direction key to select ‘Effect’ option. Press Right Direction key. Press Up or Down Direction key to select the required effect: Normal; B&W (Black and White);...
  • Page 15 You can also Zoom In / Out displayed photo by pressing the Zoom keys. After Zooming In you may press Left or Right direction key to enter into the “Pan” mode and view selected area of the image. Press the OK button to resume normal preview. Additional Playback options Select the Playback mode and press OK button to enter menu and you may choose among several available options:...
  • Page 16 Thumbnail mode • In PLAYBACK mode, press Zoom Out Key to select the “Thumbnail” format. • Press UP, DOWN, LEFT or RIGHT buttons to browse through images, then press OK (center button) to select image for an instant review. • Press Zoom In Key to enlarge and view image in full resolution.
  • Page 17 Adding the Voice memo for selected photo Switch the camera to Playback mode. Browse to the photo you wish to add voice memo. Press OK button and select ‘Voice Memo’ option by pressing Up Down Direction key Press Right Direction key and enter sub-menu options Scroll down and select the “Add”...
  • Page 18: Internal Setting Of The Camera

    1 Playback mode icon 2 Image counter 3 Voice Memo indicator 4 PHOTO file indicator 5 Playing time 6 Control panel for playing voice memo Press the Shutter key to start playing the voice Memo of the photo (with added voice memo), or press OK key to stop playing.
  • Page 19: Setting The Start-Up Image

    taken image / photo as the Start-up Image. Format: Format the SD/MMC card (see Section 2: Using the SD Card). Reset all: Reset all the options to default values (manufacturer’s setting). Setting the Start-up Image: Select Playback mode and select a photo to be set as the “Start-up Image” Press OK key and use Up / Down keys to select ”Start-up Image”...
  • Page 20: C O N N E C T I N G C A M E R A T O T H E C O M P U T E R

    Off – Only the “blank” screen will be displayed during turning camera ON. System – The Default Image will be displayed as the Start-up Image My Image – Camera will use your selected photo as the Start-up Image. Note that if you select and execute the “Reset All” (from Internal Setting) option, this will also activate the Default Start-up Image according to manufacturer’s setting.
  • Page 21 (If the screen does not appear as the auto-run, please click on SoftwareInstaller.exe under the CD-ROM drive icon on the computer.) Follow on-screen instructions and complete installation.
  • Page 23: Using Camera With The Computer

    After installation, please restart the computer. 2. Using camera with the computer - Use the supplied USB cable and connect camera to the computer, open camera screen and turn the power ON. - Open “My Computer,” then select the Removable Disc. Usually, the highest nomination (indicated by alphabetic letters) of the Removable Disc will identify your connected camera.
  • Page 24 After starting MediaImpression, click “Import” to import the media.
  • Page 25 Choose the video camera storage and choose the output location. Choose require file and click the import, selected file will be stored in the output location.
  • Page 26 Click “Go to start page” to return the main screen, click the “Video” or “All media” to use the “YouTube” function. Choose file and click the “upload to YouTube”.
  • Page 27: Connecting Camera Totv

    Enter your YouTube username and password to login and execute uploading video. Connecting camera toTV You may also display all photos and recorded video on typical TV set. 1. Use AV cable (supplied with camera) and connect camera with TV. 2.
  • Page 28 Video resolution 720P: 1280x720 pixels, VGA: 640x480 pixels, QVGA: 320×240 pixels Picture resolution 1.3, 3 and 5 Megapixel Lens F3.1 f=6.5mm Normal: 5 feet ~ infinity; Macro: 6” – 10” Focus settings Digital zoom 4× LCD display screen 1.8〞TFT color LCD screen Memory card support SD Memory card, up to 8GB capacity (Memory Card not supplied) Video storage...
  • Page 29: System Requirements

    System Requirements Operating System Microsoft Windows XP, Vista, 7 Central Processing unit Intel Pentium III 1GHz or CPU of equal or higher performance Memory 512 MB or higher Sound Card, Display Card The sound card and the display card shall support DirectX8 or higher version.
