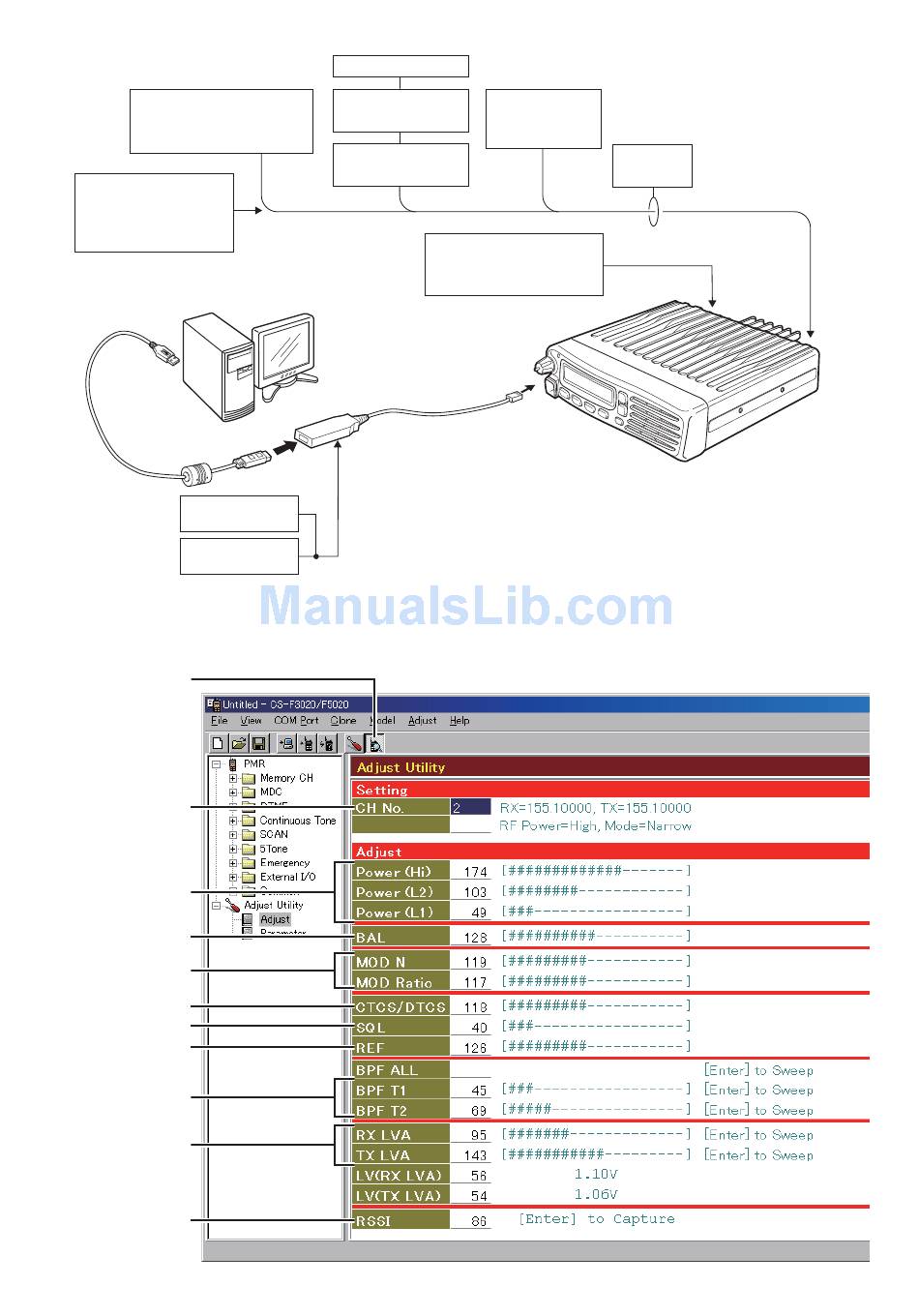

M CONNECTION
Standard signal generator
–90 to +90 dBµ
(–127 to –17 dBm)
CAUTION:
DO NOT transmit while
SSG is connected to
the antenna connector.
to USB port
AC millivoltmeter
Audio generator
M ADJUSTMENT UTILITY WINDOW (example)
Click to open the
"I/O Check window"
ADJ. CHANNEL
TX POWER
MOD. BALANCE
DEVIATION
CTCSS\DTCS
SQUELCH
REF. FREQUENCY
RX SENSITIVITY
LOCK VOLTAGE
RSSI
(S3 and S1 level)
Oscilloscope
Modulation analyzer
(DC measurable)
Attenuator
40 dB or 50 dB
PC
JIG CABLE
RF power meter
30 W [25 W ver.]
60 W [50 W ver.]
DC power supply
13.6 V / 15 A except [EUR]
13.2 V / 10 A [EUR]
to the MIC
connector
6 - 3
Frequency
counter
to the antenna connector
to DC cable
