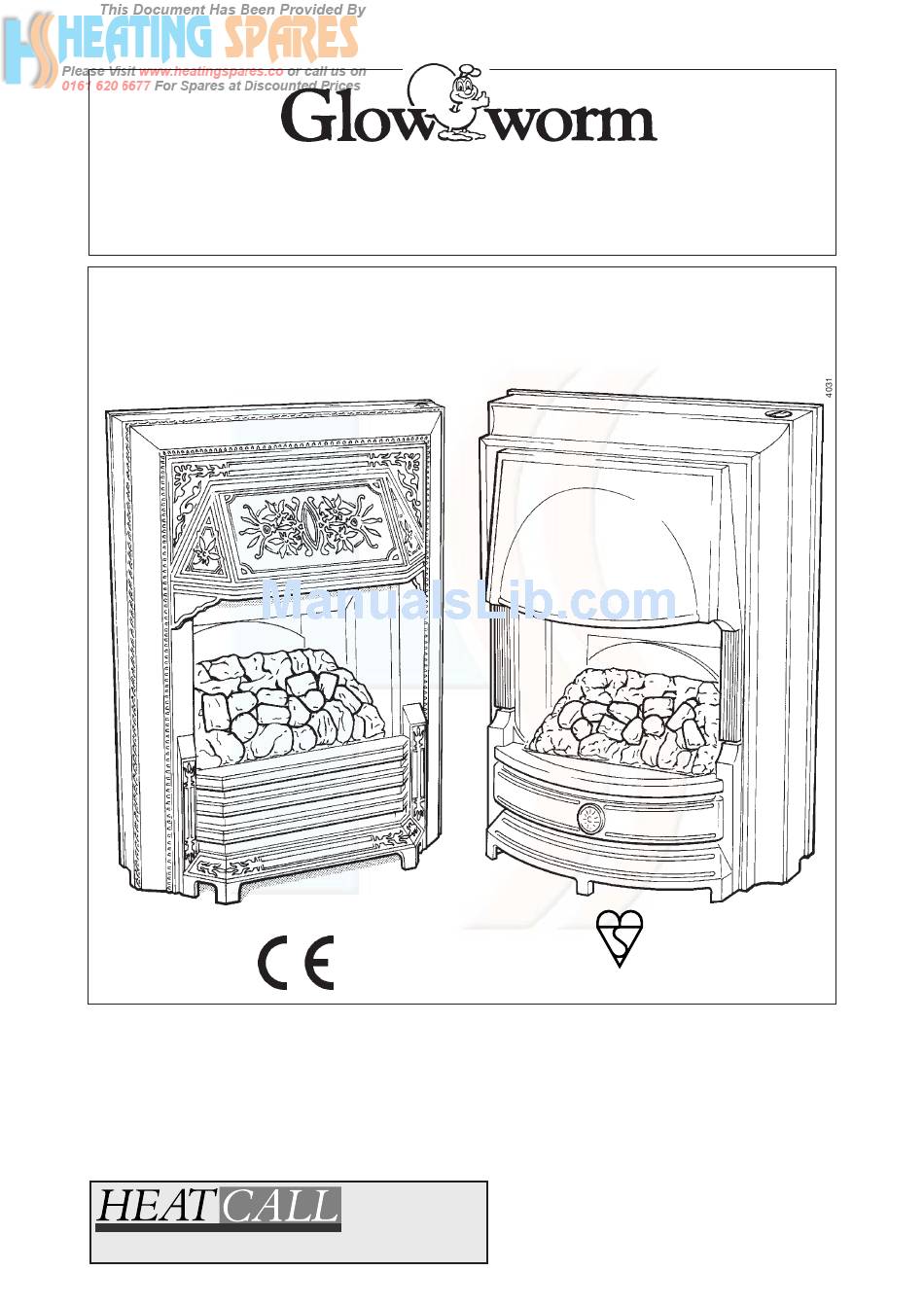

Installation and Servicing Instructions
REVIVAL
FIRE G.C. No. 37 315 16
Glow-worm 45F, 45FR, 56F or 56FR
One Contact Total Service
Supplied By www.heating spares.co Tel. 0161 620 6677
To b e l e f t w i t h t h e u s e r
This is a Cat I
For use with
Back Boiler Units
Customer Services:
Tel: (01773) 828100
Fax: (01773) 828070
FIREBLAZE
FIRE G.C. No. 37 315 14
Appliance
BS 6332
2H
BS 5258
Hepworth Heating Ltd.,
Nottingham Road, Belper, Derbyshire. DE56 1JT
General/Sales enquiries:
Tel: (01773) 824141 Fax: (01773) 820569
220562A.05.95
