Installation and Servicing
Miami GF
G.C. No. 32- 047- 05

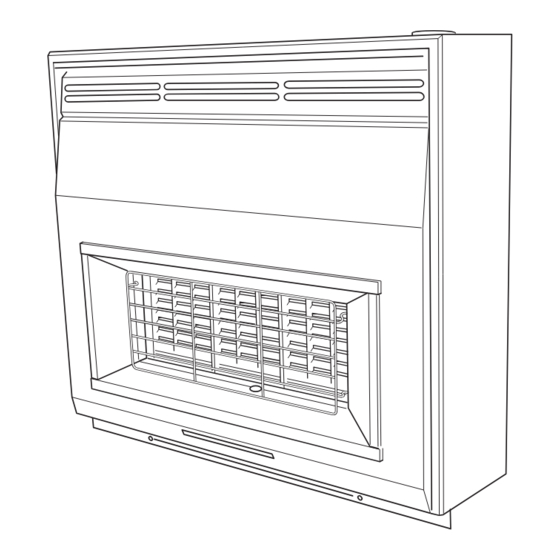

Radiant Convector Gas Fire
This is a Cat I
Reference in these instructions to British Standards and Statutory
Regulations/Requirements apply only to the United Kingdom.
For Ireland the rules in force must be used.
The instructions consist of three parts, User, Installation and Servicing Instructions, which includes the Guarantee Registration
Card. The instructions are an integral part of the appliance and must, to comply with the current issue of the Gas Safety
(Installation and Use) Regulations, be handed to the user on completion of the installation.
Glow-worm appliances' are manufactured to the very highest standard so we are pleased to offer our customers'
In the center pages are to be found your Guarantee Registration Card, which we recommend you complete and
If this card is missing you can obtain a copy or record your registration by telephoning the Heatcall Customer
Our Guarantee gives you peace of mind plus valuable protection against breakdown by covering the cost of:
❏
✔
All replacement parts
❏
✔
All labour charges
❏
✔
All call-out charges
One Contact Local Service
Instructions for Use
To b e l e f t w i t h t h e u s e r
Appliance
2H
Guarantee Registration
Thank you for installing a new Glow-worm appliance in your home.
a Comprehensive First Year Guarantee.
return as soon as possible.
Service number 01773 828100.
REGISTER YOUR GLOW-WORM APPLIANCE
FOR 1ST YEAR GUARANTEE PROTECTION
CALL 0208 247 9857
Customer Services:
Tel: (01773) 828100
Fax: (01773) 828070
Hepworth Heating Ltd.,
Nottingham Road, Belper, Derbyshire. DE56 1JT
General/Sales enquiries:
Tel: (01773) 824141 Fax: (01773) 820569
221917C.06.02
Advertisement
Table of Contents
Related Manuals for Glow-worm Miami GF
Summary of Contents for Glow-worm Miami GF
- Page 1 Guarantee Registration Thank you for installing a new Glow-worm appliance in your home. Glow-worm appliances' are manufactured to the very highest standard so we are pleased to offer our customers' a Comprehensive First Year Guarantee. In the center pages are to be found your Guarantee Registration Card, which we recommend you complete and return as soon as possible.
-
Page 2: Table Of Contents
Important Information Certification This fire is certificated to the current issue of BS6332 part 2, invoking the current issue of BS5258 part 5 for safety and performance. It is, therefore, important that no alteration is made to the fire, without permission, in writing, from Hepworth Heating Ltd. Any alteration that is not approved by Hepworth Heating Ltd., could invalidate the certification, the warranty and could infringe the statutory requirements. -
Page 3: Instructions For Use
Instructions for Use SAFETY IF YOU SMELL GAS DON’T SMOKE EXTINGUISH ALL NAKED FLAMES DON’T TURN ELECTRICAL SWITCHES ON OR OFF TURN OFF THE GAS SUPPLY AT THE METER OPEN DOORS AND WINDOWS TO GET RID OF THE GAS IMMEDIATELY CALL THE GAS EMERGENCY SERVICE - SEE YOUR LOCAL TELEPHONE DIRECTORY For your Safety Always wait three minutes before attempting to relight if the fire... - Page 4 Instructions for Use SEE SAFETY INSTRUCTIONS 625mm 12mm MINIMUM 203mm 686mm EITHER SIDE Diagram 1 OPERATING YOUR FIRE Please Note When operating your fire for the first time, some vapours may be given off which may cause a slight odour and could possibly set off any smoke alarms in the immediate vicinity.
-
Page 5: Replacing Radiants
Instructions for Use Servicing To Turn the Fire Off Use only genuine Glow-worm parts. Buy them from a recognised Partially depress the knob and turn clockwise to off. supplier. Wait at least three minutes before attempting to relight. For all service enquiries please quote that the appliance is a Glow-worm Miami GF, GC No. -
Page 6: Installation Requirements
1 Installation Requirements SEE SECTION 1.10. 625mm 12mm MINIMUM 203mm 686mm EITHER SIDE Diagram 1.1 DIMENSIONS & CLEARANCES This appliance does not contain any component manufactured 1.2 Statutory Requirements from asbestos or asbestos related products. The installation must be in accordance with these instructions. The appliance data label is on the inner face of the back panel For the user’s protection, in the United Kingdom it is the law that at the lower left hand side. -
Page 7: Installation Requirements
1 Installation Requirements 1.3 Fire Location • If the fireplace opening is an underfloor draught type, it must be sealed to stop any draughts. NOT LESS THAN • The flue spigot and any spigot extension must be capable of 50mm passing through the closure plate by at least 25mm with a minimum clearance of 50mm between its open end and the nearest obstruction. -
Page 8: Precast Flues
1 Installation Requirements The flue must be clear of any obstruction and its base must be 1.6 Precast Flues clear of debris. • The appliance can be installed to a fireplace that has a properly The flue must be completely sealed so that combustion products constructed precast concrete or clay flue block system do not come into contact with combustible materials outside the conforming to BS1289 or BS EN 1806. -
Page 9: Pre-Installation Preparation
2 Pre-installation Preparation 2.1 Unpacking This appliance is supplied completely assembled except for:- • 3 radiants which are in a cardboard pack inside the firebox. • The closure plate • Literature pack • An olive & olive nut for gas line connection Remove all the items carefully to prevent damage. -
Page 10: Closure Plate Installation
3 Closure Plate Installation 3.1 Closure Plate Details 460mm The closure plate details are shown in diagram 3.1. The closure plate has an opening at the bottom for a central gas feed pipe. The gap between the pipe and this opening should be sealed with tape after connection. -
Page 11: Appliance Installation
4 Appliance Installation 4.1 Hearth Mounting FLUE SPIGOT OPENING Place the fire centrally on the hearth making sure that the spigot lines up with the spigot hole in the closure plate. Gently slide the appliance into place. The spigot must enter the closure plate to 65mm FIRE C L a depth of at least 25mm. -
Page 12: Control & Pressure Checks
This monitoring system, or any of its parts, must only be the 1/IGN position. A spark should be generated at the pilot exchanged using Glow-worm authorised parts. while turning. The spark should ignite the pilot. When pilot ignition has been achieved, keep the control knob 5.3 Check Reference Pressure... -
Page 13: Spillage Check
7 Spillage Check 7.1 Spillage Check 2mm - 5mm INSIDE A spillage test must be made before the installed appliance RADIANT BOX LIP is left with the customer. Close all doors and windows in the room containing the fire. Light the appliance and set the control knob to the maximum position (Position 5). -
Page 14: Servicing & Parts Replacement
9 Servicing & Parts Replacement REMEMBER, When replacing a part on this appliance, use only 9.4 To Remove the Piezo Generator spare parts that you can be assured conform to the safety and Remove the outer case as section 9.2. performance specification that we require. - Page 15 9 Servicing & Parts Replacement 9.6 To Grease the Gas Tap Clean and grease the plug lightly with a suitable grease. Do not apply excessive grease. Particularly, make sure that the gas Remove the burner module as section 9.5. ports are not restricted by grease. Remove the circlip holding the piezo generator to the tap.
-
Page 16: Fault Finding
10 Fault Finding 10.1 Ignition Fault Finding Refer to diagram 10.1. 10.2 Flue Blockage Safety Device If the device operates it indicates there could be a problem with the chimney. First make sure air vents are free of obstructions, by carrying out spillage checks as section 7.1. If burner will not light, check the electrode lead connections are satisfactory and that the burner ports are clean.
