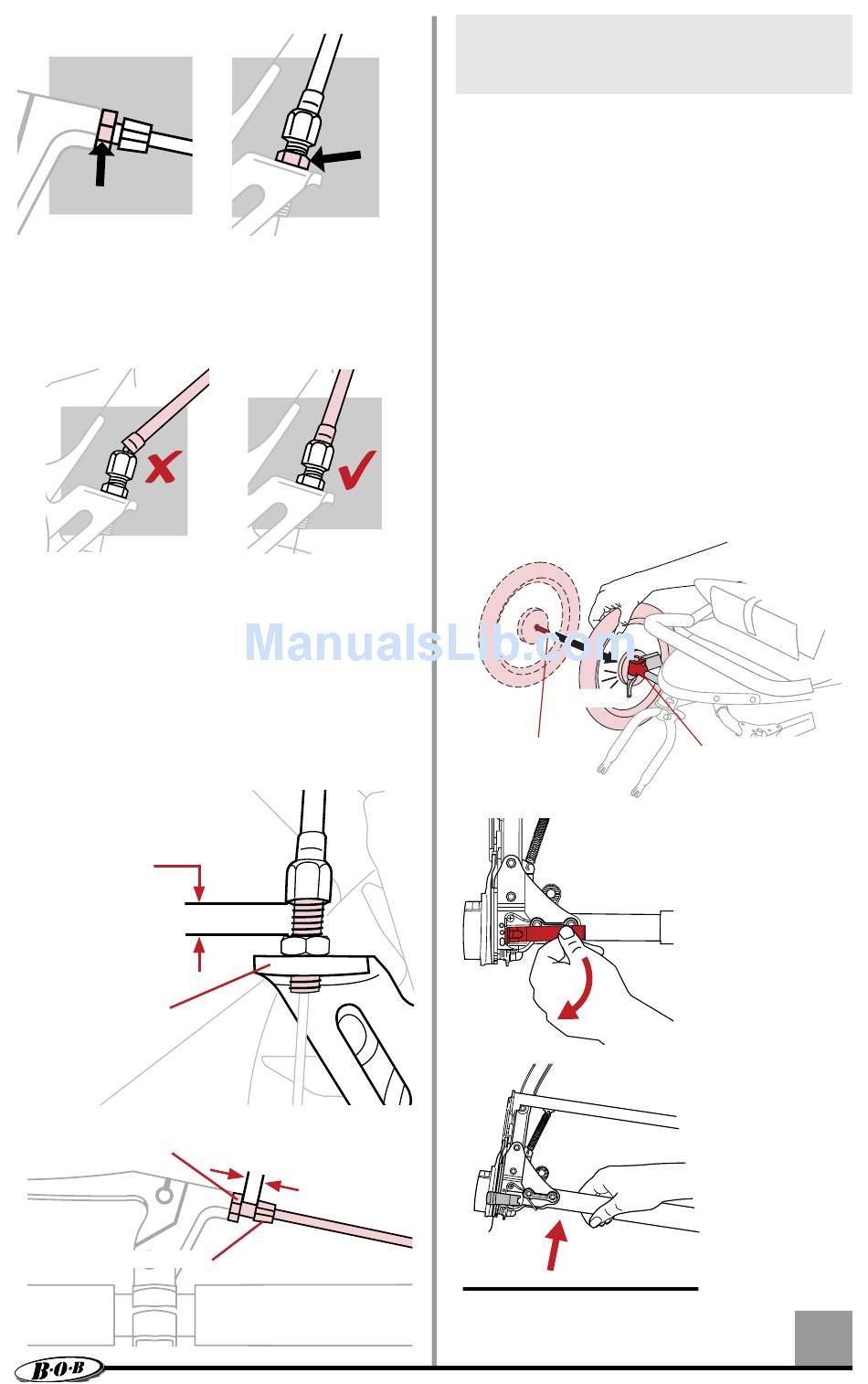

NOTE: Ensure that all brake cable
ends are properly located in the rel-
evant hole of the barrel adjusters.
IMPORTANT: Ensure that the gap
between the barrel adjuster and the
lock ring does not exceed 5 mm. If
the gap exceeds 5 mm, there is a risk
that the screw will shear with poten-
tial loss of braking function.
5mm
3/16"
max.
Brake Backplate
Lock Ring
Barrel Adjuster
REAR WHEEL INSTALLATION
(PRO MODEL)
Follow steps 1 and 2 from
(REAR WHEEL INSTALLATION)
section on page 7.
3. Insert Rear Wheel Stub Axle
Insert the rear wheel's stub axle into
the hole in the rear wheel attachment
bracket. If the axle does not slide in
easily, loosen the clamping lever ten-
sion adjusting nut by hand. Re-insert
the axle fully into the attachment
bracket until a "click" is heard. Adjust
tension nut and close clamping lever
as described in step 4 on page 8.
5mm
3/16"
max.
CLICK
Stub Axle
Rear Wheel
Attachment
Bracket
