Set Transmitter Frequency

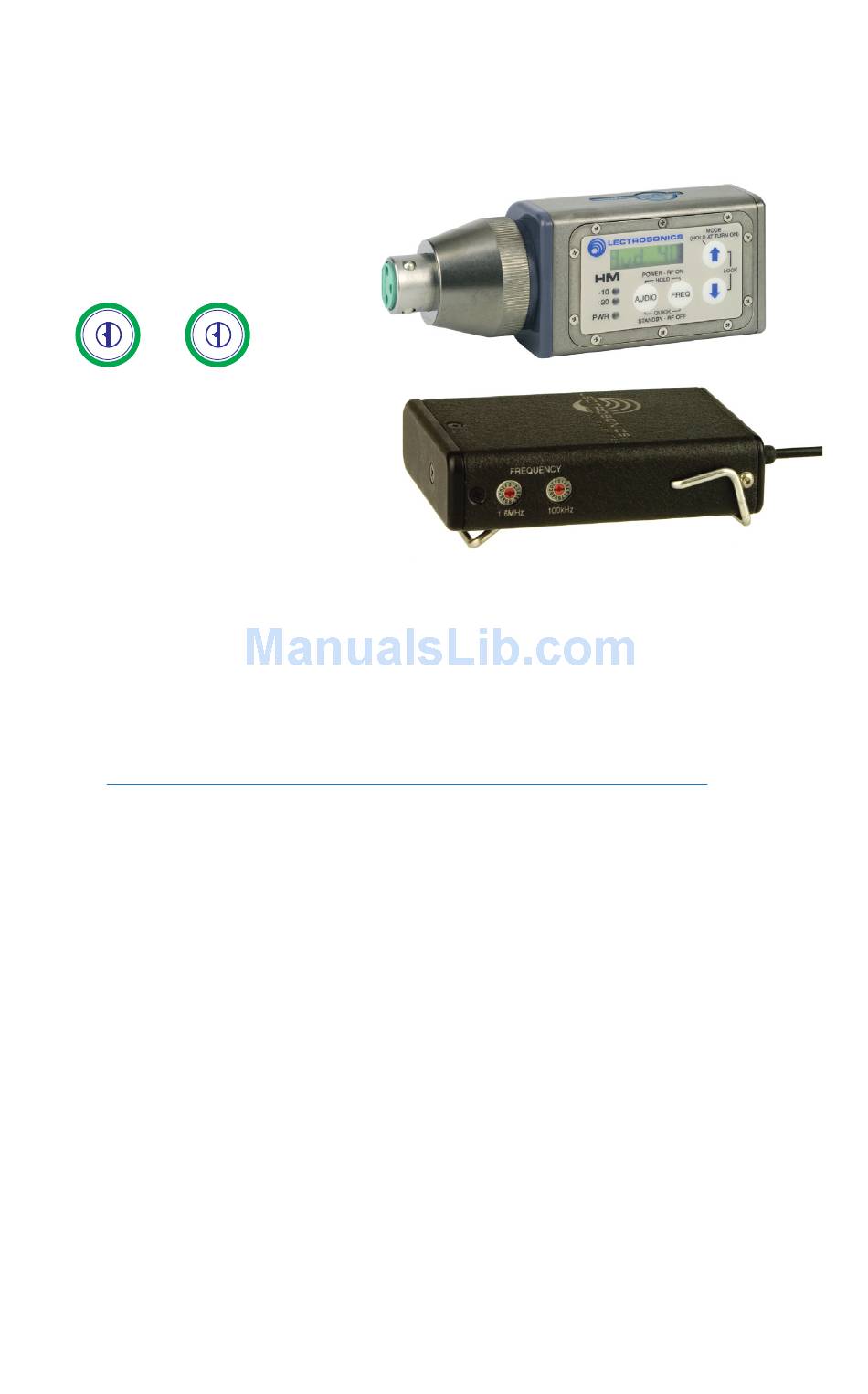

Set the frequency selection switches on the side of the transmitter to match
the switches on the receiver determined in Step 2. Ensure the transmitters
are oriented so the word "Frequency" reads correctly to orient the left and
right hand switches.
Frequency Switches
0 1
F
E 2
D 3 D
C 4 C
B 5 B
A 6
9 7
8
1.6MHz 100KHz
(left) (right)
Set Camera or Mixer Audio Level Control to a
Comfortable Midrange Position
NOTE: This step only applies to cameras and camcorders that
offer manual audio level control during recording. If your camera or
camcorder offers AGC (automatic gain control) only, skip this step and
go to step 8.
Set the manual input level control on the camera or mixer to a point just above
the middle of the control range (i.e. set it at "7" on a scale of 1 to 10).
