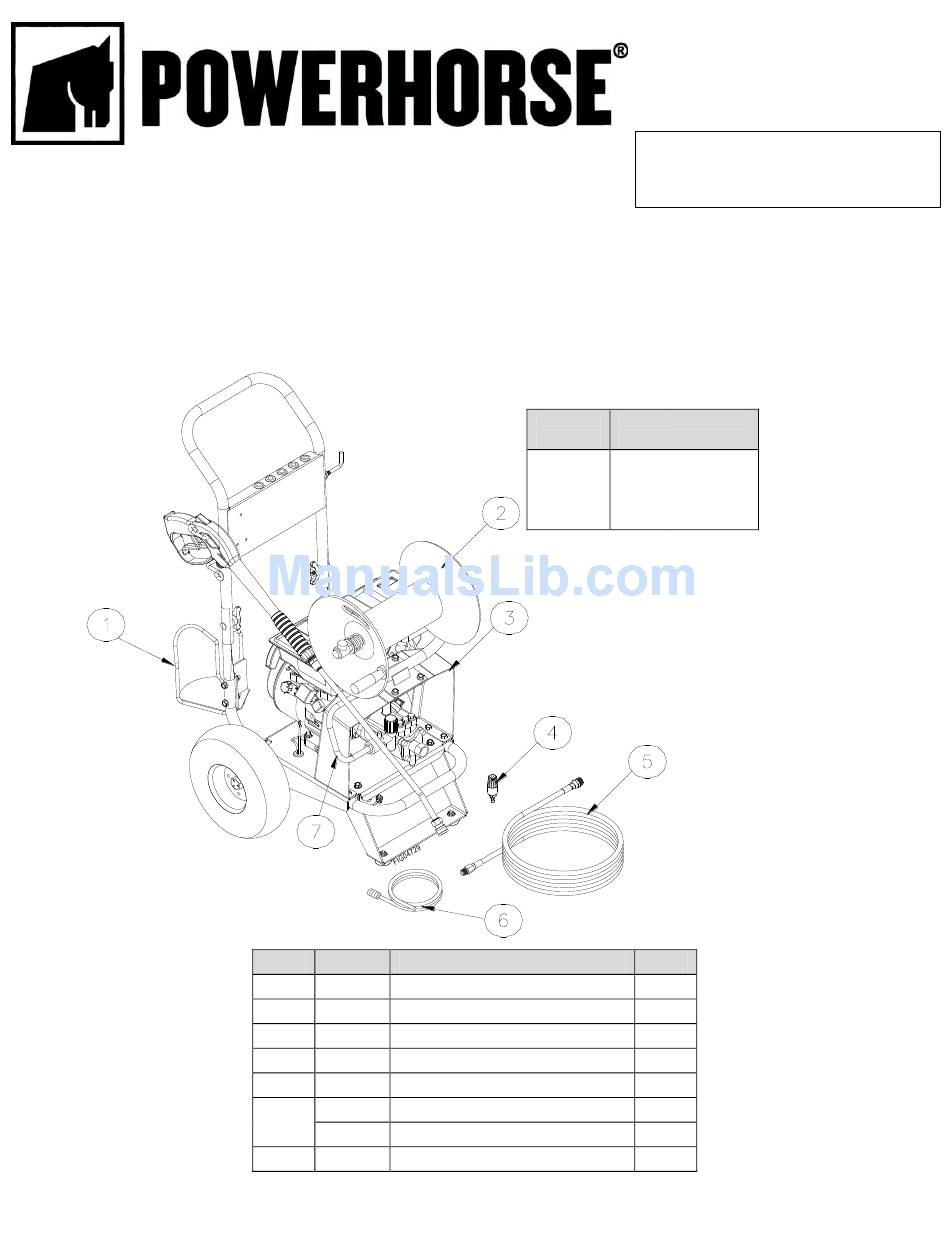

Owner's Manual
Instructions for Installation of
Full Feature Pressure Washer Kit
REF# PART# DESCRIPTION
1
789458 Chemical Jug Bracket
2
788818 Hose Reel
3
788422 Hose Reel Mount Bracket
4
788938 Turbo Nozzle
5
788613 50' High Pressure Hose
777165 ¼" Chemical Hose
6
221222 Chemical Strainer
7
788836 22mm, 18" x 1/2" Hose
MPHFFKB.1
KIT NUMBER: 720150
SERIAL NUMBER: _____________
KIT
PART#
NorthStar ITEMS:
720150
QTY
(sold by foot)
1
USED ON
1577149
1577249
1577110
15771120
1
1
1
1
1
5 ft.
1
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MPHFFKB.1 and is the answer not in the manual?

Questions and answers

Related Manuals for Powerhorse MPHFFKB.1

Summary of Contents for Powerhorse MPHFFKB.1

  • Page 1 MPHFFKB.1 KIT NUMBER: 720150 SERIAL NUMBER: _____________ Owner’s Manual Instructions for Installation of Full Feature Pressure Washer Kit USED ON PART# NorthStar ITEMS: 1577149 1577249 720150 1577110 15771120 REF# PART# DESCRIPTION 789458 Chemical Jug Bracket 788818 Hose Reel 788422 Hose Reel Mount Bracket 788938 Turbo Nozzle 788613 50’...

  • Page 2: Table Of Contents

    Chemical Jug Holder Installation Instructions Kit# 720150 ....................7 Step 1: Attach Chemical Jug Bracket to Frame ........................7 Step 2: Attach Chemical Hose to Pump ..........................7 Any Questions, Comments, Problems, or Parts Orders Call Powerhorse Product Support 1-866-443-2576...

  • Page 3: Kit Component Identification And Specifications

    Kit Component Identification and Specifications Kit# 720150 Hose Reel Capacity 100 ft. Mounting Kit Included High Pressure Hose Pressure Range 3000 PSI Max Temp. 140°F Length 50 ft. Turbo Nozzle Flow Range 3.5 GPM Pressure Range 3650 PSI Max Temp 212°F Inlet ¼”...

  • Page 4: Initial Set-Up

    Initial Set-Up Inspect & Unpack Upon receiving your item check for missing or damaged parts. See “Component Identification” section of this manual for a diagram of the accessories and components. For missing or damaged components, please contact Product Support at 1-866-443-2576 ...

  • Page 5: Assembly

    Assembly Note: Remove contents from box and begin assembly. Hose Reel Mounting Instructions Kit# 720150 Note: Hand tighten all bolts in assembly steps. Once assembly steps have been completed tighten all nuts with wrench. Before installation, disconnect pressure washer hose from pump and spray gun. Step 1: Install Hose Reel Mount Bracket to Base Step 2: Secure Hose Reel onto Hose Reel Bracket A.) First, remove the 4 indicated bolts and nuts from the...

  • Page 6: Step 3: Hose Routing To Pump

    Step 3: Hose Routing to Pump Note: A.) First, connect the 18” piece of hose to the hose reel and pump outlet. Thread the 3/8” NPT fitting into the hose reel fitting and tighten with a crecent wrench. 22mm coupler 3/8”...

  • Page 7: Step 1: Attach Chemical Jug Bracket To Frame

    Chemical Jug Holder Installation Instructions Kit# 720150 Step 1: Attach Chemical Jug Bracket to Frame A.) Hold chemical jug bracket in line with the pre-drilled holes in pressure washer frame. Insert bolts and thread on nut.  (2) 5/16” x 1-3/4” HHSF Bolt (82094) ...
  • Page 8 Assembled by Northern Tool + Equipment Co., 2800 SouthCross Drive West P.O. Box 1499 Burnsville, MN 55337-0499...
