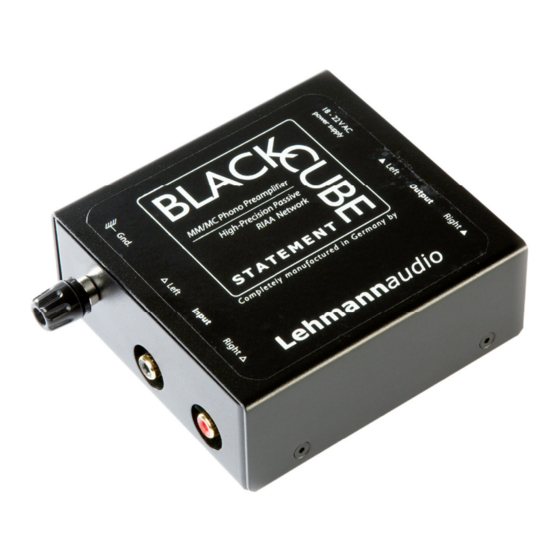

- Page 1 Lehmannaudio Black Cube Statement High End MM/MC Phono Stage High Precision Passive RIAA-Network Manual...
- Page 2 - Do not install the Black Cube Statement in a place where it might be exposed to oil, smoke or steam (for example, near a cooking table or humidifier). Otherwise, fire or electrical shock may result.
- Page 3 - If you plan not to use the Black Cube Statement for a long period of time (such as when you are on vacation), remove the power plug from the AC outlet. Otherwise, a fire could possibly result.
- Page 4 Output impedance: <100 Ohms Gold plated RCA-connectors, massive ground connector The external AC power supply of the Black Cube Statement can be placed up to two meters away from the audio section. The AC voltage is rectified, regulated and buffered onboard the audio pcb.
- Page 5 Signal input conectors (IN) Please connect your tuntable´s output here. To minimize loss in the interconnect use the shortest possible cable between tonearm and the Black Cube Statement. Be careful to preserve correct channel connections – left to left and right to right.
- Page 6 Input for the external AC power supply The Black Cube Statement Audio section is connected to the external AC power supply. Ple- ase make sure that you use a power supply with the correct voltage (18 - 22 V AC) that is...
- Page 7 (MM)7,6mV Gain = 41dB The Black Cube Statement is highly flexible and also offers an insert point (R103, R203) for inserting a resistor to accommodate cartridges which require special loading to be activated by the switch and one additional hardwire slot for each channel for permanant installation (R100, R200) with direct effectivity.
- Page 8 WARNING: When the output capacitors are bridged there can be DC offset voltage pre- sent at the Black Cube Statement‘s output connectors. Please make sure that the following input stage is AC-coupled before activating the DC jumpers. If you do not know the coupling status of the next following input stage have your setup checked by a dealer or avoid to use this jumper.
-
Page 9: Common Settings
Sensitivity quoted above is calculated for an output level of 500mV. It is not possible to overload the Black Cube Statement with any known phono cartridge if the unit is set up correctly. - Page 10 Notes Manufacturer‘s address: Lehmannaudio Vertriebs GmbH Richard Zanders Str. 54 D-51469 Bergisch Gladbach Germany phone: +49 2202 280 6240 fax: +49 2202 280 6239 email: info@lehmannaudio.de Web: www.lehmannaudio.de...
