Summary of Contents for Frymaster ESG35T

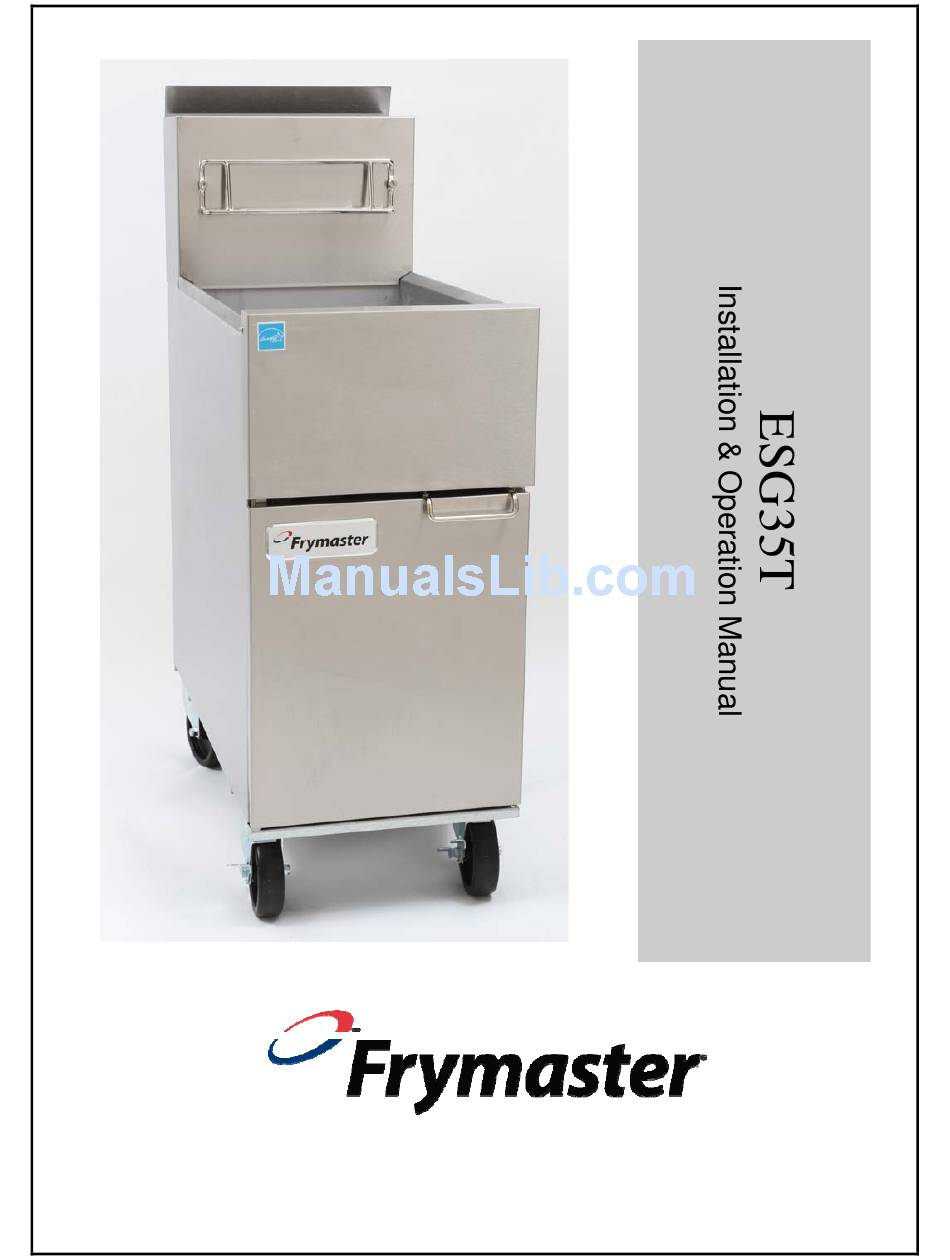

  • Page 1 Price: $6.00 For Service, Call (318) 865-1711 *8197049* Shipping Address: 8700 Line Avenue, PRINTED IN THE Shreveport, Louisiana 71106 UNITED STATES OCTOBER 2013...
  • Page 2: Notice To U.s. Customers

    USED IS MODIFIED FROM ITS ORIGINAL CONFIGURATION, THIS WARRANTY WILL BE VOID. FURTHER, FRYMASTER AND ITS AFFILIATES WILL NOT BE LIABLE FOR ANY CLAIMS, DAMAGES OR EXPENSES INCURRED BY THE CUSTOMER WHICH ARISE DIRECTLY OR INDIRECTLY, IN WHOLE OR IN PART, DUE TO THE INSTALLATION OF ANY MODIFIED PART AND/OR PART RECEIVED FROM AN UNAUTHORIZED SERVICER.
  • Page 3: Chapter 1: Installation Instructions

    "A minimum distance of 18-inches (450-mm) should be maintained between the flue outlet and the lower edge of the grease filter". Frymaster recommends that the minimum distance be 24-inches (600-mm) from the flue outlet to the bottom edge of the filter.
  • Page 4: National Code Requirements

    ESG35T CHAPTER 1: INSTALLATION INSTRUCTIONS INSTALLATION NOTE: Unless special ordered, this fryer is designed for operation at altitudes of 2000 feet (610 meters) and below. The unit must be modified for operation above 2000 feet (610 meters). For units equipped with legs: Lift the unit and move it into its final position. Do not drag or push the fryer into position.
  • Page 5 ESG35T CHAPTER 1: INSTALLATION INSTRUCTIONS NOTE: Outlet gas pressure must be adjusted strictly within the above requirements 5 to 10 minutes after the appliance is operating. Connection to the Gas Supply Line Propane Applications; Proper Regulator Must Be Installed NOTE: The gas supply (service) line must be the same size or greater than the fryer inlet line.
  • Page 6 ESG35T CHAPTER 1: INSTALLATION INSTRUCTIONS 1.5 Gas Conversion Procedures DANGER This appliance was configured at the factory for a specific type of gas. Converting from one gas type to another requires the installation of specific gas-conversion components. Switching to a different type of gas without installing the proper conversion components may result in fire or explosion.
  • Page 7 ESG35T CHAPTER 1: INSTALLATION INSTRUCTIONS Frypot Assembly 1/2—3/4 Reducer Manifold Support Bracket Bushing Gas Valve Gas Burner Burner See Detail A 1.63-inch [41-mm] Orifice 1.30-inch [33-mm] Pressure Test Gas Manifold Spigot Orifice Manifold Assembly Detail A Burner/Orifice Location Temperature Control...
  • Page 8: Chapter 2: Operation

    Adjustments are the responsibilities of the customer or dealer and are not covered by Frymaster warranty. The pilot is located high in the cabinet center, at the base of the frypot. Use a long match to light the pilot. Perform the following steps in sequence before lighting the pilot: 1.
  • Page 9 ESG35T CHAPTER 2: OPERATION 2.1.3 Lighting the Burners WARNING NEVER set a complete block of solid shortening on top of the heating tubes. To do so will damage the heating tubes and frypot, and void the warranty. 1. Ensure the frypot is filled with oil or shortening to the lower of the two oil level lines embossed on the back wall of the frypot.
  • Page 10 ESG35T CHAPTER 2: OPERATION 2.5 Wiring Diagram CONTROL CIRCUIT PILOT GENERATOR 1/2 P.S.I. HONEYWELL HIGH-LIMIT OPERATING THERMOSTAT...
  • Page 12 Shipping Address: 8700 Line Avenue, Shreveport, Louisiana 71106 TEL 1-318-865-1711 FAX (Parts) 1-318-219-7140 FAX (Tech Support) 1-318-219-7135 Price: $10.00 PRINTED IN THE UNITED STATES 819-7049 OCTOBER 2013...
