- Page 1 GX300 User Manual Window PPre0...

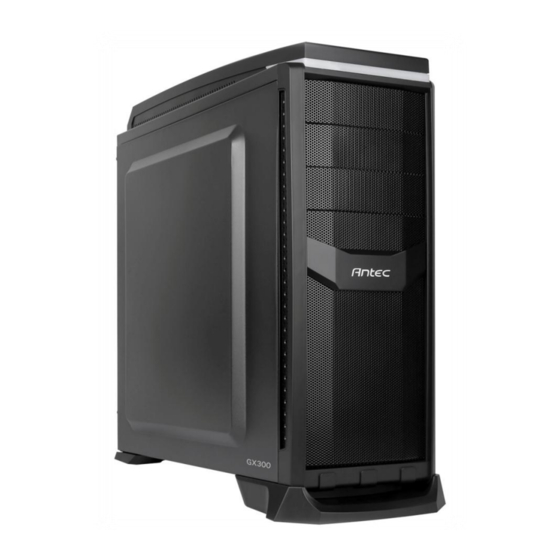

- Page 2 Front panel with plastic and 3D mesh design, tough lines with powerful mechanical sense. GX300 window equipped with one USB3.0, one USB2.0 and one fan with high/ low speed control interface, this priceless product is unmatched by a similar specification of other enclosures. It comes with 2 x 120mm Blue LED fans, both for cooling and silent computing.
-
Page 3: Table Of Contents
Table of Contents Section 1: Introduction Getting to Know Your Chassis................. 5 Chassis Specifications ..................6 Toolkit ......................7 Before You Begin ................... 8 Section 2: Hardware Installation Setting Up ...................... 10 Motherboard Installation ................10 Power Supply Installation ................12 Internal 3.5”... -
Page 4: Section 1: Introduction
Section 1 Introduction GX300 Window User Manual... -
Page 5: Getting To Know Your Chassis
Getting to Know Your Chassis 1. 6 x 3.5” / 2.5” drive trays 2. 2 x 120 mm top exhaust fan (Optional) 3. 1 x 120 mm rear exhaust fan (1 x 120mm Blue LED fan pre-installed) 4. 2 x 120 mm front intake fan (1 x 120mm Blue LED fan pre-installed) 5. -
Page 6: Chassis Specifications
Chassis Specifications Chassis Type ATX-Tower Chassis Color Black /White/Orange Dimensions 18.89” (H) x 8.26” (W) x 18.89” (D) 480 mm (H) x 210 mm (W) x 480 mm (D) Weight 11.9 lbs / 5.4 kg Cooling Fan mounts: - 2 x 120 mm top exhaust fan mount - 1 x 120 mm rear exhaust fan mount - 2 x 120 mm front intake fan mount Included Fan:... -
Page 7: Toolkit
Toolkit An inventory of all screws and intended usage and quantity is provided here: A. Front fan screw (4) (6-32x27.5PM) B. HDD screw (24) (6-32x17.5TM) C. Motherboard screw (9) (6-32x6CM) D. Motherboard standoff (1) (6-32x6.35) Power supply screw + VGA (5) (Power +VGA 6-32x6HWM) F. -
Page 8: Before You Begin
Before You Begin In order to ensure that your building experience with the GX300 will be a positive one, please take note of the following: While working inside your GX300, keep your chassis on a flat, stable surface. Make sure your build environment is clean, well-lit, and free of dust. -
Page 9: Section 2: Hardware Installation
Section 2 Hardware Installation GX300 Window User Manual... -
Page 10: Setting Up
Setting Up Put the case upright on a flat, stable surface so that the side panel is facing you. To remove the left and right side panels, remove these thumbscrews first. Note: Place the panel thumbscrews aside carefully and remember where they are. - Page 11 The GX300 Window comes with nine preinstalled motherboard standoffs. These are positioned for Standard ATX motherboards but can be relocated to accommodate other form factors. 1. Align the motherboard with the standoff holes on the motherboard tray and remember or mark which holes are lined up 2.
-
Page 12: Power Supply Installation
4. In case your power supply has a top exhaust fan you can place it upside down because your GX300 has an exhaust place, with dust filter, on the bottom of the enclosure specially for this purpose. (See paragraph 4.4) -
Page 13: Internal 3.5" / 2.5" Device Installation
Internal 3.5” / 2.5” Device Installation The GX300 Window has six drive bays that are compatible with both 3.5” and 2.5” drives. To install a 3.5” drive: 1. Remove one of the drive trays by pinching the ends of the tray inward and pulling the drive tray out. - Page 14 To install a 2.5” drive: Each of the six 3.5” drive bays also support 2.5” drives 1. Extract one of the drive trays by pinching the ends of the tray inward and pulling the drive tray out. 2. Place your 2.5” drive on the tray so that the holes line up with the 2.5” tray holes. 3.
-
Page 15: Cable Management
Cable Management There is a cable management compartment between the motherboard and right side panel, as well as cable tiedowns located on the back of the motherboard panel. You can tuck excess cables in this compartment or route them to the drive bays. -
Page 16: Section 3: Front I/O Ports
Section 3 Front I/O Ports GX300 Window User Manual... -
Page 17: Usb 2.0
Empty Pin 9 10 USB 3.0 The GX300 Window comes with one front panel USB 3.0 ports and includes an internal motherboard connector. To access USB 3.0 capability from the front panel: 1. Identify the USB 3.0 header on your motherboard. -
Page 18: Hd Audio Ports
HD Audio Ports There is an Intel® 10-pin HDA (High Definition Audio) connector linked to the front panel of the chassis. Signal Names (HDA) MIC2L AGND MIC2R AVCC FRO-R MIC2_JD F_IO_SEN Key (no pin) FRO-L LINE2_JD You can connect the HDA connector, depending on your motherboard. Locate the internal audio connectors from your motherboard or sound card and connect the audio cable. -
Page 19: Rewiring Motherboard Header Connections
There may come a time when you need to reconfigure the pin-out of a motherboard header connector. Examples could be for your USB header, audio input header, or some other front panel connector such as the Power Button connector. Before performing any work, please refer to your motherboard user’s manual or your motherboard manufacturer's website to confirm the pin-out needed for your connector. -
Page 20: Section 4: Cooling System
Section 4 Cooling System GX300 Window User Manual... -
Page 21: Included Fans
Included Fans The GX300 Window comes with one standard 120 mm Blue LED fan at the front and one 120mm Blue LED fan at the rear. 120 mm TwoCool™ fan specifications: Size 120 x 25 mm two-speed fan Rated Voltage 12V DC 6.0V ～... - Page 22 Note: you can install a maximum of two 120mm fans on the front case. (GX300 Premium pre-installed a 1200mm blue LED light fan.) Top exhaust 120 mm fans The GX300 Window includes two 120mm top fan mounts 1. Align your fan with the pegs that correspond with the fan screw holes on the fan.
-
Page 23: Fan Switch Controller
Air Filters There are two filters in the GX300 Window that can be removed and washed. One filter is on the front and the other is the PSU intake filter. You can access the front filter by opening the front panel. The filter is located on rear of front panel. - Page 24 +31 (0) 10 462-2060 europe.techsupport@antec.com www.antec.com Asia +886-(0)800-060-696 apsupport@antec.com © Copyright 2014 Antec, Inc. All rights reserved. All trademarks are the property of their respective owners. Reproduction in whole or in part without written permission is prohibited. Rev. 2.2 24-02-2015...
