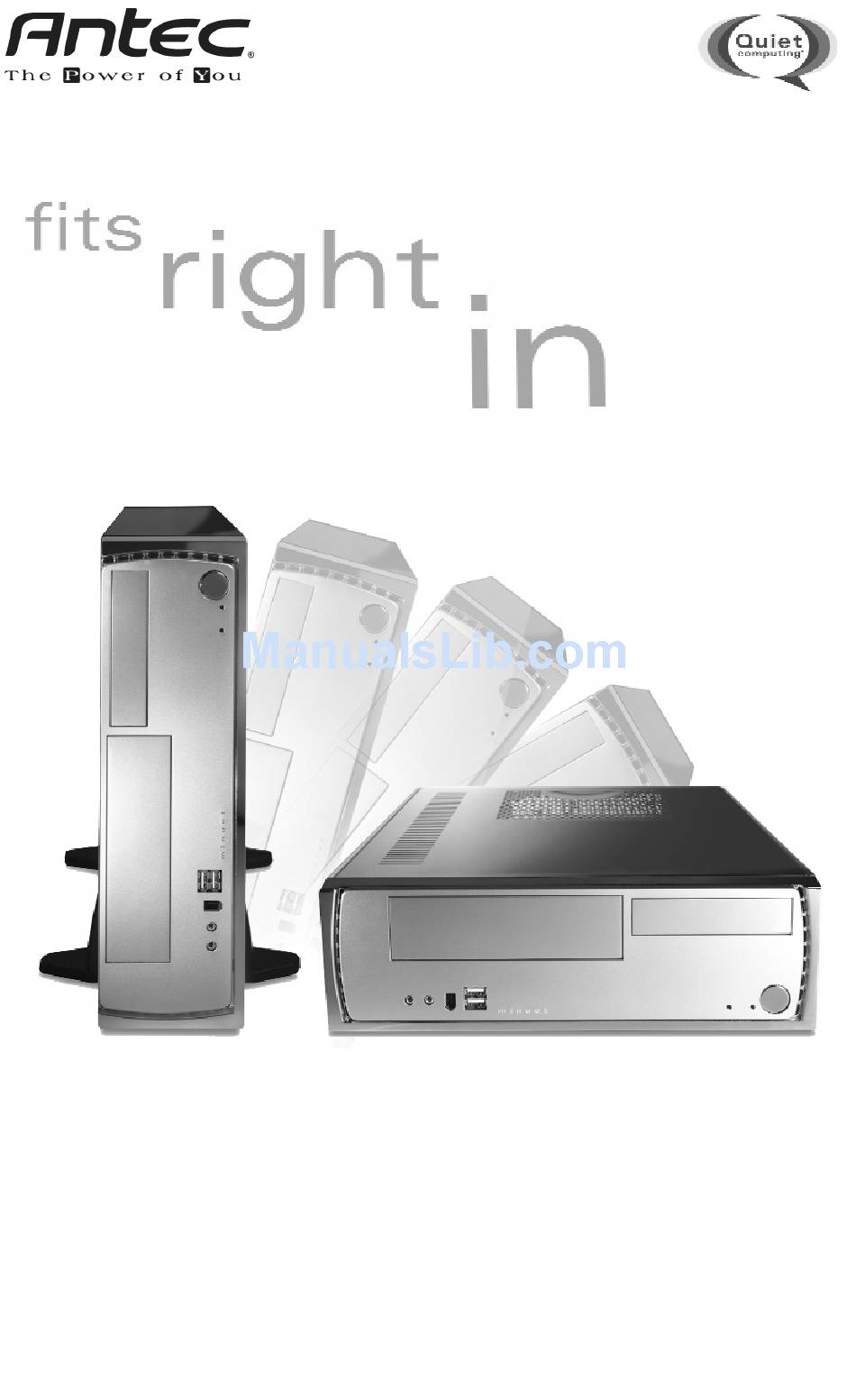

- Page 1 MINUET II User’s Manual Manuel de l’utilisateur Anwenderhandbuch Manuale per l’operatore Manual del usuario...
-
Page 2: Motherboard Installation
4. Horizontal Orientation: stick the four adhesive rubber feet to the bottom panel of the case to protect the paint from scratches. 5. Vertical Orientation: place the Minuet II in the two plastic stands such that the side panel with the 80mm fan is facing up. Adjust the stands to fit snugly against the case sides. -
Page 3: Power/Led Connections
Note: Please check your motherboard manual for your USB header pin layout and make sure it matches the attached table. If it does not match this Intel standard, please call Antec customer support at (800) 22ANTEC (North America) or at +31 (0) 10 462-2060 (Europe) to buy a USB adapter. -
Page 4: Connecting The Audio Ports
Minuet II. 6. Align the bottom rear screw holes (one at each side) on the device with the two screw holes (the pair closest to the front of the cage) on the cage and fasten the device with the screws provided. -
Page 5: Cooling System
9. To install the internal 3.5" device, find the two mounting prongs on one side of the bay. With one hand holding the device at a 45-degree angle with the bottom side up, align the two screw holes on one side of the device with the prongs and slide the device into the bay. - Page 6 Top Panel: Minuet II comes with a vented top panel for maximum cooling capacity. It will help the airflow inside the case maximizing ventilation and cooling. Rear Panel: Minuet II comes with vents above the I/O panel. Note: Do NOT install exhausts fans over...
- Page 7 +31 (0) 10 462-2060 europe.techsupport@antec.com www.antec.com © Copyright 2005 Antec, Inc. All rights reserved. All trademarks are the property of their respective owners. Reproduction in whole or in part without written permission is prohibited. Printed in China. Version 1.0.1 6/03/2005...
