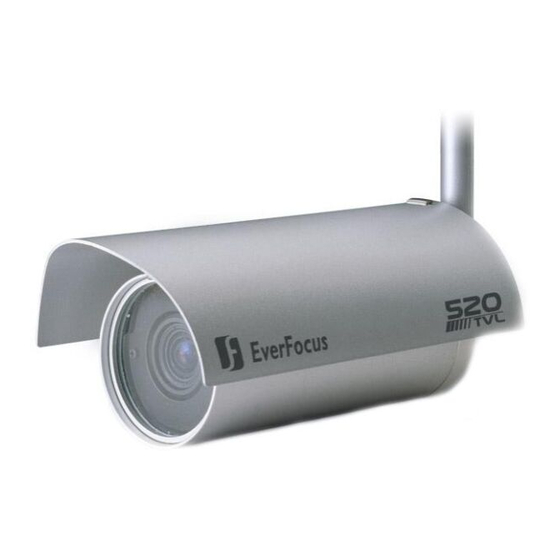

EverFocus EZ350 User's Manual And Operation Instructions

High resolution weatherproof camera
Hide thumbs Also See for EZ350:

Advertisement

Quick Links

Download this manual
E
Z
3
5
0
E
Z
3
5
0
H
i
g
h
R
e
s
o
l
u
t
i
o
n
W
e
a
t
h
e
r
p
r
o
o
f
C
a
m
e
r
a
H
i
g
h
R
e
s
o
l
u
t
i
o
n
W
e
a
t
h
e
r
p
r
o
o
f
C
a
m
e
r
a
User's Manual
and
Operation Instructions

Advertisement

loading
Need help?

Need help?

Do you have a question about the EZ350 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for EverFocus EZ350

Summary of Contents for EverFocus EZ350

  • Page 1 User’s Manual Operation Instructions...
  • Page 2 Meanwhile, please be advised that every step of operation must follow the instruction of this manual to keep EZ350 working under the best condition. Please notice that EverFocus will not be charged any claims or...

  • Page 3: Table Of Contents

    Table of Contents Safety Warning … … … … … … … … … … … … … … … … 1 Introduction… … … … … … … … … … … … … … … … … ..2 Specification…...

  • Page 4: Safety Warning

    Safety Warning 1. Handle the camera with care. Be careful when handling the camera, do not drop it or subject it to strong shock or vibration to prevent any damages to it. Do not disassemble it or place it on an unstable base. 2.

  • Page 5: Introduction

    CCD camera. The EZ350 is ideal for outdoor applications such as parking lots, gas stations or shopping malls. The sophisticated circuit design provides a heater that turns on at 10¢J for cold weather. The EZ350 will provide protection against the elements and provide an excellent quality picture.

  • Page 6: Specification

    Specification Pickup device: 1/3” interline transfer CCD NTSC: 768(H) x 494(V) Picture element: PAL: 752(H) x 582(V) Horizontal resolution: 480 TV Lines Video output: 1.0Vp-p, 75 ohm Lens focal length: Vari-focal lens f=3.5~8mm / Vari-focal lens f=9~22mm Lens F stop range: 1.6~360 Sensitivity: 1.42 lux/F=1.6...

  • Page 7: Major Parts Names

    Major Parts Names and Their Functions Back Fixing Plate Back Fixing Plate Swivel Swivel Screw Screw Mounting Mounting Set-Screw Base Base Sun Shield Sun Shield Assembly Assembly Cover Cover Screw Screw Fixing Screw Fixing Screw Front Front Fixing Plate Fixing Plate IRIS ALC/Level Adjustment IRIS ALC/Level Adjustment O-ring Seal...

  • Page 8: Installation Instructions

    Installation Instructions 1. Using the supplied screws, mount the bracket base on the desired location. 2. Connect the BNC connector of the camera to a monitor or other video device through a 75 ohm type coaxial cable with BNC female connector at cable extension.
  • Page 9 g. When all the adjustments and settings are completed, overlaying the cover gently. Be careful not to damage to the “O”-Ring and camera components. h. To reassemble the sun shield, match the hole on the sun shield to the back fixing plate of camera, Fix the screw on the front fixing plate. Make sure the wider side of the fixing plate holds the edge of the camera well.

  • Page 10: Settings

    Settings The camera is set up at factory and normally requires no adjustments. Sometimes, however, adjustments may be necessary. Please refer to the following description for the function details. ??The IRIS ALC and IRIS Level adjustments are located on the side circuit board, use a screwdriver to adjust if it’s necessary.
  • Page 11 ??The 4 control switches are also located on the side circuit board, the switches in orders are for Flickerless, Back Light Comp, Auto Gain Control and Line Lock. Normal Normal Control Switches FL(Flickerless) Normal/On When picture flicker fiercely, turn FL on, then the camera will stabilize the speed of electronic shutter at 1/100(NTSC) or 1/120(PAL) automatically, and reduce the flicker immediately.
  • Page 12 AGC (Automatic Gain Control) Off/On AGC ON: The sensitivity increases automatically when light is low. AGC OFF: A-low-noise picture is obtained under a low light condition. The default setting is On. LL (Line-Lock) Off/On To select the sync mode between Internal Sync.(LL off) and Line-Lock (LL on).
  • Page 13 EverFocus Electronics Corp. European Office: Head Office: Albert-Einstein-Strasse 1 12F, No.79 Sec. 1 Shin-Tai Wu Road, D-46446 Emmerich, Germany Hsi-Chi, Taipei, Taiwan www.everfocus.de TEL: +886-2-26982334 TEL: 49-2822-9394-0 FAX: +886-2-26982380 FAX: 49-2822939495 www.everfocus.com.tw Beijing Office: USA Office: Room 609, Technology Trade...
