S U B - Z E R O
E L E C T R O N I C C O N T R O L
The sophisticated electronic control system
of your Integrated unit provides you with the
best control of your refrigerated foods. By
maintaining recommended refrigerator and
freezer temperatures, you can keep food safe
and retain the best quality possible.
A microprocessor accurately controls the
temperature of the cooling zones. It samples
the temperature every second, and makes
adjustments to maintain the temperature you
have indicated.
The electronic digital control panel is located
on the top of the tall units, and in the top
drawer of the base units. All of the essential
controls and information are displayed in this
easy-to-reach-and-see panel. Refer to the
illustrations below for location of the electronic
control panel. Note that for single zone units
and units that cannot support an ice maker,
the electronic control panel will be slightly
different.
L C D D I S P L AY
The liquid crystal display (LCD) located on the
electronic control panel shows the actual
temperature of different zones in your unit.
If there is a temperature or ice maker problem,
you'll be alerted by a flashing SERVICE indica-
tor light in the LCD display.
8
I N T E G R AT E D U S E & C A R E
S Y S T E M
Ice
On/Off
Freezer
Control
Refrigerator
Control

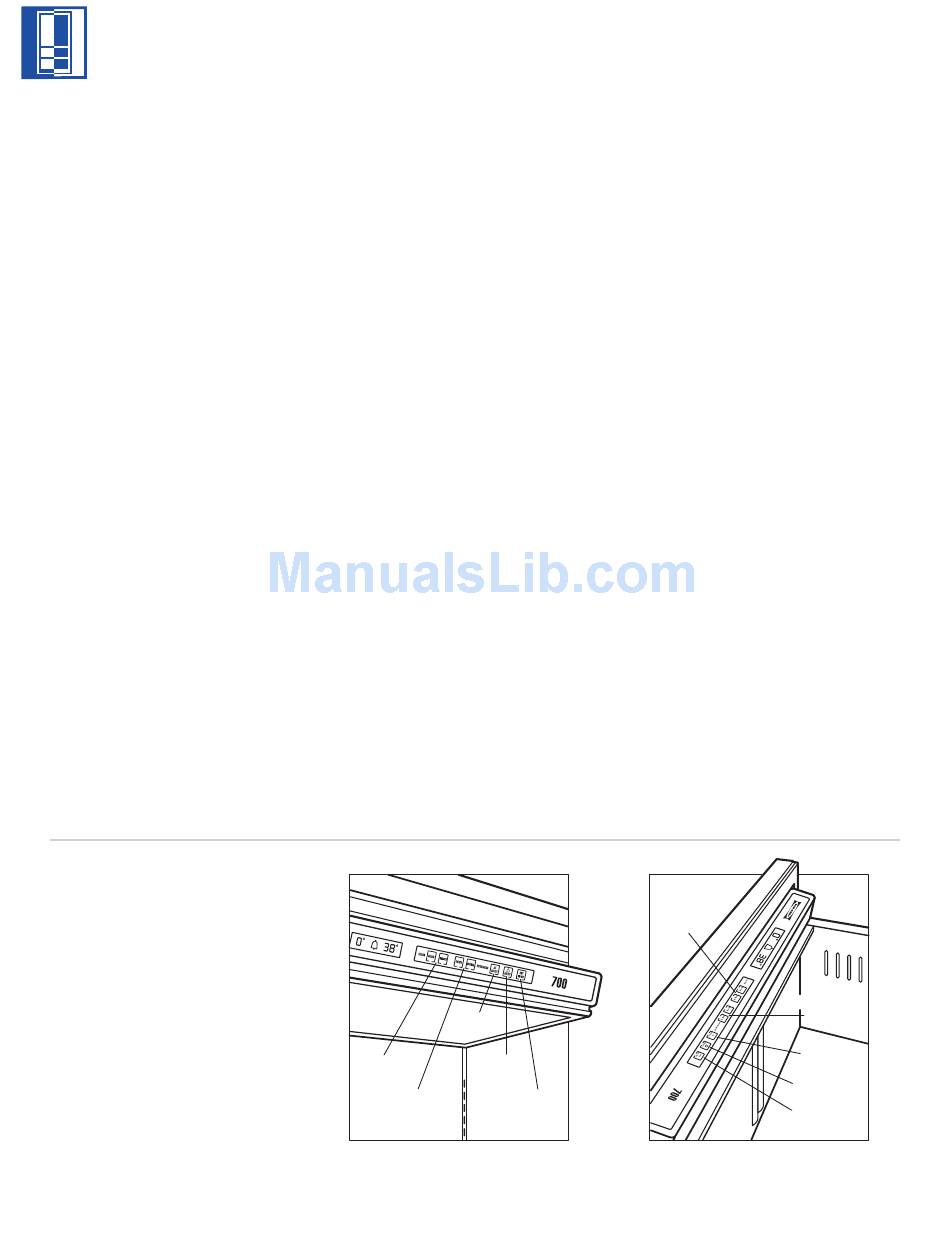

Tall combination unit electronic
control panel
T E M P E R AT U R E C O N T R O L
Integrated units are factory preset to maintain
refrigerator zones at 38˚F (3˚C) and freezer
zones at 0˚F (-18˚C). The temperature range for
refrigerator zones is 34˚F (1˚C) to 45˚F (7˚C) and
the temperature range for freezer zones is -5˚F
(-21˚C) to +5˚F (-15˚C).
For combination units and the Model 700TR,
there are two sets of WARMER and COLDER
key pads on the electronic digital control
panel, one for the upper refrigerator zone and
the other for the lower freezer zone. Single
zone refrigerator and freezer units have only
one set of WARMER and COLDER key pads.
The COLDER key pad allows you to decrease
the temperature of a selected zone in one
degree increments.
Similar to the COLDER key pad, you can raise
the temperature in any zone in one degree
increments by pressing the WARMER key pad.
IMPORTANT NOTE: Always allow 24 hours
for the unit to reach the temperature you set.
Freezer
Control
Alarm
On/Off
Unit
On/Off
Base combination unit electronic
control panel
Refrigerator
Control
Ice
On/Off
Alarm
On/Off
Unit On/Off
