Summary of Contents for Nautilus NS-700

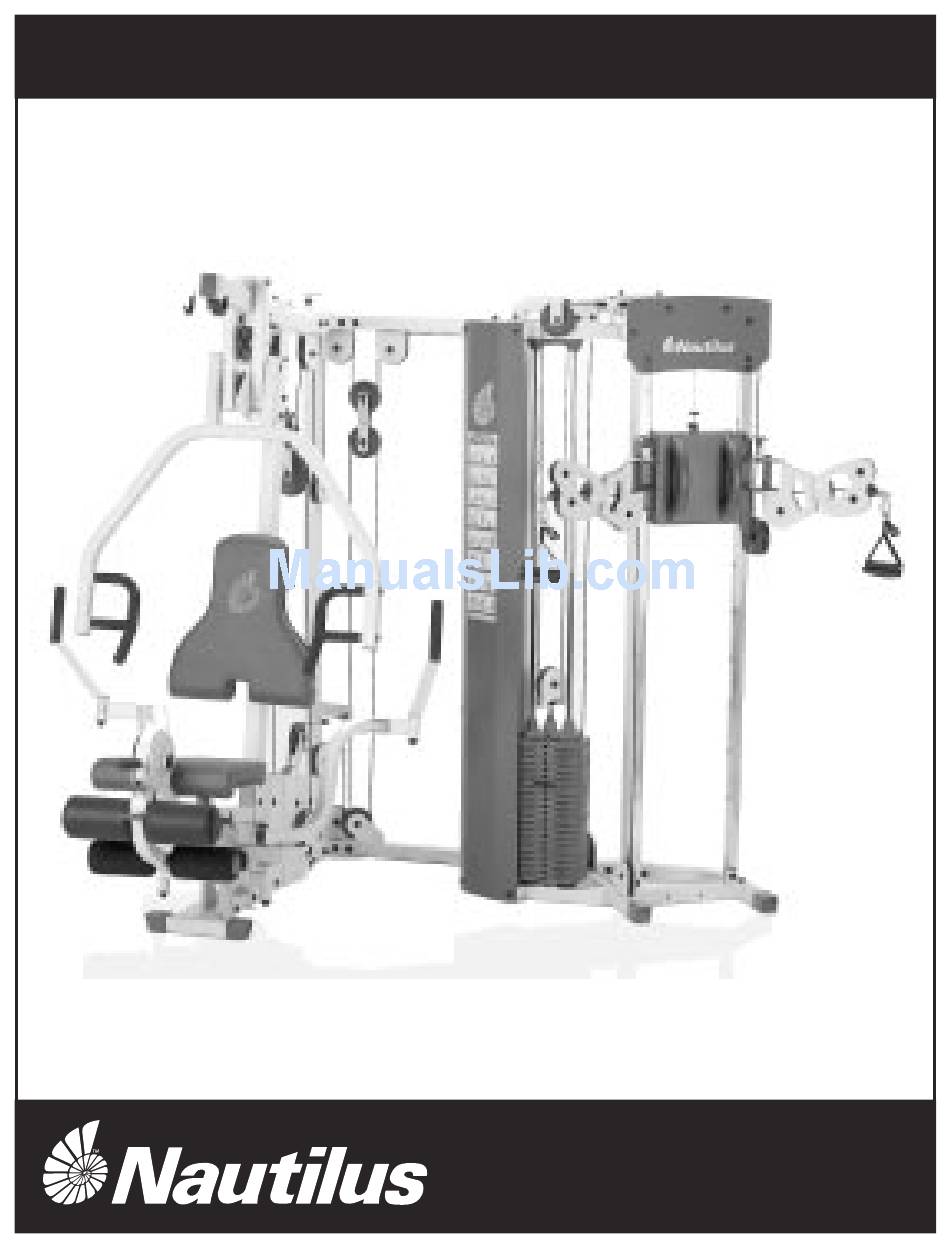

- Page 1 Assembly Instructions NS-700...
-
Page 2: Table Of Contents
92054 Shroud 15858 Weight Selector Pin 14210 Low Pulley Cover 15803 M5 Allen Wrench 15898 Double Floating Pulley Bracket 14138 M6 Allen Wrench 15899 Cable Retaining Bracket 14355 M8 Allen Wrench 15900 Top Weight Pulley Housing 15813 Workout Placard NS-700... - Page 3 A. Compare the Bill of Materials to the box contents to insure that all parts are present before installation begins. B. Unpackage parts and place them near the final asssembled location to avoid moving the gym when fully assembled. NS-700...
- Page 4 NS-700...
-
Page 5: Qty
E. Attach Connecting Plate A and C (12) (14) to Rear Top Connecting Plate D Frame (2) using the hardware shown. Do not tighten Hex Bolt - 3/8" x 3 1/4"L hardware. Hex Bolt - 3/8" x 3"L 3/8" Flat Washer 3/8" Lock Nut NS-700... -
Page 6: Rear Upright
E. Attach Top Beam (6) to Front Upright (7) and Rear Top Hex Bolt - 3/8" x 4 1/4"L Frame (2) using Backing Plate (10) and the hardware Hex Bolt - 3/8" x 3"L shown. Tighten all frame hardware securely. 3/8" Flat Washer 3/8" Lock Nut NS-700... -
Page 7: Pec Fly Mount 1 14135
Install Plastic Cap (67) in the four locations shown. The Plastic 1/4" x 1/2"L with thread lock Cap (67) should snap into place locking around the Shim Washer (99). 1 11/32 x 1/2" Flat Washer 3/8" Flat Washer 1/2" Lock Nut 3/8" Lock Nut Shim Washer NS-700... -
Page 8: Right Press Arm Handle 1 14133
Left Press Arm Handle C. Attach Press Arm Handles (24) (25) using hardware Press Arm Support Shaft shown. Tighten hardware firmly. Press Arm Pivot Shaft Button Head Allen Screw 3/8" x 1"L with thread lock 5/16" Set Screw 1/4"L NS-700... -
Page 9: Seat Pad 1 14190
Back Pad Adjustment Plate can 3/8" Flat Washer rotate freely. G. Install Back Pad Adjuster (34) in Front Upright (7) in the 1/2" Lock Nut slot shown. Install Pop Pin (30) using an adjustable 3/8" Lock Nut wrench. NS-700... -
Page 10: Locking Roller Bar 1 15826
Slide the Eccentric Roller (41) on the Locking Round End Cap Roller Bar (38). Press the Locking Roller End Cap (43) into the Locking Roller Bar (38). Repeat for the opposite side making sure that the Eccentric Rollers are aligned. NS-700... -
Page 11: Front Plate 1 15812
Tighten hardware securely. 3/8" Flat Washer E. Attach the Swivel Arms (49) to the Hi/Low Pulley 3/8" Lock Nut Adjuster (48) using the hardware shown. Tighten 3/8" x 9/32t Lock Nut hardware securely but allowing the Swivel Arms to rotate freely. NS-700... -
Page 12: Guide Rod Holder 2 14174 101
1/2" Lock Nut Place Weight Selector Pin (107) in the bottom weight plate. Weight Selector Pin Repeat Steps A-E for the second weight stack. Attach Pulley Bracket (36) to Rear Top Frame (2) using the hardware shown. Do not tighten hardware. NS-700... -
Page 13: Hex Bolt - 3/8" X 3"L
B. Tighten hardware securely. Route Cable #2 (70) around the pulley located on the Hi/Low Pulley Adjuster and continue to route cable through the pulleys in the right swivel arm as shown. Re-Install the Ball, Washer, and U-bracket to Cable #2 (70). NS-700... -
Page 14: 3/8" Lock Nut
Draw cable around a 4 1/2” Pulley (58) and attach the pulley in the front slot using the hardware shown in Detail C. Tighten hardware securely. Attach Snap Caps (68) in the Press Arm Support Assembly (22) as shown. NS-700... - Page 15 NS-700...
- Page 16 NOTE: This cable termination can be used for exercise attachments such as the leg press. If an attachment is installed, attach the looped end of the Cable #4 (72) to the coupling on the attachment cable. Please refer to attachment instructions for more details. NS-700...
- Page 17 Cam as shown in Detail A. Tighten hardware securely. NOTE: If the cable termination does not reach the connection hole on the Pec Fly Cam, adjust the Pulleys (58) in the Double Floating Pulley Brackets (61) to increase cable length. NS-700...
- Page 18 A. Attach the Shroud (59) to the gym using the hardware shown. Component B. Adhere the Workout Placard (111) to the Shroud (59) in the position shown. Shroud Button Head Allen Screw 3/8" x 1/2"L with thread lock 3/8" Flat Washer Workout Placard NS-700...
- Page 19 C. After the cables are set and stretched, the Cable System may need to be re-tensioned. Tension the cables as described in Step A. D. The cables may need to be tensioned periodically as they may stretch slightly over time. NS-700...
-
Page 20: Connecting Bench Bracket 1
Stabilizer Assembly. Attach the Bench Connecting Hex Bolt - 3/8" x 3 1/4"L Hex Bolt - 3/8" x 3"L Plate (65) to the NS-50 Bench using the new hardware 3/8" Flat Washer shown. Tighten hardware securely. 3/8" Lock Nut NS-700... -
Page 21: Plastic Cap 4
Button Head Allen Screw 1/4" x 1/2"L 15876 Flat Washer 5/8" X 5/16" 14276 1/4" Lock Nut 14253 Button Head Allen Screw 1/4" x 1"L 15875 Spacer 35 x 26 x 2.0t 14432 Spacer 41.5 x 25.6 x 1.1t 14433 NS-700... - Page 22 1/2" Hex Nut 15893 Hex Bolt - 3/8" x 1 1/2"L 15888 Hex Bolt - 3/8" x 3/4"L w/Thread Lock 15891 Spacer 35 x 26 x 2.0t 14432 Spacer 41.5 x 25.6 x 1.1t 14433 4 1/2" Pulley 14185 NS-700...
-
Page 23: Flat Washer 6
Hex Bolt - 3/8" x 3/4"L w/Thread Lock 15891 Button Head Screw 3/8" x 3/4"L w/ TL 15881 Pop Pin - Leg Ext / Swivel Arm 15862 Hex Bolt - 3/8" x 3"L 14245 3/8" Flat Washer 14233 3/8" Lock Nut 14234 NS-700... - Page 24 NS-700 1/2"L CABLE ADJUSTMENT 1/2"L Description Handle Support 15811 Handle Support Spacer 15814 Power Spring Rear Plate 15841 Ball Stop Crimp 15845 Handle Locking Pin w/ 2 C-Clips 15846 Power Spring Cover 15849 Handles...
- Page 25 The Nautilus Group 1886 Prairie Way Louisville, Colorado 80027 800.499.4322 www.nautilus.com...
