www.hatcocorp.com
Register Online!
(see page 2)

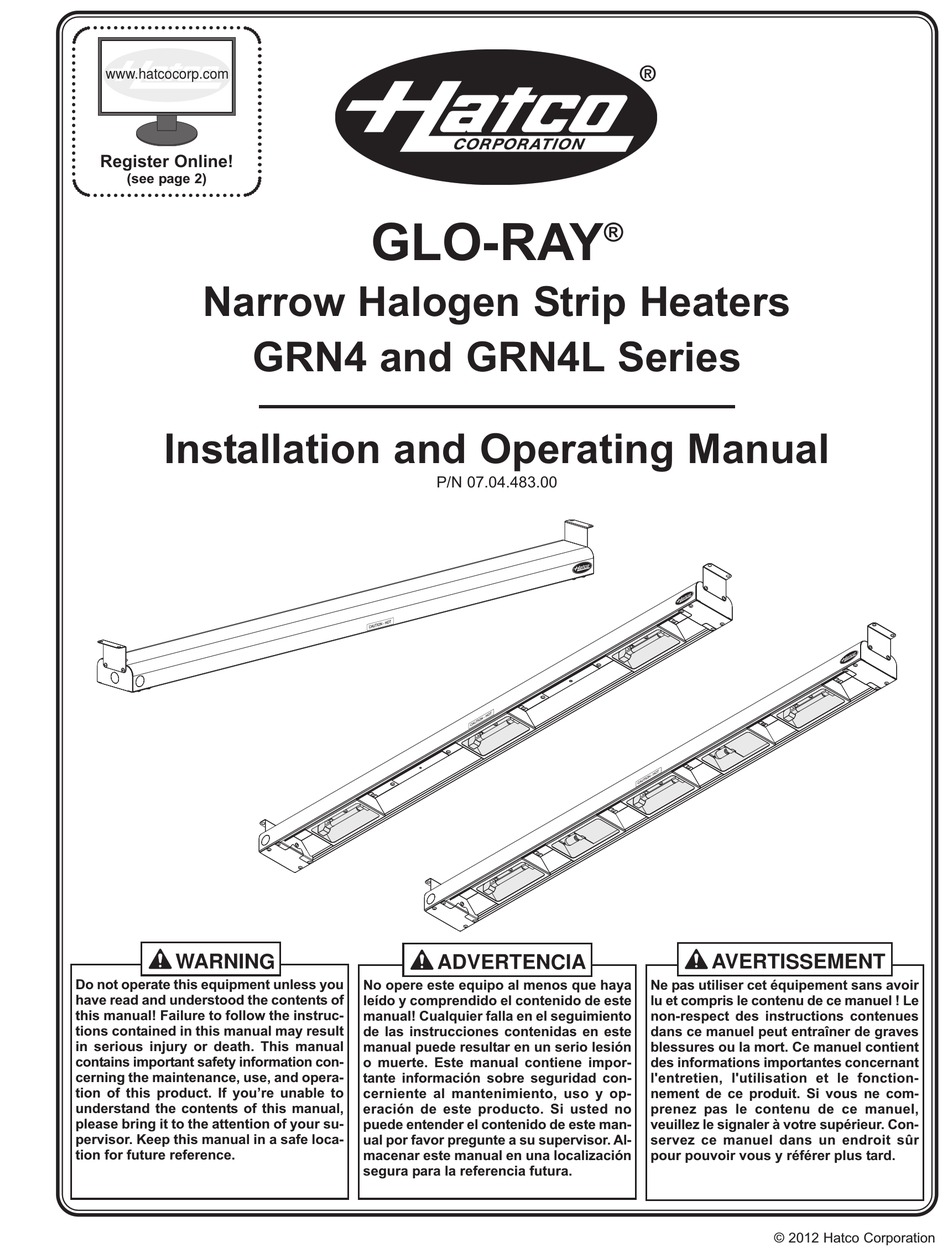

Narrow Halogen Strip Heaters
GRN4 and GRN4L Series
Installation and Operating Manual
WARNING
Do not operate this equipment unless you
have read and understood the contents of
this manual! Failure to follow the instruc-
tions contained in this manual may result
in serious injury or death. This manual
contains important safety information con-
cerning the maintenance, use, and opera-
tion of this product. If you're unable to
understand the contents of this manual,
please bring it to the attention of your su-
pervisor. Keep this manual in a safe loca-
tion for future reference.
GLO-RAy
P/N 07.04.483.00
ADVERTENCIA
No opere este equipo al menos que haya
leído y comprendido el contenido de este
manual! Cualquier falla en el seguimiento
de las instrucciones contenidas en este
manual puede resultar en un serio lesión
o muerte. Este manual contiene impor-
tante información sobre seguridad con-
cerniente al mantenimiento, uso y op-
eración de este producto. Si usted no
puede entender el contenido de este man-
ual por favor pregunte a su supervisor. Al-
macenar este manual en una localización
segura para la referencia futura.
®
AVERTISSEMENT
Ne pas utiliser cet équipement sans avoir
lu et compris le contenu de ce manuel ! Le
non-respect des instructions contenues
dans ce manuel peut entraîner de graves
blessures ou la mort. Ce manuel contient
des informations importantes concernant
l'entretien, l'utilisation et le fonction-
nement de ce produit. Si vous ne com-
prenez pas le contenu de ce manuel,
veuillez le signaler à votre supérieur. Con-
servez ce manuel dans un endroit sûr
pour pouvoir vous y référer plus tard.
© 2012 Hatco Corporation
Advertisement
Table of Contents
Related Manuals for Hatco GLO-RAY GRN4 Series
Summary of Contents for Hatco GLO-RAY GRN4 Series
- Page 1 Register Online! GLO-RAy (see page 2) ® Narrow Halogen Strip Heaters GRN4 and GRN4L Series Installation and Operating Manual P/N 07.04.483.00 WARNING AVERTISSEMENT ADVERTENCIA Do not operate this equipment unless you No opere este equipo al menos que haya Ne pas utiliser cet équipement sans avoir...
-
Page 2: Table Of Contents
(specification Hours: Central Standard Time (C.S.T.) label located on the side of the unit). Please have this (Summer Hours: June to September – information available when calling Hatco for service assistance. 8:00 to 5:00 C.S.T. model No. ________________________________________... -
Page 3: Important Safety Information
This unit has no “user-serviceable” parts. If service is ambient air temperature is a minimum of 70°F (21°C). required on this unit, contact an Authorized Hatco Service • Do not steam clean or use excessive water on unit. Agent or contact the Hatco Service Department at •... -
Page 4: Model Description
OPTIONS aND aCCESSORIES section for details). GRN4 Models Halogen Heat Lamp GRN4 models are available in widths from 18″ (457 mm) to GRN4 model 72″ (1829 mm). They are equipped with halogen heat lamps only. The controls consist of a HEaT ON/OFF switch and a... -
Page 5: Dimensions - Control Boxes
Front View Side View Width Units (327 mm) (105 mm) (89 mm) (330 mm) (114 mm) Front Cover Control Box Dimensions Electrical Rating Chart — GRN4 Models Model Voltage Watts Amps # Halogen Bulbs Shipping Weight GRN4-18 10 lbs. (5 Kg) GRN4-24 11 lbs. -
Page 6: Installation
INSTALLATION General Installation Site Requirements Use the information in this section to prepare for installation of The installation site must meet specific requirements for safe the strip heater. make sure to locate the specific information for and proper installation of the unit. the model of strip heater and type of installation. -
Page 7: Installing The Unit
NOTICE Damage to any countertop material caused by heat generated from Hatco equipment is not covered under the Hatco warranty. Contact manufacturer of countertop material for application information. 1. Position the unit on a flat surface with the halogen lights facing down. -
Page 8: Installing The Control Box
INSTALLATION Installing the Control Box 4. Remove the front cover of the control box. To remove: Use the following procedure to install the control box. a. Loosen the set screw and pull the heat control knob(s) off its stem. Remove the heat control stem hex nut(s). NOTE: Units can be ordered with up to ten feet (3 m) of wire b. -
Page 9: Operation
HEAT Control Knob Startup 1. move the HEaT ON/OFF switch(es) to the ON position. GRN4 Control Box for 66″ and 72″ Width Units The halogen heat lamps will illuminate. HEAT ON/OFF 2. Turn the HEaT control knob(s) to the desired setting. -
Page 10: Maintenance
Use the following procedure to replace a halogen heat lamp ® maximum durability performance with minimum bulb. Use Hatco P/N R02.30.170.00 when replacing a halogen maintenance. heat lamp. WARNING WARNING ELECTRIC SHOCK HAzARD: The light fixtures in this unit have glass safety shields •... -
Page 11: Replacing A Display Light Bulb (Grn4L Models)
Rotate the bulb in the socket until the tab on bulb is clear GRN4L models are equipped with Xenon display lights that help of the locking channel on the socket, illuminate the warming area. Use Hatco P/N R02.30.168.00 when replacing a Xenon light bulb. b. Pull the bulb out of the socket. -
Page 12: Troubleshooting Guide
Heat lamp bulb and/or light bulb burned out. Replace bulb(s). Refer to replacement procedures in the maINTENaNCE section of this manual HEaT ON/OFF switch defective. Contact authorized Service agent or Hatco for assistance. Supply voltage to unit is incorrect. Verify that voltage supply matches electrical information listed on the unit. -
Page 13: Options And Accessories
OPTIONS AND ACCESSORIES Non-Adjustable Tubular Stands Tubular stand mounting permanently attaches the unit to a countertop or serving table. all wiring may be concealed within one of the tubular stands. CAUTION Ensure safe and proper operation. Refer to the “Installation Site Requirements”... -
Page 14: Limited Warranty
Hatco’s written instructions or Without limiting the generality of the foregoing, SUCH 18 months from the date of shipment from Hatco. Buyer must WaRRaNTIES DO NOT COVER: Coated incandescent light establish the Product’s purchase date by registering the... - Page 15 NOTES Form No. GRN4m-0312...
-
Page 16: Authorized Parts Distributors
