Air Live FE-501DM User Manual

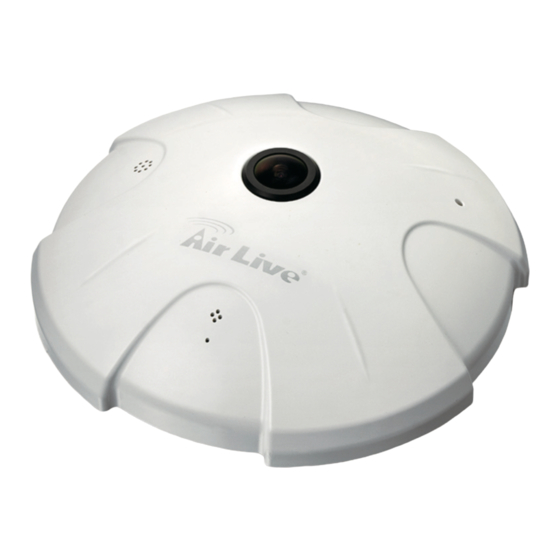

5mp fisheye indoor poe dome camera
Hide thumbs Also See for FE-501DM:
Table of Contents

Advertisement

Quick Links

Download this manual
FE-501DM
5MP Fisheye Indoor PoE Dome
Camera
User's Manual

Advertisement

Table of Contents
loading

Related Manuals for Air Live FE-501DM

Summary of Contents for Air Live FE-501DM

  • Page 1 FE-501DM 5MP Fisheye Indoor PoE Dome Camera User’s Manual...
  • Page 2 This product contains some codes from GPL. In compliance with GPL agreement, AirLive will publish the GPL codes on our website. Please go to www.airlive.com and go to the "Support->GPL" menu to download source code. All Trademarks are properties of their respective holders. AirLive FE-501DM User’s Manual...
  • Page 3 The lists of entities entitled to receive used equipment can be found on the websites of municipalities. Some components of devices such as external wiring, circuit boards and liquid crystal displays have a negative impact on the environment. AirLive FE-501DM User’s Manual...

  • Page 4: Table Of Contents

    4.1 Live View....................15 4.2 Configuration ..................19 5. Configuration ...................20 5.1 Network....................21 5.2 Video....................26 5.3 Audio....................35 5.4 Event....................37 5.5 Storage ....................46 5.6 System....................48 6. Operating IP Camera via iOS/Android Device ........55 6.1 Using IP Camera via iOS/Android Device..........55 AirLive FE-501DM User’s Manual...

  • Page 5: Overview

    Pixel resolution respectively and superior H.264-AVC performance and rich functions. FE-501DM includes a fish-eye lens for 360° panoramic wide angle view without blind spot. It is very suitable to view a wide area with single camera such as hallway, store, and office without the need to install multiple cameras.

  • Page 6: Features

    Built-in MicroSD Card Slot, support SDHC/SDXC 64GB or above Built-in 802.3af Compliant PoE OnVIF Compliant for Interoperability 1.3 Product Specification Camera FE-501DM Multimedia Soc (System-on-Chip) NOR Flash 16MB 512MB Camera Features Image Sensor 1/2.5” Progressive CMOS Sensor Maximum Resolution 1920x1920 AirLive FE-501DM User’s Manual...
  • Page 7 & mirror, privacy masks, time stamp, text overlay Audio Audio Capability Audio input/output (full duplex) Compression G.711u Built-in microphone Interface External microphone input Effective Range 5 meters Network Users Live view for up to 10 clients AirLive FE-501DM User’s Manual...
  • Page 8 Temperature Operating Humidity 10%~80% System Requirements Operating System Windows® 2000, XP, Vista, 7 Web Browser Mozilla Firefox 7~10, Internet Explorer 7.x or 8.x, Chrome/Safari 4.0 or above Video Player VLC, Quick Time, Real Player, Core Player AirLive FE-501DM User’s Manual...

  • Page 9: System Requirement

    Internet Explorer 9 or later; Apple Safari; Firefox; Google Chrome Recorded File Microsoft Media Player 11.0 or later Playback Note: Please keep updating the latest Windows software and service package. (Ex: Net Framework, Windows Media Player, Enhance ActiveX Security) AirLive FE-501DM User’s Manual...

  • Page 10: Package Contents And Installation

    2.1 Package Content User can find the following items in the package as below: 1. FE-501DM is the main element of the product. 2. Power Adapter dedicates 12V DC electric power output to Network Camera. 3. Bundle CD provides installation software, application program, important information and instructions for operating the Network Camera.
  • Page 11 PWR LED start refreshing with orange color. 6. Power Jack: The input power is DC 12V. Note: ONLY use power adapter supplied with the package. Otherwise, the product may be damaged. 7. RJ-45 LAN Socket: Connect to PC or Hub / Switch. AirLive FE-501DM User’s Manual...
  • Page 12 2 nodes must not exceed DO_NO1 130mA. An external “Relay” can also be connected to the terminals as an implementation. In this case, current (or/and voltage) limitation is specified by the external Relay. AirLive FE-501DM User’s Manual...

  • Page 13: Mounting The Camera

    Please attach the supplied alignment sticker to the place you would like to set up first. And then follow the drilling and installing instructions on the sticker to complete Camera’s installation. Note: Always mount the Camera on mounting bracket to prevent over heating. AirLive FE-501DM User’s Manual...

  • Page 14: Install The Camera In Lan

    5. With power switched on, check the status of the two LEDs at the back of camera: If the Network LED flashes with green color, it confirms that the Camera has successfully linked with the Internet. AirLive FE-501DM User’s Manual...

  • Page 15: Connect To Ip Camera

    Intranet only; not through Internet Network. 2.5 Connect to IP Camera 1. Insert the bundled CD into your PC/Laptop. Auto Run screen pops up, click “Install Software AirLive IP Wizard II” to install the configuration tool. AirLive FE-501DM User’s Manual...
  • Page 16 2. Package Contents and Installation 3. After completing installation, run the “Air Live IP Wizard II” to start to search the IP camera. AirLive FE-501DM User’s Manual...
  • Page 17 5. If the Camera’s IP address is in the same IP segment as your LAN, select the founded IP Camera and double click on the item. Then, the default browser will show up and connect to the IP camera’s Web automatically. AirLive FE-501DM User’s Manual...

  • Page 18: Using Ip Camera Via Web Browser

    You can change them in the Security Menu. (Please check “Configuration → Security”) 3. The monitor image will be displayed in your browser. In the left side of main window, you can configure the settings you want. For more details, please refer to the following chapters. AirLive FE-501DM User’s Manual...

  • Page 19: Operating The Network Camera

    You can operate live view function on the main page, please refer to the description below: 4.1 Live View 1. Original size / Preview Size Switches live image view between original size (Depends on main stream setting) and preview size. 2. Digital Zoom You can see larger objects in video. AirLive FE-501DM User’s Manual...
  • Page 20 “Enable ROI (Stream)” function will appear. For the first time use, you may Left-click the mouse button under lower-left, upper-right or lower-right Live View Window. Then you could see a x1 frame displaying in the Source View Window. AirLive FE-501DM User’s Manual...
  • Page 21 Such as Quad with Source View will have five stream output maximum at the same time. rtsp://camera ip address/live1.sdp means whole display window could be seen. rtsp://camera ip address/live2.sdp means upper-left Source View Window could be seen. AirLive FE-501DM User’s Manual...
  • Page 22 To reset the scene back to its original status, click the Home button. You can also directly click the mouse button on the video to drag for pan and tilt, roll the mouse wheel for zoom a selected area. AirLive FE-501DM User’s Manual...

  • Page 23: Configuration

    User can select proper streaming protocol according to network environment. 10. View Options It is a pull-down list for video streaming. 11. Language FE-501DM supports multi-language. 4.2 Configuration Click “Configuration” for the camera’s detail settings. For more information, please refer to Chapter 5. AirLive FE-501DM User’s Manual...

  • Page 24: Configuration

    5. Configuration Configuration Click the “Configuration” to display sub-menus included: Network / Video / Audio / Event / Storage / System AirLive FE-501DM User’s Manual...

  • Page 25: Network

    DHCP server each time the Camera is connected to the network. • Fixed IP Address: This option manually assigns a static IP address to the Network Camera. The default setting is 192.168.1.100. • PPPoE: Select this option to set PPPoE account & password. AirLive FE-501DM User’s Manual...
  • Page 26 • HTTP Port: Re-define the existing HTTP Port number in the text box. • RTSP Port: Re-define the existing RTSP Port number in the text box. : After setups are completed, click “Save” button to apply the settings. AirLive FE-501DM User’s Manual...
  • Page 27 Service Provider. Update Time: Define a time interval for the device to periodically update and check its access status with website of DNS Service Provider. : After setups are completed, click “Save” button to apply the settings. AirLive FE-501DM User’s Manual...
  • Page 28 In other words, the camera can send just one streaming and each client can receive the streaming with Multicast Protocol. Even with the client number increasing, the network bandwidth is still the same loading with one camera. AirLive FE-501DM User’s Manual...
  • Page 29 : Filling the IP range, then click “Save” button to implement the settings. : If you would like to re-open the access right of those listed device, select it from the list and then click “Remove” button to apply the settings. AirLive FE-501DM User’s Manual...

  • Page 30: Video

    5. Configuration 5.2 Video 1. Stream AirLive FE-501DM User’s Manual...
  • Page 31 I-Frames. Lager value means longer distance between two I-Frames and this selection is suitable for the stable Network Bandwidth Environment; so we suggest the smaller value selection is proper to the worse Network Bandwidth Environment. AirLive FE-501DM User’s Manual...
  • Page 32 For example: the default RTSP Port Access Name is live1.sdp；it means your playback stream name would be “RTSP://camera’s IP address/live1.sdp” : After setups are completed, click “Save” button to apply the settings. 2. Video: AirLive FE-501DM User’s Manual...
  • Page 33 5. Configuration AirLive FE-501DM User’s Manual...
  • Page 34 Adjust the Saturation value to 255. • Contrast: The brightness ratio of the lightest to the darkest part of the video image. Try to assign the fit value according to the environment. AirLive FE-501DM User’s Manual...
  • Page 35 Camera into “day” or “night” mode relative to luminance of the area under surveillance. When the environment luminance becomes higher than the set lux value, the Camera will auto switch to “day” or “color” mode. Otherwise, it will remain at “night” or “mono” mode. AirLive FE-501DM User’s Manual...
  • Page 36 Set WDR function to Set WDR function to Disable Enable • White Balance: Because camera doesn’t have ability to automatically adjust different color (temperature) to the environment, six templates are provided to let you choose for different light. AirLive FE-501DM User’s Manual...
  • Page 37 • Camera Mount: Three camera mounting types could be chose and will also bring different kinds of Display Mode. - Ceiling: - Wall: - Hi-FPS: ，raise to 30 frames per second and the max resolution value is 1600x1200@30fps. AirLive FE-501DM User’s Manual...
  • Page 38 3. Privacy Mask: This is an “Ellipse” type. This is a “Rectangle” type. This is a “Line” type. The “Privacy Mask” tabbed pane allows you to mask or block private areas from surveillance for privacy reason. AirLive FE-501DM User’s Manual...

  • Page 39: Audio

    “Save” button. This will turn the laid out screen into solid block. 5.3 Audio 1. System The” Audio” tabbed pane provides the following audio adjustments to your Camera microphone and speaker. AirLive FE-501DM User’s Manual...
  • Page 40 Line Out: Connect a loud speaker to the Audio-Out port of camera. This is for voice alerting and two-way audio. Be noted to use actively speaker (normally with power supplier on speaker) for this application. : After setups are completed, click “Save” button to apply the settings. AirLive FE-501DM User’s Manual...

  • Page 41: Event

    5. Configuration 5.4 Event 1. Motion Detection 1. To enable “Motion Detection” function. 2. To draw a region to define the detection range. AirLive FE-501DM User’s Manual...
  • Page 42 Time Lapse (in seconds) whenever motion is detected. The video record may be provided to host by E-mail/FTP, stored in the SD card, Remote Disk as selected or through all of them. AirLive FE-501DM User’s Manual...
  • Page 43 Motion is ignored with this method. Each recording time-span is in accordance with the setting value of Post event recording (in seconds) and the video record is stored in the SD card, Remote Disk as selected or through both of them. AirLive FE-501DM User’s Manual...
  • Page 44 Each recording time-span is in accordance with the total value of Pre-event recording and Post event recording (in seconds). And the video record may be provided to host by E-mail/FTP, stored in the SD card, Remote Disk, activated GPIO Output Port or through all of them. AirLive FE-501DM User’s Manual...
  • Page 45 Camera buffer and 3 snapshot frames are captured live. The stream of accumulated snapshots may be sent to host by E-mail, FTP, stored in the SD card, Remote Disk as preferred or through all of them. AirLive FE-501DM User’s Manual...
  • Page 46 Camera buffer and 3 snapshot frames are captured live. The stream of accumulated snapshots may be sent to host by E-mail, FTP, stored in the SD card, Remote Disk as preferred or through all of them. AirLive FE-501DM User’s Manual...
  • Page 47 • GPIO: On the defined days of the week and at certain time of the set days, the Camera will trigger its GPIO Input Signal according to the set time interval (in seconds) when its state changes. Single or 6 snapshots may be captured at a time as defined. AirLive FE-501DM User’s Manual...
  • Page 48 The stream of accumulated snapshots may be sent to host through E-mail, FTP, stored in the SD card, Remote Disk, activated GPIO Output Port; per selection or through all of them. When selected, the setup dialog for these methods will display is illustrated in the following figure. AirLive FE-501DM User’s Manual...
  • Page 49 ※ As for the settings of FTP Service, kindly please contact with your FTP service provider。While all parameters filled in Windows FTP Transferring Utility are correct and working properly under your Laptop or other PC, you may enter them into the text area manually. AirLive FE-501DM User’s Manual...

  • Page 50: Storage

    If recording is in progress when clicking the “Storage” button, a warning message will occur. SD card management: • : Click this button to save changes to the SD card control setting. AirLive FE-501DM User’s Manual...
  • Page 51 4) Select the file to playback and enable the corresponding check box. The dialog strip below will then pops up. 5) Clicking Open button will playback the file. Save button will save file to a designated folder. AirLive FE-501DM User’s Manual...

  • Page 52: System

    5. Configuration 5.6 System 1. Information The “Information” tabbed pane provides the existing system status of the Camera which includes Model Name, System Time, Firmware Version, MAC Address, ActiveX Control Version, Wired Network and DDNS Server Status. AirLive FE-501DM User’s Manual...
  • Page 53 • Time Zone: Select the applicable Time Zone of your city in reference to Greenwich Mean Time. • Automatic: Select this item if you want to automatically synchronize the Camera clock with your manually entered Network Time Protocol (NTP) Server. AirLive FE-501DM User’s Manual...
  • Page 54 The “Account” tabbed pane allows you to add new Camera User Name and change Password and the surveillance status or User Group. Click the “Add” button to access the security setup dialog (shown below). AirLive FE-501DM User’s Manual...
  • Page 55 Camera live stream, other adjustments of Camera parameter are prohibited. Viewer: User is only allowed to login “Live View” Webpage and perform all functions within this page. Changing Camera settings is prohibited. : After setups are completed, click “Save” button to apply the settings. AirLive FE-501DM User’s Manual...
  • Page 56 “Network setting” parameters. Besides, all configured data in the “System Time”, “Account” and “Maintenance” tab will be remained current. AirLive FE-501DM User’s Manual...
  • Page 57 1) Click the “Browse” button to access and select saved “config_backup.tar.gz” file from the PC. 2) Click the “Restore” button to process Camera configuration restore. 5. System Log Click it. There will be another browser page opening and then displaying Camera’s basic log. AirLive FE-501DM User’s Manual...
  • Page 58 Remote Log Server. • Remote Log Setting: Check “Enable remote log” selection first; and then manual entering IP address & port setting of Remote Log Server. : After setups are completed, click “Save” button to apply the settings. AirLive FE-501DM User’s Manual...

  • Page 59: Operating Ip Camera Via Ios/Android Device

    You can access into your IP camera via the iOS/Android device. Please follow the setup steps below. 2. Execute the AirLive CamPro 1. Download AirLive CamPro Mobile program Mobile from APP store/Google play 3. Click Setup button. 4. Setup page appears AirLive FE-501DM User’s Manual...
  • Page 60 6. Operating IP Camera via iOS/Android Device 5. Click Add and Auto Search button.   Select the camera. 7. Edit the information and User Name/Password, click “Save”. AirLive FE-501DM User’s Manual...
  • Page 61 6. Operating IP Camera via iOS/Android Device 8. Click “Back”. 9. Select the camera. 10. Select the channel to 11. Camera live view. enlarge the video. Note: The image is continuous snapshots, not video. Thus, live image can’t be recorded here. AirLive FE-501DM User’s Manual...
