Summary of Contents for Air Live FE-200VD

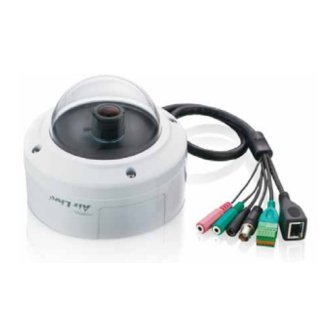

- Page 1 FE-200VD 2-MegaPixel Vandal Dome Fish Eye PoE IPCAM User’s Manual AirLive FE-200VD Manual...
- Page 2 For AC Adaptor to avoid electrical shock, do not open the cabinet. Refer servicing to qualified personnel only. Notice: The changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. AirLive FE-200VD Manual...
-
Page 3: Declaration Of Conformity
IMPORTANT NOTE: To comply with the FCC RF exposure compliance requirements, no change to the antenna or the device is permitted. Any change to the antenna or the device could result in the device exceeding the RF exposure requirements and void user’s authority to operate the device. AirLive FE-200VD Manual... - Page 4 We reserve the right to make any modification to this manual or the information contained herein at any time without notice. The software described herein may also be governed by the terms of a separate user license agreement. AirLive FE-200VD Manual...
-
Page 5: Table Of Contents
4. Administrating the Device..................16 4.1 Video: Configure Profile ..................16 4.1.1 General....................16 4.1.2 Advanced....................17 4.2 Camera: Adjust Camera Parameters ..............19 4.2.1 General....................19 4.2.2 Advanced....................21 4.3 Event .........................26 4.3.1 Event Server....................26 4.3.2 Motion Detection..................27 4.3.3 I/O Ports ....................29 4.3.4 Event Configuration .................30 AirLive FE-200VD Manual... - Page 6 Appendix D: Bandwidth Estimation................49 Appendix E: Specifications ..................50 Appendix F: Configure Port Forwarding Manually ...........52 Appendix G: DDNS Application ................55 Appendix H: Power Line Frequency ................61 Appendix I: 3GPP ....................62 Appendix J: Enable UPnP of Windows XP ..............63 AirLive FE-200VD Manual...
-
Page 7: Introduction
1. Introduction Introduction 1.1 Overview AirLive FE-200VD is a Fish-Eye Vandal Dome Network Camera featured with 2Mega Pixel resolution and superior H.264-AVC performance and rich functions. AirLive FE-200VD includes a fish-eye lens for 360° panoramic wide angle view without blind spot. -
Page 8: Package Contents
4. Quick Start Guide provides important information and instructions for installing this device. Note: Using a power supply with a different voltage than the one included with the Network Camera will cause damage and void the warranty for this product. AirLive FE-200VD Manual... -
Page 9: Connections
This LED will be flashing while network accessing via Ethernet. Power (orange color) This LED is used to indicate whether DC power is on or not. In addition, this LED will be flashing while the wireless accessing of the Camera. AirLive FE-200VD Manual... - Page 10 4. DC-in Jack The input power is 12VDC. Note: Please use the bundle adapter for the Network Camera. Otherwise, the product may be damaged. 5. MIC in (audio in) Connect a microphone to the network camera. AirLive FE-200VD Manual...
-
Page 11: Mounting The Camera
1.4 Mounting the Camera Ceiling Mount: Fix the camera with as below. Take out the camera and accessories from the package: The installation sticker, wrench and FE-200VD Use the wrench to open the cover. 3. Paste the sticker to a suitable position. -
Page 12: Install The Camera In Lan
Once you have installed the camera well and powered it on, the power LED (orange) will turn on later. The power LED turns on, it means the system is booting up successfully. Furthermore, if you have a proper network connection, and access to the camera, the LAN LED (green) will flash. AirLive FE-200VD Manual... -
Page 13: Preparation
Camera’s IP address and set up related parameter in a Camera. 2.1.1 Search When launch the IPWizard II, a searching window will pop up. IPWizard II is starting to search Network Cameras on the LAN. The existed devices will be listed as below. AirLive FE-200VD Manual... -
Page 14: Upnp Of Windows® Xp, Vista Or 7
Please refer to Appendix J to enable UPnP settings only if your operating system of PC is running Windows XP. Note: Windows 2000 does not support UPnP feature. To discover your device, go to your Desktop and click My Network Places. AirLive FE-200VD Manual... -
Page 15: Install The Device Behind A Nat Router
To use UPnP IGD function (NAT traversal), you need to make sure the UPnP function is enabled in your router. Most new home routers should support this function. Some of routers are default enable and others are not. Please check user’s manual of your NAT router for detail. AirLive FE-200VD Manual... -
Page 16: Access The Device From The Internet Explorer For The First Time
2. Type in your login name and password under “USERNAME” and “PASSWORD” textbox. For the first time use (default value), input the User Name: admin Password: airlive After typing in “admin” on the “USERNAME” and “airlive” on the “PASSWORD”, click “OK” button to start the main menu. AirLive FE-200VD Manual... -
Page 17: Logging In As An User
If you log in the Camera as an ordinary User, “Configuration” function will be not accessible. 2.6 Logging in as an Administrator If you log in the Camera as the Administrator, you can perform all the settings provided by the device. AirLive FE-200VD Manual... -
Page 18: Operating The Network Camera
Click for configuring the camera settings. Language The device can provide multiple languages to meet customer’s requirement. Display Mode Click on different video modes to display different views. Actual Size Display the actual resolution size of the video when checked. AirLive FE-200VD Manual... - Page 19 The PTZ function will display in Broad view, Quad view, Quad with source view, Double view and Triple view of Ceiling Mount. Click on the PTZ icon, the web will popup the control panel to control e-PTZ function of FE-200VD. Broad view PTZ control panel: 1.
- Page 20 The device supports 2-way audio function. User can chose to enable or disable this function by toggling the icon below. : Disable speaker function. : Enable speaker function. : Disable audio uploading function. : Enable audio uploading function. AirLive FE-200VD Manual...
- Page 21 Select Recording Location to select the save path and file name prefix, select OK to continue. Push to talk Click on the "push to talk" button continually, you can talk to the person via speaker of the IP Camera. AirLive FE-200VD Manual...
-
Page 22: Administrating The Device
Customize Provides the user features to customize the outlook of the web user interface 4.1 Video: Configure Profile 4.1.1 General OSD Setting: Enable OSD to display camera name and date/time on the image. AirLive FE-200VD Manual... -
Page 23: Advanced
(bit rate). In spite of the required recording storage estimation, VBR is by way of compensation that adjustable bit rate fits the actual image activity. AirLive FE-200VD Manual... - Page 24 The Frame Rates defines the number of frames that will be displayed per second. The frame rate setting can affect the target bit rate (bandwidth requirement) and storage requirement. Note: While multiple streaming is possible, each stream has its limitation and dependency to other stream. AirLive FE-200VD Manual...
-
Page 25: Camera: Adjust Camera Parameters
Contrast: Set the difference in color and light between parts of an image. Sharpness: Set the sharpness of camera. The 5 parameters above are referring to image appearance in terms of color/vision. These are adjustable from this page. AirLive FE-200VD Manual... - Page 26 Web Snapshot Image Setting: Save Path / File name: Click on the “Browse” button to select the desired path to save the snapshot as well as naming it. Save: Save the changes that have been made. AirLive FE-200VD Manual...
-
Page 27: Advanced
4.2.2 Advanced White balance: Adjustment to compensate for different environments in terms of light source. A user can choose auto/hold/sunny/cloudy /indoor, so FE-200VD can determine the correct color compensation due to different light environment. Exposure: Anti-flicker setting for image sensor to fit the frequency of light (power) source. For instance, the power frequency is 50Hz for most European countries, while 60Hz is typically for US. - Page 28 For Choosing Wall mount type, go back to Live view. There are 4 kinds of video layout to choose, including Original view, Broad view, Quad with source view and Triple view. (1) Original view: (2) Broad view: AirLive FE-200VD Manual...
- Page 29 For Choosing Ceiling mount, go back to live view. There are 6 kinds of video layout to choose from Original view, Broad view, Quad view, Quad with source view, Double view and Triple view. (1.) Original view: AirLive FE-200VD Manual...
- Page 30 4. Administrating the Device (2.) Broad view: (3.) Quad view: (4.) Quad with source view: (5.) Double view: AirLive FE-200VD Manual...
- Page 31 For Choosing 720P Wall Mount type, go back to Live view. There are 3 kinds of video layout to choose, including Broad view Double view Double with source view. (1.) Broad view: (2.) Double view: (3.) Double with source view: AirLive FE-200VD Manual...
-
Page 32: Event
Add HTTP Server: Click on the “Add HTTP” to expand HTTP server setting. HTTP Server: Name: Give a name for the HTTP server URL: Input the network address of the HTTP server Username / Password: Input the username and password of the HTTP. AirLive FE-200VD Manual... -
Page 33: Motion Detection
4. Administrating the Device Remove: Click “Remove” to delete selected event servers. 4.3.2 Motion Detection To add a motion detection area: AirLive FE-200VD Manual... - Page 34 4. Select color for detection window. 5. Draw detection window on the image. 6. Once everything is done, click on “Save” to save the configuration made. Configured detection window will be displayed in motion detection list. (Circled in blue) AirLive FE-200VD Manual...
-
Page 35: I/O Ports
2. Motion Detection windows need to be modified if users change video layout. 4.3.3 I/O Ports AirLive FE-200VD supports 1 photo-coupled relay inputs and 1 relay outputs. Refer to “Appendix A: I/O Terminal Connectors” for detail pin description and application. The below table shows the status of the external trigger/alarm devices. -
Page 36: Event Configuration
A user can select which video stream should be recorded, and the size of each sliced file. When the check box is ticked and setting is saved, the recording process starts. Recording files are saved to the Micro SD storage. AirLive FE-200VD Manual... -
Page 37: Storage
4.5 Network 4.5.1 General Device IP configuration, includes DHCP and Static IP setting. “Enable ARP/Ping” enable device to accept ARP or ping packets from the network. Disable this option may provide extra security from intentional ping. AirLive FE-200VD Manual... - Page 38 A standard builds on Ethernet and Point-to-Point network protocol. It allows your device with xDSL or cable connects with broadband network directly. Then, your device can dial up and get a dynamic IP address. For more PPPoE and Internet AirLive FE-200VD Manual...
-
Page 39: Advanced
Configure a NTP (Network Time Protocol) server, so that the device system date and time can be synchronized with a specified Time Server or DHCP server. HTTP: Set the HTTP port that will be applied for Web UI access. RTSP: Set the RTSP (Video) port for video data transmission. AirLive FE-200VD Manual... -
Page 40: Smtp (Setup E-Mail Configuration)
Assigned name that will be used for access to the device User Name/Password: Account authentication for logging to this service. Update Time: Periodically, the device updates its access info to sever in the configured time. Response: The device responds the connection info. AirLive FE-200VD Manual... -
Page 41: System
4.6.1 Information Lists - System and Network configurations. Firmware Version: This information shows the firmware version of the device. 4.6.2 User Use this menu to add, update, or remove the usernames and passwords of the Administrator and viewer. AirLive FE-200VD Manual... -
Page 42: Day & Time
Click this option to enable time synchronization with computer time. Synchronize with NTP: Click this option if you want to synchronize the device’s date and time with those of time server called NTP server (Network Time Protocol). AirLive FE-200VD Manual... -
Page 43: Server Maintenance
Load Default (Excluding Network setting): The unit is restarted and most current settings are reset to factory default values. This action will not reset the network setting. AirLive FE-200VD Manual... - Page 44 Furthermore, the firmware upgrade procedure always is risk and do not try to upgrade new firmware if it’s not necessary. Backup Setting: To take a backup of all of the parameters, click this button. If necessary, it will then be possible to return to the previous settings. AirLive FE-200VD Manual...
-
Page 45: Log Service
This page provides the user features to customize the outlook of the web user interface There are two types of layout settings: Use Default Look or Use Custom Settings. Use Default Look: The default layout of live/configuration pages. AirLive FE-200VD Manual... - Page 46 Web link(s) will be presented on the live page when enabled. It can be a link to another IP camera for instance, or other preferred web link. Use Custom Settings: The allowed modifications are changing of Background / Text Color, Background picture, Title, Description, Logo Link and Logo. AirLive FE-200VD Manual...
-
Page 47: Appendix
Connect to GND to activate, or leave floating (or unconnected) to deactivate. DIGITAL-IN PIN with a short wire connecting two revert to factory default settings. DEFAULT User can refer to the schematic below to make a proper connection between I/O connector and external sensor and output device. AirLive FE-200VD Manual... - Page 48 THAT REQUIRE LARGE AMOUNTS OF CURRENT. IN SOME CASES, A CUSTOM INTERFACE CIRCUIT (CUSTOMER PROVIDED) MAY HAVE TO BE USED. SERIOUS DAMAGE TO NETWORK CAMERA MAY RESULT IF A DEVICE IS CONNECTED TO THE EXTERNAL I/O THAT EXCEEDS ITS ELECTRICAL CAPABILITY. AirLive FE-200VD Manual...
-
Page 49: Appendix B: Troubleshooting & Frequently Asked Questions
If a firewall exists on the network, port 80 is open for installed and work if a ordinary data communication. The HTTP port and firewall exists on the RTSP port need to be opened on the firewall or NAT network. router. AirLive FE-200VD Manual... - Page 50 If you are experiencing problems, try upgrading to with the device the latest version of Microsoft’s Internet Explorer from the Microsoft webpage. IPWizard II program • Network may have trouble. Confirm the parameters fails to save the and connections of the device. network parameters. AirLive FE-200VD Manual...
- Page 51 The port number assigned in your Network Camera might not be available via Internet. Check your ISP for available port. • The proxy server may prevent you from connecting directly to the Network Camera, set up not to use the proxy server. AirLive FE-200VD Manual...
- Page 52 Internet Explorer are configured properly and then try reloading the device’s home page. Most likely, the ActiveX control did not download and install correctly. Check your Internet Explorer security settings and then close and restart Internet Explorer. Try to browse and log in again. AirLive FE-200VD Manual...
- Page 53 Try reducing the video streaming size to 160x120 or 320x240 and/or disabling audio. • Audio will consume 32 kbps. Disable audio to improve video. Your Internet connection may not have enough bandwidth to support streaming audio from the device. AirLive FE-200VD Manual...
- Page 54 White-light LED Miscellaneous Can not play the Have installed Microsoft®’s DirectX 9.0 or later and use recorded ASF file the Windows Media Player 11.0 or later to play the AVI filed recorded by the Device. AirLive FE-200VD Manual...
-
Page 55: Appendix C: Ping Ip Address
Here is a guideline to help you roughly estimate the bandwidth requirements form your device. The required bandwidth depends on content of video source. The slow motion video will produce smaller bit rate generally and fast motion will produce higher bit rate vice versa. AirLive FE-200VD Manual... -
Page 56: Appendix E: Specifications
4:3 Res. @ 15 FPS; 16:9 Res. @ 30 FPS Frame Rate Brightness, Sharpness, Saturation, Exposure, White balance Image Setting control HTTP, TCP/IP, IPv4, UDP, SMTP, FTP, DHCP, DDNS, NTP, Streaming DNS, ARP, RTSP, RTP, Samba Clinet, UPnP Audio RTSP: G.711 64kbps Audio Encoder AirLive FE-200VD Manual... - Page 57 20% ~ 80% (non-condensing) Operating Humidity HxWxD:180x180x55 (φ)mm Dimension Viewing System Windows® XP, Vista, 7 IE 6.0 or later, Firefox 2.0 or later, Safari Browser With 3GPP player Cell Phone VLC, Quick Time, Real Player, Core Player Video Player Software AirLive FE-200VD Manual...
-
Page 58: Appendix F: Configure Port Forwarding Manually
Internet. Be sure to uncheck the Reset IP address at next boot button at the top of the screen after modifying the IP address. Failure to do so will reset the IP address when you restart your computer. AirLive FE-200VD Manual... - Page 59 Follow these steps to configure your router’s Virtual Server settings • Click Enabled. • Enter a unique name for each entry. • Select Both under Protocol Type (TCP and UDP) • Enter your camera’s local IP Address (e.g., 192.168.0.100, for example) in the Private IP field. AirLive FE-200VD Manual...
- Page 60 Enter valid ports in the Virtual Server section of your router. Please make sure to check the box on this line to enable settings. Then the device can be access from WAN by the router’s WAN IP Address. By now, you have finished your entire PC configuration for this device. AirLive FE-200VD Manual...
-
Page 61: Appendix G: Ddns Application
DDNS and PPPoE of the Networked Device in order to let the outside administrator be able to access through internet. Application Steps—DDNS & Domain Name (1). Visit the following web site: http://www.dyndns.org/ (2). Click “Account” AirLive FE-200VD Manual... - Page 62 (3). After the columns show up at the left side, click “Create Account”. (4). Fill the application agreement and necessary information. a. Username b. E-mail address and confirmation c. Password and confirmation d. Submit all the input information and finish creating an account AirLive FE-200VD Manual...
- Page 63 Click these two options (5). Check your e-mail mailbox. There will be an e-mail with a title “Your DynDNS Account Information“. Click the hyperlink address to confirm the DDNS service that you just applied. Then DDNS you applied activated. AirLive FE-200VD Manual...
- Page 64 DDNS server. Input your account (7). If the correct username and password are input, you can see the following picture at the top-right of the login page. AirLive FE-200VD Manual...
- Page 65 5. Appendix (8). Click the “Services”. (9). Click the “Dynamic DNS”. (10). Click the “Get Started”. AirLive FE-200VD Manual...
- Page 66 DDNS and PPPoE after the application of DDNS service. Please check the user manual to access the DDNS and PPPoE pages. After saving the modification, restart the device. Then the external users could browse the Networked Device by the input of their domain name. AirLive FE-200VD Manual...
-
Page 67: Appendix H: Power Line Frequency
230V 50 Hz Italy 230V 50 Hz *Eastern Japan 50 Hz (Tokyo, Kawasaki, Sapporo, Yokohoma, and Japan 100V 50/60 Hz* Sendai); Western Japan 60 Hz (Osaka, Kyoto, Nagoya, Hiroshima) Malaysia 240V 50 Hz Netherlands 230V 50 Hz AirLive FE-200VD Manual... -
Page 68: Appendix I: 3Gpp
2. Use the following URL to access: rtsp://host/mpeg4/media.3gp Where host is the host name or IP address of the camera. Compatible 3G mobile phone: Please contact your dealer to get the approved list of compatible 3G phone. AirLive FE-200VD Manual... -
Page 69: Appendix J: Enable Upnp Of Windows Xp
Appendix J: Enable UPnP of Windows XP Use the following steps to enable UPnP settings only if your operating system of PC is running Windows XP. Go to Start > Settings. Click Control Panel Click Add or Remove Programs AirLive FE-200VD Manual... - Page 70 5. Appendix Click Add/Remove Windows Components The following screen will appear: Select Networking Services Click Details AirLive FE-200VD Manual...
- Page 71 5. Appendix Select Universal Plug and Play Click Ok Click Next AirLive FE-200VD Manual...
- Page 72 5. Appendix Please wait while Setup configures the components. Click Finish AirLive FE-200VD Manual...
