1) Install the Microphone onto the transmitter.
a. Unscrew the collar by turning it fully clockwise until it
stops.
b. Turn the collar two turns counter-clockwise to
extend the locking tab
c. Press the mic onto the XLR connector until you
hear a "click." The click indicates the mic has
locked into place.
d. Tighten the collar by turning it counter-clockwise.
e. Pull on the mic to ensure locking.
f. For added security, tighten the setscrew.
6

OPERATING INSTRUCTIONS

Warning: Worn mics may not "click" and may not properly lock.
Be sure to use the setscrew to lock it in place.

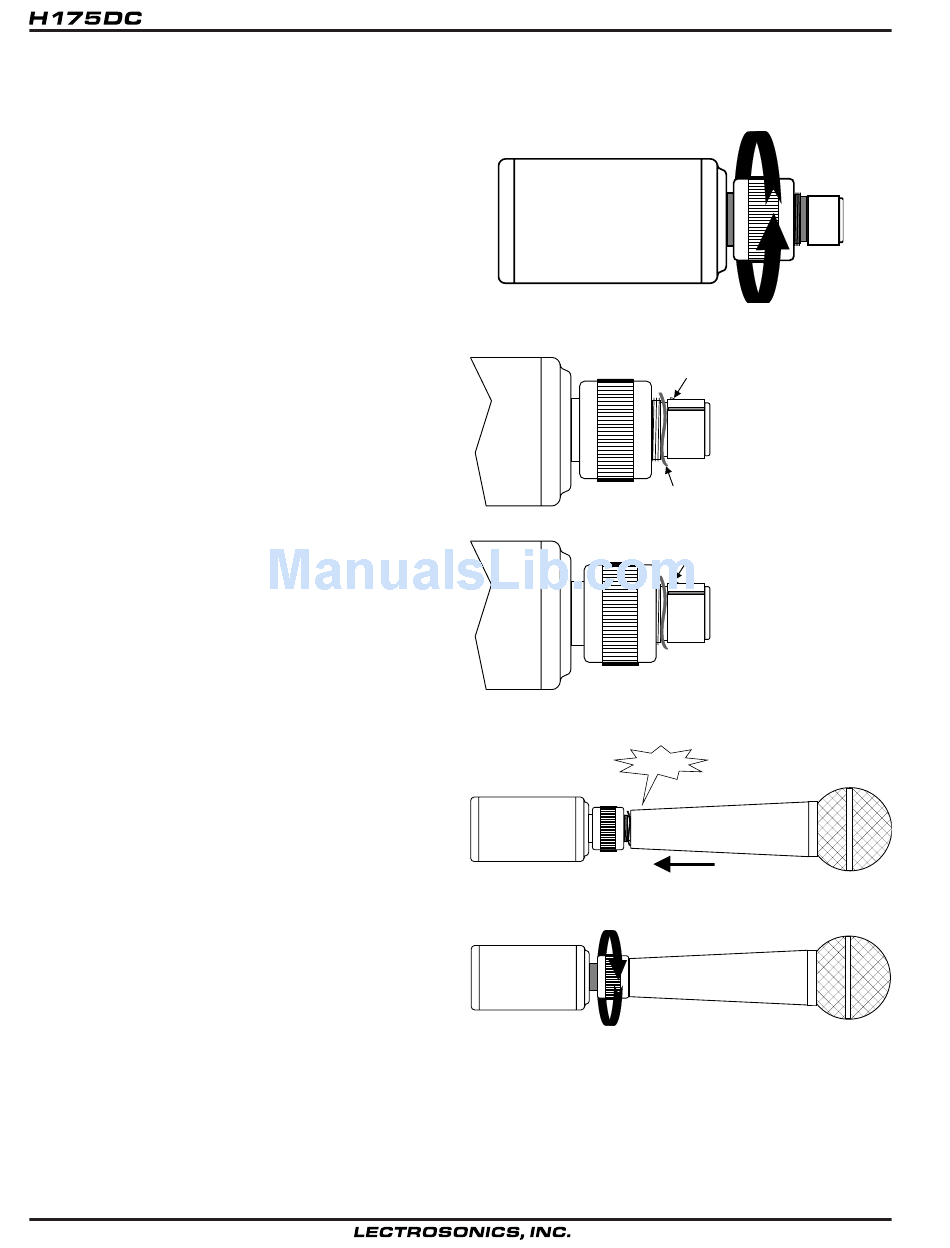

Locking tab fully retracted
Knurled knob
turned completely
clockwise.
Compression Washer
Locking tab partially extended
Knurled knob
turned two turns
counter-clockwise.
Click!
