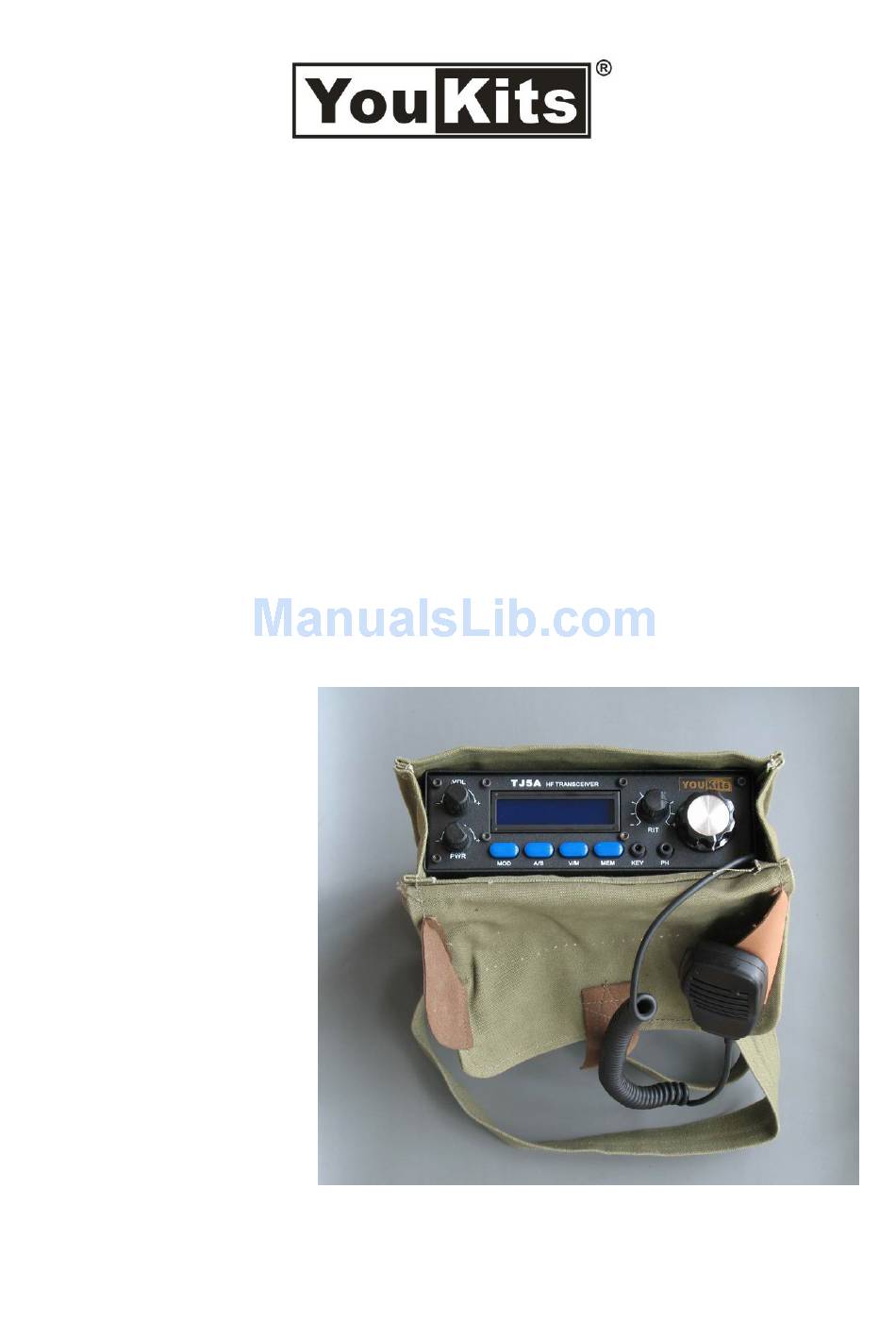

Youkits TJ5A SSB CW HF TRANSCEIVER
IMPORTANT!
Never try the long key at the full power output. This would overheat the power
transistors.Always use half or lower power to tune the tuner.Use the matched high
efficient antenna such as the dipole, V-dipole, Yagi, long wire with a tuner. Low
efficient antenna, such as small loop, short whip, the shortened wire of a few
meters, etc. are not recommended, which would degrade the sensitivity of TJ5A,
and lower audio output.
OPERATION GUIDE
TJ5A is a high-performance portable multi-band SSB/CW transceiver, used with DDS as
LO, offering wide frequency coverage and fine tuning rate. The Doubly Balanced Diode
Ring Mixer makes strong signal handling capability possible.
Features:
Removable Battery Pack
Low RX current Drain
High-Performance AGC
40 Memories
Dual VFO
Memory-VFO Transfer
Operating Frequency:
Wide Band RX
2.500000 - 29.999990
TX / Ham Band RX
7.000000 – 7.300000
14.000000 – 14.350000
18.068000 – 18.168000
21.000000 – 21.450000
1
