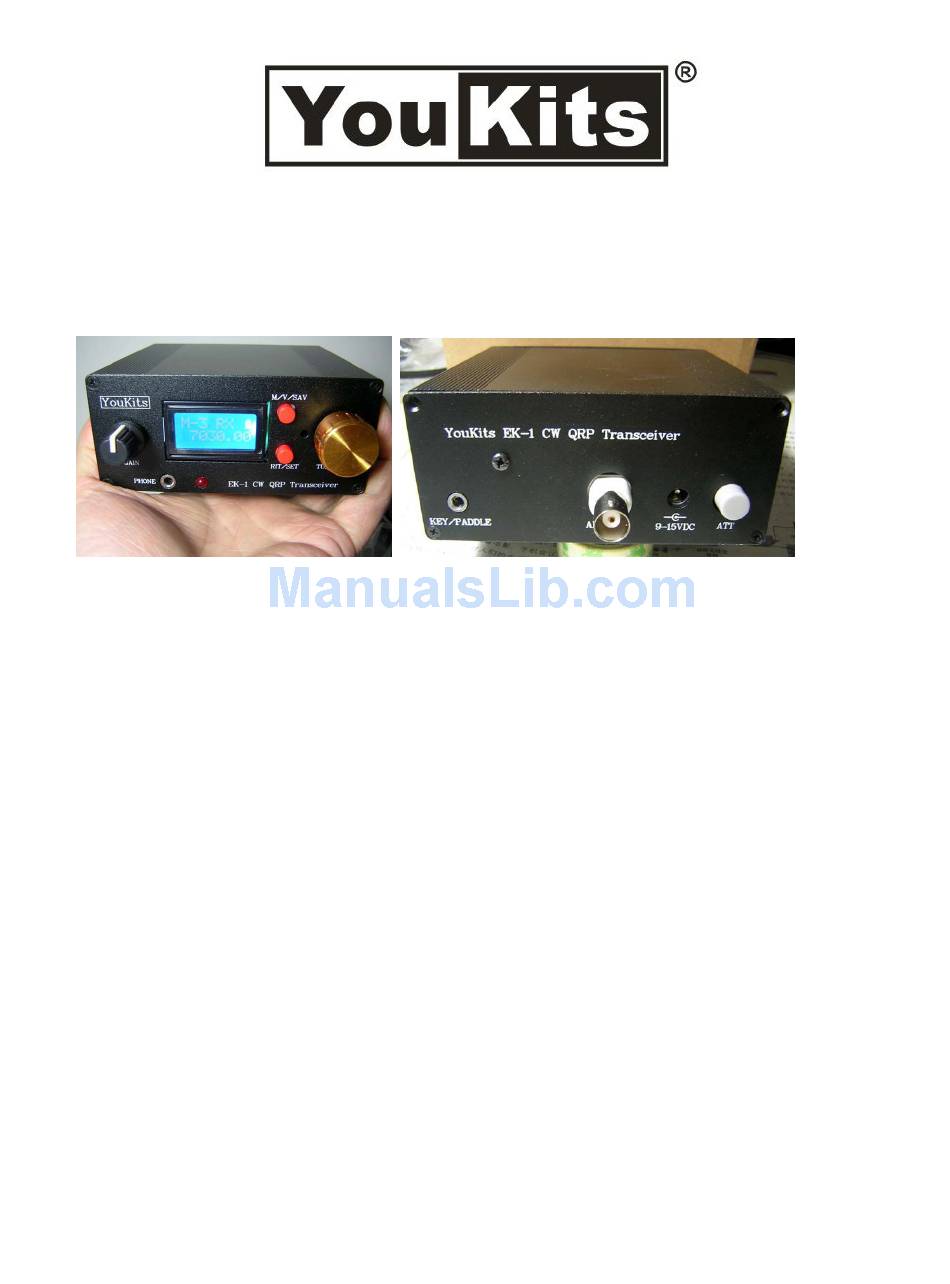

EK-1A（2014）3 Band CW QRP Transceiver
Operating manual
Specification:
Size:107*47*103mm
Weight: about 300g (without battery pack)
Working voltage:9-15VDC。
Current consumption: RX= 80-90mA TX=0.8A（12VDC）
Working Frequency
RX:5.9-16MHz
TX: 7.0-7.3MHz、10.1-10.15MHz、14.0-14.35MHz。
IF DDS: 60MHz
Display: 0802 LCD
Power output: 4-5W（12VDC）
Sidetone:700Hz
Keyer: builtin speed adjustable 5-40wpm
Freq MEM: 10
Connection
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for YouKits EK-1A
Summary of Contents for YouKits EK-1A
- Page 1 EK-1A（2014）3 Band CW QRP Transceiver Operating manual Specification: Size:107*47*103mm Weight: about 300g (without battery pack) Working voltage:9-15VDC。 Current consumption: RX= 80-90mA TX=0.8A（12VDC） Working Frequency RX:5.9-16MHz TX: 7.0-7.3MHz、10.1-10.15MHz、14.0-14.35MHz。 IF DDS: 60MHz Display: 0802 LCD Power output: 4-5W（12VDC） Sidetone:700Hz Keyer: builtin speed adjustable 5-40wpm...
- Page 2 Key/Paddle The EK-1A has an automatic function that determines what type of key is being used and is initiated on power up. Will show up “Paddle” or “Hand KEY” on screen. Connect ring to paddle dash or straight key's ground.
- Page 3 Operating Power switch and Gain This switch is at left side, counter clockwise tuning to the end to shut off the power, clockwise turning to power it on, GAIN up to the end. Tune/Step Change frequency in VFO mode, change memory location in Memory mode. V/M/SAV Click this button to alternate between Memory mode(MEM)and VFO mode, the LCD screen will show the “M-*”...
- Page 4 RIT/SET button Click this button to enter or exit RIT function. “R-” will be displayed to the middle of the frequency display. When in the RIT mode, turning the tuning knob clockwise will raise the frequency (as indicated by the up arrow). turning the tuning knob counter-clockwise will lower the frequency (as indicated by the down arrow).
- Page 5 Transmitting When transmitting on the frequency of: 7.0-7.3MHz, 10.1-10.15MHz(MOD needed) and 14.0-14.35MHz, the EK-1A will display TX at middle of LCD. Will show “--” when out of the Ham bands. Battery life indicator At front upper corner of display, show “full” if battery voltage higher than 11.5V, showing “empty” when around Youkits 2014-12.06...
