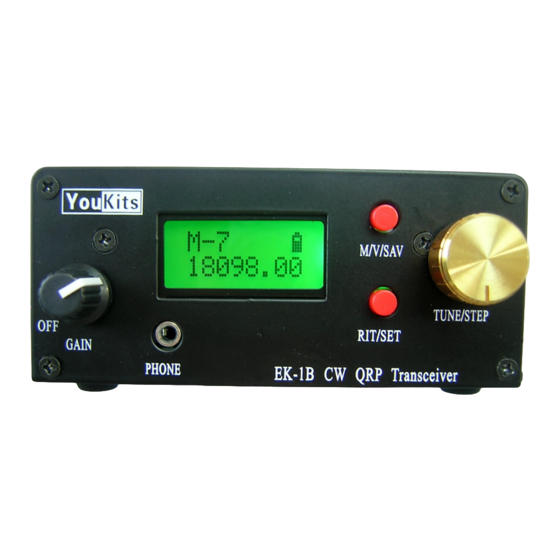

YouKits EK-1B Operating Manual

YouKits EK-1B Operating Manual

3 band cw qrp transceiver

Advertisement

Quick Links

EK-1B(2013)3 Band CW QRP Transceiver
Operating manual

Specification:

Size:120*51*103mm
Weight: about 420g (without battery pack)
Working voltage:9-16VDC。
Current consumption: RX= 120-130mA TX=0.8A(12VDC)
Working Frequency
RX:13.9-22MHz
TX: 14.0-14.35MHz、18.068-18.168MHz、21.0-21.45MHz。
IF DDS: 60MHz
Display: 0802 LCD
Power output: 4-5W(12VDC)
Sidetone:700Hz
Keyer: builtin speed adjustable
Freq MEM: 10

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EK-1B and is the answer not in the manual?

Questions and answers

Summary of Contents for YouKits EK-1B

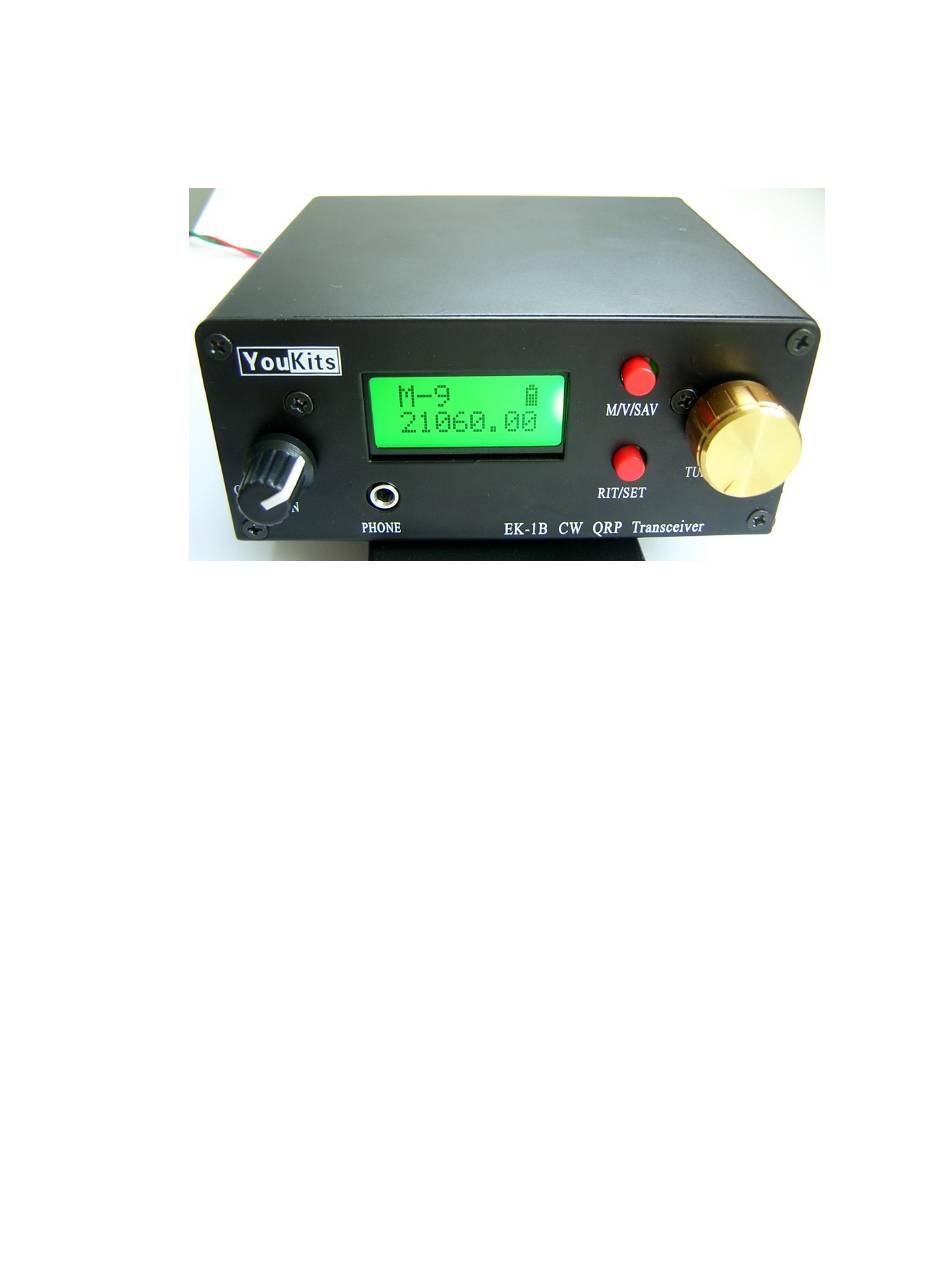

  • Page 1 EK-1B(2013)3 Band CW QRP Transceiver Operating manual Specification: Size:120*51*103mm Weight: about 420g (without battery pack) Working voltage:9-16VDC。 Current consumption: RX= 120-130mA TX=0.8A(12VDC) Working Frequency RX:13.9-22MHz TX: 14.0-14.35MHz、18.068-18.168MHz、21.0-21.45MHz。 IF DDS: 60MHz Display: 0802 LCD Power output: 4-5W(12VDC) Sidetone:700Hz Keyer: builtin speed adjustable...
  • Page 2 Key/Paddle The EK-1B has an automatic function that determines what type of key is being used and is initiated on power up. Will show up “Paddle” or “Hand KEY” on screen.
  • Page 3 Operating Power switch and Gain This swith is at left side, counter clockwise tuning to the end to shut off the power, clockwise turning to power it on, GAIN up to the end. Tune/Step Change frequency in VFO mode, change memory location in Memory mode. V/M/SAV Click this button to alternate between Memory mode(MEM)and VFO mode, the LCD screen will show the “M-*”...
  • Page 4 If STEP changed in MEM mode, then it will automatically change to VFO mode Transmitting When transmitting on the frequency of: 714-14.35MHz, 18.068-18.168MHz or 21.0-21.45MHz, the EK-1B will display TX at middle of LCD. Will show “NO” when out of the Ham bands.
