- Page 1 LevelOne GSW -0801T 8Port 10/100/1000TGigabit Ethernet Switch User’s Guide...
- Page 3 FCC Warning This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
- Page 4 P/N:6012-8000T01 Rev.A1-01...
-
Page 5: Table Of Contents
ABLE OF ONTENTS ABOUT THIS GUIDE..................1 ......................1 ERMS ’ ..............1 VERVIEW OF THIS UIDE INTRODUCTION ....................2 ..............2 IGABIT THERNET ECHNOLOGY ................4 WITCHING ECHNOLOGY ....................... 5 EATURES UNPACKING AND SETUP ................. 7 ....................7 NPACKING ...................... -
Page 7: About This Guide
BOUT UIDE This user’s guide tells you how to install your LevelOne GSW-0801T 8Port 10/100/1000T Gigabit Ethernet Switch, how to connect it to your Gigabit Ethernet network. Terms For simplicity, this documentation uses the terms “Switch” (first letter upper case) to refer to the LevelOne GSW-0801T 8Port 10/100/1000T Gigabit Ethernet Switch, and “switch”... -
Page 8: Introduction
Specifications. Lists technical specifications of the Switch. NTRODUCTION This section describes the features of the LevelOne GSW-0801T 8Port 10/100/1000T Gigabit Ethernet Switch, as well as giving some background information about Gigabit Ethernet and switching technology. Gigabit Ethernet Technology Gigabit Ethernet is an extension of IEEE 802.3... -
Page 9: Switching Technology
applications that generate more traffic. Upgrading key components, such as your backbone and servers to Gigabit Ethernet greatly improve network response times as well as significantly speed up the traffic between your subnets. Gigabit Ethernet supports video conferencing, complex imaging, and similar data-intensive applications. Likewise, since data transfers occur 10 times faster than Fast Ethernet, servers outfitted with Gigabit Ethernet NIC’s are able to perform 10 times the... -
Page 10: Features
Gigabit Ethernet Switch acts as a high-speed selective bridge between the individual segments. Traffic that needs to go from one segment to another is automatically forwarded by the LevelOne GSW-0801T 8Port 10/100/1000T Gigabit Ethernet Switch, without interfering with any other segments. This allows the... - Page 11 where traffic on the network and the number of users increase continuously. u 8 10/100/1000T NWay Auto-MDIX Ethernet ports u Full/half duplex transfer mode each 1000BASE-T ports u Wire speed reception and transmission u Store-and-Forward switching method u Integrated address Look-Up Engine, supports 8K absolute MAC addresses u Supports 512K Bytes data buffer per device u Extensive front-panel diagnostic LEDs...
-
Page 13: Unpacking And Setup
If any item is found missing or damaged, please contact your local reseller for replacement. Setup The setup of the LevelOne GSW-0801T 8Port 10/100/1000T Gigabit Ethernet Switch can be performed using the following steps: ♦ The surface must support at least 5 kg. -
Page 14: Desktop Or Shelf Installation
Switch. Do not place heavy objects on the Switch. Desktop or Shelf Installation When installing the LevelOne GSW-0801T 8Port 10/100/1000T Gigabit Ethernet Switch on a desktop or shelf, the rubber feet included with the device must be first attached. -
Page 15: Rack Installation
Rack Installation The LevelOne GSW-0801T 8Port 10/100/1000T Gigabit Ethernet Switch can be mounted in an EIA standard size, 19-inch rack, which can be placed in a wiring closet with other equipment. To install, attach the mounting brackets on the switch’s front panel (one on each side) and secure them with the screws provided. -
Page 17: Identifying External Components

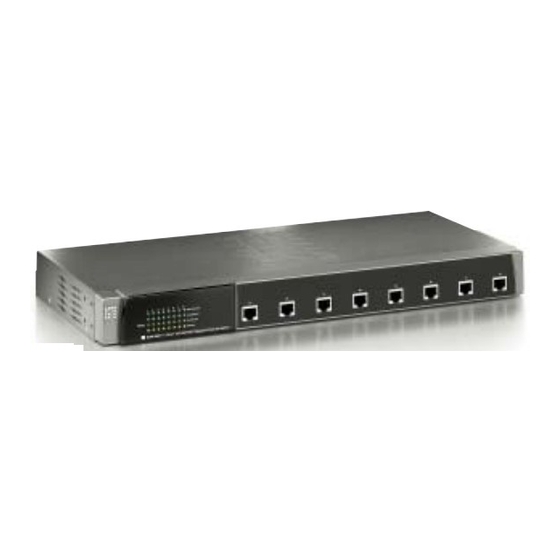

LED indicators of the Switch Front Panel The front panel of the Switch consists of 8 1000BASE- T ports and LED indicators. LevelOne GSW-0801T 8Port 10/100/1000T Gigabit Ethernet Switch Front Panel ♦ Eight Gigabit Ethernet ports of 10/100/1000Mbps Auto-Negotiation interface. -
Page 18: Led Indicators
Rear panel view of the Switch ♦ AC Power Connector This is a three-pronged connector that supports the power cord. Plug in the female connector of the provided power cord into this connector, and the male into a power outlet. Supported input voltages range from 100 ~ 240 VAC at 50 ~ 60 Hz. - Page 19 Per unit: ♦ Power This indicator lights green when the Switch is receiving power, otherwise, it is off. Per port: ♦ 1000M LINK/ACT. These LED indicators are lighted up when there is a secure connection (or link) to 1000Mbps Gigabit Ethernet device at any of the ports.
- Page 20 mode. Otherwise, there are blinking when collisions are occurring on there respective ports.
-
Page 21: Technical Specifications
ECHNICAL PECIFICATIONS General Standards: IEEE 802.3ab 1000BASE-T IEEE 802.3u 100BASE-TX IEEE 820.3 10BASE-T Protocol: CSMA/CD Data Transfer Ethernet: 10Mbps (Half-duplex) Rate: 20Mbps (Full-duplex) Fast 100Mbp (Half-duplex) Ethernet: 200Mbp (Full-duplex) Gigabit 1000Mb (Half-duplex) Ethernet: 2000Mb (Full-duplex) Topology: Star Network Ethernet: 2-pair UTP Cat. 3,4,5, Cables: EIA/TIA-568 100-ohm screened twisted-pair... - Page 22 General Fast 2-pair UTP Cat. 5, Ethernet: EIA/TIA-568 100-ohm screened twisted-pair (STP) Gigabit 4-pair UTP Cat. 5, Ethernet: EIA/TIA-568 100-ohm screened twisted-pair (STP) Number of Eight (8) 10/100/1000Mbps Auto- Ports: Negotiation ports Physical and Environmental 100 – 240 VAC Universal, AC inputs: 50/60 Hz Power Consumption: 40 watts maximum...
- Page 23 Physical and Environmental 440 mm x 200 mm x 44 mm Dimensions: (1U), 19 inch rack-mount width FCC Class A, CE Mark Class EMI: A, VCCI Class A Safety: cUL, TUV/GS Performance Transmission Method: Store-and-forward RAM Buffer: 512K Bytes per device Filtering Address Table: 8K MAC address per...
