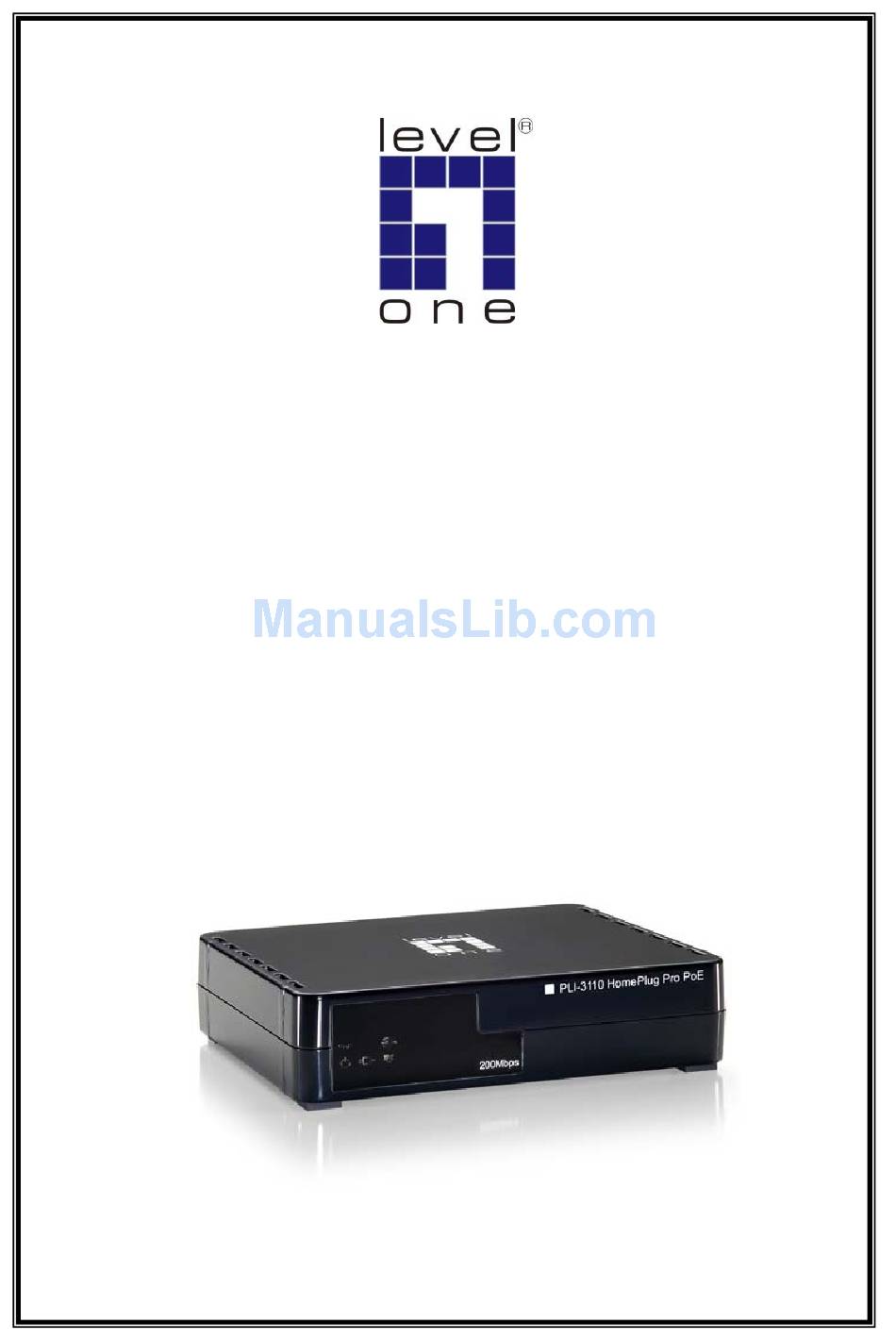

- Page 1 PLI-3110 HomePlug Pro PoE User Manual Ver. 1.0.0...
- Page 2 Safety This equipment has been tested and found to comply with Part 15 Class B of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference (2) This device must accept any interference received, including interference that may cause undesired operation. This equipment is in compliance with the requirements of the following regulations: CE Mark, 89/336/EEC RoHS This product is RoHS compliant.
-
Page 3: Table Of Contents
Table of Contents HOMEPLUG POWERLINE ...........................3 ..............................3 NTRODUCTION ..............................3 SAGE IAGRAM ............................3 HYSICAL ETAILS ................................5 ETUP SECURITY BUTTON ............................6 ..........................6 REATING A NEW SECURITY NETWORK AB (A B)..............6 DDING DAPTER TO EXISTING ETWORK DAPTER DAPTER A & C N D & E BDE..7 EMOVING DAPTER... -
Page 4: Homeplug Powerline
Power over Ethernet feature that can supply 48v DC power to another device (i.e. IP cameras, Set top boxes, Modems, Routers or Access Points) eliminating the need for an additional power supply. * Strongly recommend Windows Vista/2000/XP for utility configuration 1.2 Usage Diagram PLI-3110 1.3 Physical Details... - Page 5 Front Panel LEDs Power On - Normal operation. Off - No power HomePlug On - The Powerline network is active. This means that at least one other HomePlug de- vice was detected. Off - Powerline network is not available - no other HomePlug devices were detected. Flashing - Data is being transmitted or received via the Powerline network.
-
Page 6: Setup
Rear Panel The rear panel contains an AC Power Cord Plug (100-240V), a Security Button, a recessed Reset Button, and an Ethernet Port for 48V-802.3af PoE enabled device. Reset Button on the side Power Port Security Button Ethernet Port PoE Port 1.4 Setup Plug and Play Installation for Homes: HomePlug is plug and play device;... -
Page 7: Security Button
2 Security Button This section describes how to use Security button for configuration in the following situations: Creating a new security network Two unassociated Adapters (Adapter A and Adapter B) are forming a new network—Network AB The procedure is as follows: 1. -
Page 8: Removing Adapter Bfrom Adaptera & C Network And Join With Adapterd & Eto Become Network Bde
The procedure is as follows: 8. Press and hold the security button on Adapter C for 10 seconds and release it when device LED auto reboots. The password to Adapter C becomes “Random_C” 9. Press and hold the security button on Adapter A for 2 seconds. The Power LED on Adapter A starts to flash. 10. -
Page 9: Operation
3 Operation Operation is completely automatic, and no user intervention is required. If your HomePlug devices have difficulty communicating with each other, check the following: • Try plugging the unit into an adjacent plug. • Use a pin and hold the Reset Button down for two seconds on each unit you are trying to connect. The unit lights should flash. -
Page 10: Specification
4 Specification Powerline Standards HomePlug AV PHY Rate Up to 200 Mbps Modulation 1024/256/64/16/8 QAM, QPSK, BPSK, ROBO Carrier Modulation Forward Error Correction Turbo Codes Protocol TDMA, CSMA/CA Security 128-bit AES Encryption 1 * Power LEDs 1 * HomePlug 1 * Ethernet 1* 802.3af PoE Ethernet Port Ethernet Interface 4 * RJ45 LAN Port...
