  • Page 1: User Manual

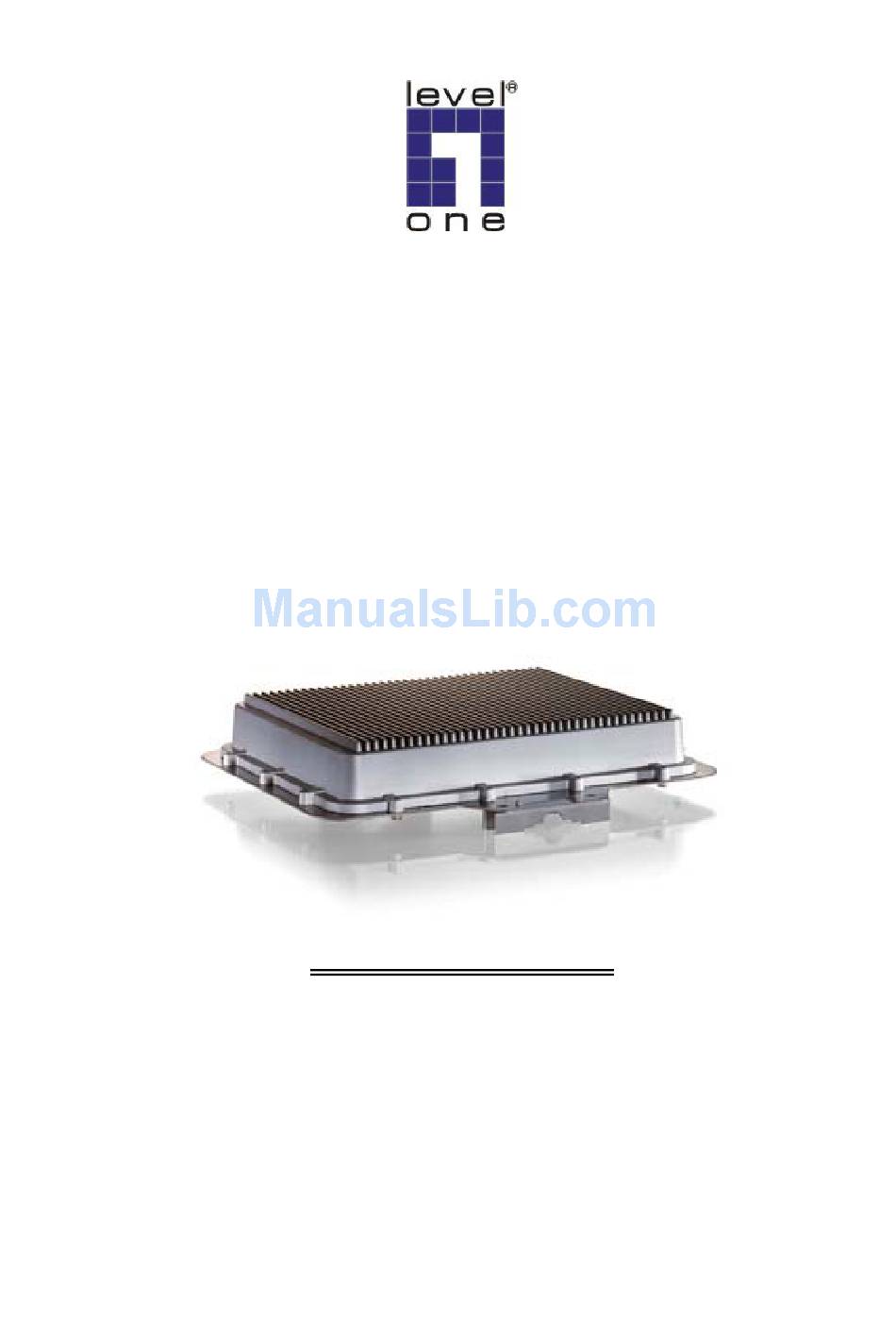

    LevelOne WBA-4000 11a Outdoor Wireless Bridge USER MANUAL Ver:1.00-0509...
  • Page 2 FCC Notice: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
  • Page 3 With 802.11a feature, the wireless solution is for building-to-building usage. The WBA-4000 provides the data rate up to 108 Mbps and is suitable for enterprises, campus or off-site locations that require LAN or Internet access without the availability of wired networks to extend network coverage.

  • Page 4: Table Of Contents

    Table of contents TABLE OF CONTENTS ................................4 ................................6 ANUAL ONVENTIONS 1. INTRODUCTION .................................8 2. WBA-4000 HARDWARE FEATURE ..........................9 2.1 H ...............................9 ARDWARE UTLINE 2.2 H ............................9 ARDWARE RCHITECTURE 2.3 P ................................10 RODUCT EATURE 2.4 P ............................10 RODUCT AND CCESSORIES 2.5 P ..........................10...
  • Page 5 APPENDIX B ...................................49 ................................49 ROUBLESHOOTING...

  • Page 6: Manual Conventions

    MANUAL CONVENTIONS Bold Bold type within paragraph text indicates commands, file names, directory names, paths, output, or returned values. Italic Within commands, italics indicate a variable that the user must specify. Titles of manuals or other published documents are also set in italics.
  • Page 7 Disclaimer The LevelOne WBA-4000 Wireless Outdoor Bridge User Manual COPYRIGHT ©1999 Digital Data Communications Asia Co., Ltd. ALL RIGHTS RESERVED Any part of this publication could not be copied, stored in a retrieval system, or translated into any language or computer language in any form or any means, electronic, magnetic, chemical, manual or otherwise, without the prior written permission of Digital Data Communications Asia Co., Ltd.

  • Page 8: Introduction

    The WBA-4000 provides the point to point and point to multi-point connection. One of the WBA-4000 advanced feature is over the data rate section. The bridge has two data rate modes, one is the IEEE 802.11a, and another is the IEEE802.11a turbo. About the bridge under the IEEE 802.11a mode, it supports the data rate from 6 Mbps to 54 Mbps.

  • Page 9: Wba-4000 Hardware Feature

    2. WBA-4000 Hardware FEATURE 2.1 HARDWARE OUTLINE Picture1 Bridge outlook 2.2 HARDWARE ARCHITECTURE Picture2 Bridge Architecture...

  • Page 10: Product Feature

    Ethernet port connector for extra protection. If moisture enters the connector, it may cause degradation in performance or even a complete failure of the link. 2.4 PRODUCT AND ACCESSORIES WBA-4000 Master/Slave Bridge CAT5/25M-RJ45 ( PoE Cable ) C. PoE Injector D. N-Type to N-Type RG-400/1.5M cable...

  • Page 11: Grounding Screw

    Using RJ-45 cable to connect the Data in port of the PoE Injector to the Switch/HUB. Using RJ-45 cable to connect the Data out port of the PoE Injector to the PoE Device (Such as WBA-4000). Plug in the power cord of the PoE Injector to the wall power plug.
  • Page 12 Note: Due to the frequency regulation in Europe, Turbo A spectrums are reserved and not available for the general users. Using Turbo A(108Mbps) illegally might be against the local regulation. Please follow the local regulation when using WBA-4000. LevelOne is not responsible for improper individual usage.

  • Page 13: Ip Discover Utility

    LevelOne WBA-4000 Outdoor Bridge on the same sub-network segment. Although the WBA-4000 has a default IP address, this utility is useful when the network administrator forgets the modified IP address. Before using this utility, please make sure the system firewall installed in your PC is “Disable”.
  • Page 14 5. Click on the “Scan” button for the utility to start searching. And the utility will display the IP address and MAC address of the available WBA-4000. Now you can use a web browser to access the management interface with the IP address.

  • Page 15: Bridge Configuration

    4. Bridge Configuration 4.1 The Master/Slave side PC Network Configuration 4.1.1 How To Start Network Configuration on your PC 1) Click the “Start Menu” and choose “Setting”. 2) Click “Network and Dial-up Connection”. 3) Right-click on the “Local Area Connection” and select “properties”. Picture 7 Start Menu Picture 8 Network Connection...

  • Page 16: Master Bridge Side Pc Tcp/ Ip Setup

    4.1.2 Master Bridge side PC TCP/ IP Setup 4.1.2.1 Master side PC TCP/IP Setup 1) After clicking on “Property”, you will see the diagram as below. 2) Mark the “Internet Protocol (TCP/IP)” and click the “Properties” Picture 9 Local Area Connection Properties 4.1.2.2 Master Bridge Side PC IP/ MAC Address Set up 1) The “IP address (ex.
  • Page 17 Picture 10 Internet Protocol Properties 4.1.2.3 Slave Side PC Configuration and TCP/IP set up 1) The Slave side Configuration is the same as the Master side. 2) Please assign a different IP address of the slave side. Other settings remain the same.

  • Page 18: Master/Slave Bridge Configuration

    4.1.3 MASTER/SLAVE BRIDGE CONFIGURATION 4.1.3.1 How To Start 1) Launch a Web Browser. 2) Key in the default IP Address as URL (Default IP Address is http:// 192.168.1.20). 3) “Enter Network Password” Diagram will appear. 4) Enter “Username: Admin”(Case Sensitive). 5) Enter ”Password: 5up”...
  • Page 19 4.1.3.2 Master/Slave Bridge Configuration 4.1.3.2.1 After Login You will access by clicking the “Management” from left side menu. Picture 12 Statistic Page 4.1.3.2.2 Region/Country Set up 1) Click the “Management” on the left side of the Web page. 2) Select the belonging “Country ” from the list. The RF regulations vary upon the countries.
  • Page 20 5) SNMP Community. Community name is a string for administrator to read the SNMP MIB from external SNMP manager. The default SNMP community name is “public”. You may change the community name here as your plan. 6) Trap Receiver Trap is the notification of certain events generated by SNMP agent to send to the network management server.
  • Page 21 4.1.3.2.3 Master/ Slave side IP/ MAC Address first time Set up 1) “ Bridge Default IP Address (192.168.1.20) ” After the logging ,you could change the IP Address. 2) Subnet Mast “Default value (255.255.255.0)” 3) Keep the “Default Gateway” as “Blank” or set it up if you have your own “Default Gateway”.
  • Page 22 Picture 15 Auto Get IP This will get the IP address from DHCP server if you have DHCP server enable in your subnet. 4.1.3.2.4 Configure 5GHz Bridge Setting Radio Setting 1) Bridge Type If the application is for “Point to Point” architecture, the setting should be one Slave and one Master on each side.
  • Page 23 Using Turbo A(108Mbps) illegally might be against the local regulation. Please follow the local regulation when using WBA-4000. LevelOne is not responsible for improper individual usage. In order to maximize the system performance, it is recommended to follow the following suggestions.
  • Page 24 Table 1 5GHz RX Sensitivity VS. Data Rate 7) Transmit Power Available selection of Transmit Power are Full, Half (-3dB), Quarter (-6dB), Eighth (-9dB), and Minimum. Select the appropriate Transmit Power according to the distance and environmental factor between Bridges. 8) RTS/CTS Threshold In order to prevent the transmission collision in a hidden nodes environment, Bridge may send a RTS (Request To Send) before transmitting the data frame and expect to receive a CTS (Clear To Send) from...
  • Page 25 Picture 16 5GHz Bridge (Master) Picture 17 5GHz Bridge (Slave)

  • Page 26: 4Security Setting - Master / Slave Side Share/Unique Key

    4.1.4 SECURITY SETTING – MASTER / SLAVE SIDE SHARE/UNIQUE KEY To have a secured data transmission, Outdoor WLAN Product provides 3 encryption mechanisms. 64-bit WEP (10 Hex. Digits/ 5 ASCII Keys) 128-bit WEP (26 Hex. Digits/ 13 ASCII Keys) 152-bit WEP (32 Hex. Digits/ 16 ASCII Keys) The key entry method can be in either “Hexadecimal”...

  • Page 27: Master Side

    Master Side A. Share Key – Hexadecimal / ASCII Mode When Share Key is set, all Master-Slave links use this key to encrypt except the link(s) specified with Unique Key. To setup Share Key, please input “Entry Method” and “Encryption Type” first. B.
  • Page 28 Picture 20 Master/Slave Bridges Connections Master & Slave Bridge joining condition 1) Local Bridge This line shows the IP and MAC address of local Bridge as well as its state. 2) Remote Bridge This line shows the IP and MAC address of remote Bridge as well as its state.
  • Page 29 Picture 21 Statistics Values on this page are automatically refreshed every minute. You may manually press the refresh button of browser to get the updated data more frequent. As RF signal strength is more critical for outdoor deployment purpose, RSSI bar is refreshed every 2 seconds.
  • Page 30 Field Description RSSI Displays the strength of the received signal in dBm (the remote bridge received signal strenth). Refresh every 2 seconds. RSSI of ACK Displays the strength of the far end received signals in dBm (the local bridge received signal strength). Refresh every 2 seconds. MSDU Maximum service data unit.

  • Page 31: Firmware And License Upgrade

    4.2 Firmware and License Upgrade 1) Firmware upgrade is for you to upgrade your bridges when the upgrade files release. 2) “ Browse” the firmware files to be uploaded from the Disc in the Picture 20 then click “ Upload and Update ” when you finish. 3) When uploading successful, users need to reboot the system by clicking “...

  • Page 32: Rebooting

    4.3 Rebooting 1) Click and “ Reboot “ either “ each time “or “ reboot “ the system once when you finish all kinds of settings. Picture 23 Rebooting Window When all the parameters have been setup according to the network configuration and requirements, click “Update”...

  • Page 33: Snmp

    5. SNMP The system provides SNMP v2c read capability for the network management. SNMP interface can be reached both locally and remotely. The supported standard MIB including System of MIB-II Interfaces of MIB-II Address Translation of MIB-II IP of MIB-II ICMP of MIB-II SNMP of MIB-II Besides, the enterprise MIB is also provided especially for Bridge management.
  • Page 34 operating. .1.2.1 dot11DisassociateReason .1.2.2 dot11DisassociateStation string .1.2.3 dot11DeauthenticateReason .1.2.4 dot11DeauthenticateStation string .1.2.5 dot11AuthenticateFailStatus .1.2.6 dot11AuthenticateFailStation string .1.3.1 dot11PrivacyInvoked When this attribute is true, it shall indicate that the IEEE 802.11 WEP mechanism is used for transmitting frames of type Data. .1.3.2 dot11WEPDefaultKeyID This attribute shall indicate the...
  • Page 35 2.2.5 dot11MaxTxMSDULifetime This value is 512 2.2.6 dot11MaxRxLifetime This value is 512 2.3.1 dot11TxFragmentCount counter =Tx MSDU on statistics web 2.3.2 dot11MulticastTxFrameCount counter =web’s Multicast-Broadcast on statistics web 2.3.3 dot11FailedCount counter =TxError on statistics web 2.3.4 dot11RetryCount counter =Excessive Retries on statistics 2.3.5 dot11MultipleRetryCount counter...
  • Page 36 3.2.2 dot11CurrentTxRate Current transmission rate in the unit of Kbps. 3.2.3 dot11TurboModeEnabled enable (1); disable (0)

  • Page 37: Planning Linkage

    6. Planning Linkage 6.1 Site Survey You need to consider the following operating and environmental conditions when performing a site survey: Data rates – The sensitivity and the radio range are inversely proportional to data rates. Therefore, the maximum radio range is achieved at the lowest workable data rate, and a decrease in receiver threshold sensitivity occurs as the radio data rate increases.

  • Page 38: Data Rate

    6.2 Data Rate According to the following table, you will have the idea about the relation between antenna dBi , connecting distance and Data rate. for example, the bridge with 17dBi antenna could operate well under 6 Mbps data rate within 17 KM. This table is for reference only.
  • Page 39 Picture 24 Line-of-Sight (LOS) If there is any obstacle in the radio path, it may still be a radio link but the quality and the signal strength will be affected. Ensuring the maximum clearance from objects on a path is important to locate the antennas and the height.

  • Page 40: Antenna Height

    6.3.1 Antenna Height The reliable wireless linkage usually depends on the both sides’ antennas for a clear radio line of sight. The minimum height is up to the link distance, obstacles that may be in the path, topology of the terrain, and the curvature of the earth (for links over 2 miles).

  • Page 41: Antenna Types

    For example, the wireless link between the building A and the building B is located three miles (4.8 km) away. There is a tree-covered hill in the mid-way. From the table above, it can be seen that for a three-mile link and the object clearance required at the mid-point is 5.4 m (17.6 ft).

  • Page 42: Weather Affection

    6.3.4 Weather Affection The weather plays one of major matters to the antenna performance for the wireless communication. The raining day, the lightning day, the cloudy day, or the windy day will make a quite big impact to the both side antennas over the communication results.

  • Page 43: Field Installation

    Please, inspect the equipment to see if there is any shipping damage. If it does have any damage, you could contact the sales representative for repair or replacement. 7.1.2 Product LevelOne WBA-4000 Outdoor Bridge x 1 7.1.3 Accessories Outdoor Mounting Kits x 1(Set) DC Injector /RJ45 (RJ45DI-48) x 1 CAT5/25M-RJ45 ( PoE Cable ) x 1 AC/DC Power Supply (DC48V 1.37A) x 1...

  • Page 44: Installing The Odu

    7.2 Installing the ODU 7.2.1 Required Tools: Screw Driver Sealing Type 7.2.2 Installed Accessories: Antenna Mounting Set x 1 Grounding rod x 1 Waterproof Seal Ethernet Cable x 1 7.2.3 How to Mount the Bridge: You could follow the steps to mount the bridge as below: Picture 27 Mount the ODU on the Mask or the Pole...

  • Page 45: Connecting The Cable

    7.2.4 Connecting the cable An Ethernet cable connects to the power over Ethernet (P.O.E.) output port. Another Ethernet cable (RJ – 45; the crossover cable) connects to the Power over Ethernet (P.O.E.) input port. The POE AC Adapter supplies the AC power to the bridge system.

  • Page 46: Basic Antenna Alignment

    7.2.6 Basic Antenna Alignment When you use directional antennas to communicate between two bridges, you must manually align the antennas for proper bridge operation. Directional antennas have greatly reduced radiation angles. The radiation angle is approximately 25 to 30 degrees, and the parabolic dish antennas radiation angle is approximately 12.5 degrees.

  • Page 47: Glossary

    Appendix A GLOSSARY Auto Reboot Specifies the enable/disable of auto reboot function for auto recovery. Authentication Type Specifies open-system or shared key. Authentication / Deauthentication Always 0 for Bridge Bridge Distance Enter the value (1 – 28 KM) to specify the distance between a pair of bridges. Cipher Advertised Specifies current state of advertised cipher negotiations, AES and/or WEP, and None.
  • Page 48 RSSI AUX Output Specifies the activation of RSSI AUX Output for antenna alignment. RTS/CTS Threshold Specifies the value of the RTS/CTS threshold. Enter a value between 256 and 2346. State Current state of Bridge. Transmit Power Specifies the level of transmit power. Choose the value of the transmit power from the dropdown menu.

  • Page 49: Troubleshooting

    Appendix B TROUBLESHOOTING The bridges could not associate appropriately with each other: To make sure the cables is connected properly. To check the POE adapter’s green light is on or not. To check the both Frequency settings are on the same channel or not. To check the data rate is matched with one and another through the statistic RSSI display or the advance setting inside the Frequency setting.
