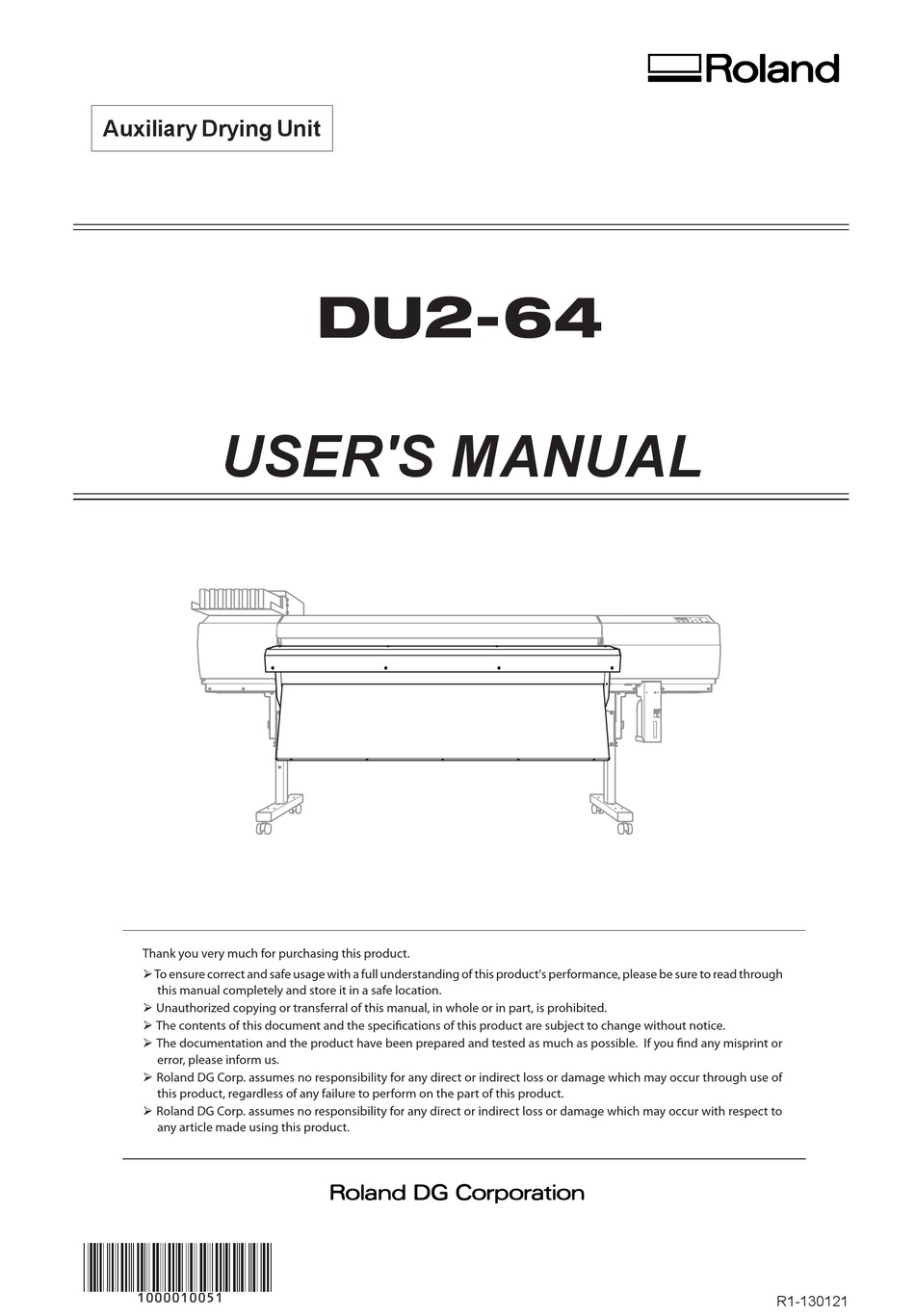

User Manual
Auxiliary Drying Unit
USER'S MANUAL
Thank you very much for purchasing this product.
To ensure correct and safe usage with a full understanding of this product's performance, please be sure to read through
this manual completely and store it in a safe location.
Unauthorized copying or transferral of this manual, in whole or in part, is prohibited.
The contents of this document and the specifications of this product are subject to change without notice.
The documentation and the product have been prepared and tested as much as possible. If you find any misprint or
error, please inform us.
Roland DG Corp. assumes no responsibility for any direct or indirect loss or damage which may occur through use of
this product, regardless of any failure to perform on the part of this product.
Roland DG Corp. assumes no responsibility for any direct or indirect loss or damage which may occur with respect to
any article made using this product.
R1-130121
Advertisement
Table of Contents
Related Manuals for Roland DU2-64
Summary of Contents for Roland DU2-64
- Page 1 The documentation and the product have been prepared and tested as much as possible. If you find any misprint or error, please inform us. Roland DG Corp. assumes no responsibility for any direct or indirect loss or damage which may occur through use of this product, regardless of any failure to perform on the part of this product.
-
Page 2: For Canada
1-6-4 Shinmiyakoda, Kita-ku, Hamamatsu-shi, Shizuoka-ken, 431-2103 JAPAN The authorized representative in the EU: Roland DG EMEA, S.L. Parc Tecnologic del Valles C/ Ceramistes, 6 08290 Cerdanyola del Valles / Barcelona Spain Roland DG Corp. has licensed the MMP technology from the TPL Group. -
Page 3: Table Of Contents
If a Message Appears ................................30 3-2 Locations of the Power Rating and Serial Number Labels ..........31 3-3 Specifications ........................32 Company names and product names are trademarks or registered trademarks of their respective holders. Copyright © 2013 Roland DG Corporation http://www.rolanddg.com/... -
Page 4: To Ensure Safe Use
To Ensure Safe Use Improper handling or operation of this machine may result in injury or damage to property. Points which must be observed to prevent such injury or damage are described as follows. About WARNING and CAUTION Notices Used for instructions intended to alert the user to the risk of death or severe injury should WARNING the unit be used improperly. - Page 5 To Ensure Safe Use Incorrect operation may cause injury WARNING CAUTION Be sure to follow the operation proce- Conduct operations in a clean, brightly lit dures described in this documentation. location. Never allow anyone unfamiliar with the Working in a location that is dark or cluttered usage or handling of the machine to may lead to an accident, such as becoming touch it.
- Page 6 Never touch with wet hands. fire, electrical shock, or injury. Contact your Doing so may result in fire or electrical shock. authorized Roland DG Corp. dealer. Never allow any foreign object to get in- When the machine will be out of use for a side.
- Page 7 To Ensure Safe Use Important notes about the power cord, plug, and electrical outlet Never place any object on top or subject to Never allow to get wet. damage. Never bend or twist with undue force. Never make hot. Never pull with undue force. Dust may cause fire.
-
Page 8: Warning Labels
To Ensure Safe Use Danger of fire or burns WARNING Caution: high temperatures Areas such as the dryer become hot. Exercise caution to avoid fire or burns. Warning Labels Warning labels are affixed to make areas of danger immediately clear. The meanings of these labels are as follows. -
Page 9: Pour Utiliser En Toute Sécurité
Pour utiliser en toute sécurité La manipulation ou l'utilisation inadéquates de cet appareil peuvent causer des blessures ou des dommages matériels. Les précautions à prendre pour prévenir les blessures ou les dommages sont décrites ci-dessous. Avis sur les avertissements Utilisé pour avertir l'utilisateur d'un risque de décès ou de blessure grave en cas de ATTENTION mauvaise utilisation de l'appareil. - Page 10 Pour utiliser en toute sécurité L'utilisation incorrecte peut causer des blessures ATTENTION PRUDENCE S'assurer de suivre les procédures Utiliser l'appareil dans un endroit propre d'utilisation décrites dans la documenta- et bien éclairé. tion. Ne jamais permettre à quiconque Travailler dans un endroit sombre ou en- ne connaît pas le fonctionnement ou la combré...
- Page 11 Ne jamais utiliser si un composant est le représentant Roland DG Corp. autorisé. endommagé. Continuer à utiliser l'appareil peut causer un Ne jamais placer d'objet inflammable à...
- Page 12 Pour utiliser en toute sécurité Remarques importantes à propos du câble d'alimentation, de la fiche et de la prise électrique Ne jamais déposer aucun objet sur le câble, sur la fiche Ne jamais laisser l'eau toucher le câble, la ou sur la prise car cela risque de les endommager. fiche ou la prise.
- Page 13 Pour utiliser en toute sécurité Risque d'incendie ou de brûlures ATTENTION Attention : températures élevées. Les zones comme le séchoir chauffent. Faire preuve de prudence pour éviter un incendie ou des brûlures. Vignettes d'avertissement Des vignettes d'avertissement sont apposées pour qu'il soit facile de repérer les zones dangereuses. La signification des vignettes est donnée ci-dessous.
-
Page 15: Chapter 1 Introduction
Chapter 1 Introduction... -
Page 16: About This Machine
1-1 About This Machine What's the DU2-64? This is an auxiliary drying unit that combines a drying-heater unit and a blower-fan unit. It uses the drying-heater unit to dry the ink by warming the media after printing. It also uses the blower-fan unit to dry the ink by blowing air against the surface of the media. -
Page 17: Part Names And Functions
1-2 Part Names and Functions Blower-fan unit Power connector This blows moving air onto the surface of This supplies power to the drying- the media after printing. heater unit. Drying-heater unit This warms the media after printing. Power switch This is the power switch for the Drying-heater unit cable drying heater unit. -
Page 18: Included Items
1-3 Included Items Drying-heater unit (1) Blower-fan unit (1) Arms (one for right and left each) Stays (one for right and left each) Bolts (14) Washers (4) Bushing (1) Cable clamps (4) Hexagonal wrench (1) Power cord (1) User's Manual (this document) (1) Chapter 1 Introduction... -
Page 19: Installing On The Printer
1-4 Installing on the Printer Step1: Install the Drying-heater Unit WARNING Perform this task with all power switches left switched off. Otherwise sudden movement of the machine may cause injury. Attach the arms. Referring to the figure below, assemble the right and left arms. After tightening the bolts temporarily, tighten them completely (Two bolts for each arm). - Page 20 1-4 Installing on the Printer Attach the arms with the bolts removed in step Arm (left) Arm (right) Attach the bushing and cable clamp to the arm (right). Cable clamp Install the drying-heater unit. Place the drying-heater unit on the arms. Place it oriented as shown in the figure.
- Page 21 1-4 Installing on the Printer Temporarily secure the drying-heater unit. Temporarily attach the drying-heater unit to the arms with two bolts each on the right and left sides. Washer Drying- Washer heater unit Secure the drying-heater unit in place. Raise the drying-heater unit to eliminate the gap between the unit and the printer, and completely tighten the four bolts.
-
Page 22: Step2: Install The Blower-Fan Unit
1-4 Installing on the Printer Step2: Install the Blower-fan Unit WARNING Perform this task with all power switches left switched off. Otherwise sudden movement of the machine may cause injury. Remove the cover L and R. Push the part of figure below until it engage with an audible click. Lift the cover in the direction of , and then pull it out in the direction of ... - Page 23 1-4 Installing on the Printer Install the blower-fan unit. Blower-fan unit Engage with the tab Blower-fan unit Blower-fan unit Peel off the tape Attach the bushing to the arm (right). Bushing Chapter 1 Introduction...
- Page 24 1-4 Installing on the Printer Attach two cable clamps at the location shown in the figure. Cable clamps Drain bottle Attach the cover L and R. Hung cover on the hook of the printer and pull down in direction.
-
Page 25: Connecting The Cables
1-5 Connecting the Cables Connecting the Cables WARNING Connect to an electrical outlet that complies with this machine's ratings (for voltage,frequency, and current). Incorrect voltage or insufficient current may cause fire or electrical shock. WARNING Connect to ground. This can prevent fire or electrical shock due to current leakage in the event of malfunction. -
Page 27: Chapter 2 Operation
Chapter 2 Operation... -
Page 28: Operation Of The Drying-Heater Unit
2-1 Operation of the Drying-heater Unit What to Do First When you've finished installing this unit, set the printer's [OPTION DRYER] menu item to "ENABLE." Unless this is set to "EN- ABLE," turning on the power switch for the drying-heater unit doesn't make the temperature of the drying-heater unit rise. Procedure ... -
Page 29: Making The Temperature Setting For The Drying-Heater Unit
2-1 Operation of the Drying-heater Unit Making the Temperature Setting for the Drying-heater Unit The temperature of the drying-heater unit is always set at the same temperature as the dryer on the printer. To change the temperature of the drying-heater unit, adjust the temperature of the dryer on the printer. Procedure ... -
Page 30: Operation Of The Blower-Fan
2-2 Operation of the Blower-fan Switching the Blower-fan Unit On The blower-fan unit has no power switch. You switch the blower-fan unit on and off via settings made on the printer. When you're using the blower-fan unit, set the printer's [BLOWER FAN] menu item to "ENABLE." When this menu item is set to "ENABLE,"... -
Page 31: Chapter 3 Appendix
Chapter 3 Appendix... -
Page 32: What To Do If
3-1 What to Do If The Drying-heater Unit Doesn't Get Hot Is the power cord connected? Connect the power cord for the drying-heater unit securely. P. 23, "Connecting the Cables" Is the drying-heater unit cable connected? Connect the drying-heater unit cable to the printer unit. ... -
Page 33: Locations Of The Power Rating And Serial Number Labels
3-2 Locations of the Power Rating and Serial Number Labels Power Rating Use an electrical outlet that meets the require- ments for voltage, frequency, and amperage given here. Serial Number This is required when you seek maintenance, servicing, or support. Never peel off the label or let it get dirty. -
Page 34: Specifications
3-3 Specifications DU2-64 Dryer unit Heating type (with blower fan), setting range for the preset temperature: 30 to 55°C (86 to 130°F) (*1) Power requirements AC 100 to 120V ±10%, 5.5 A, 50/60 Hz or AC 220 to 240 V ±10%, 3 A, 50/60 Hz... - Page 35 For China 产品中有毒有害物质或元素的名称及含量 有毒有害物质或元素 部件名称 六价铬 多溴联苯 多溴二苯醚 铅(Pb) 汞(Hg) 镉(Cd) (Cr(Ⅵ)) (PBB) (PBDE) 印刷电路板 × ○ × ○ ○ ○ 头部 × ○ ○ ○ ○ ○ 壳体、底架 × ○ ○ ○ ○ ○ 电源 × ○ × ○ ○...
